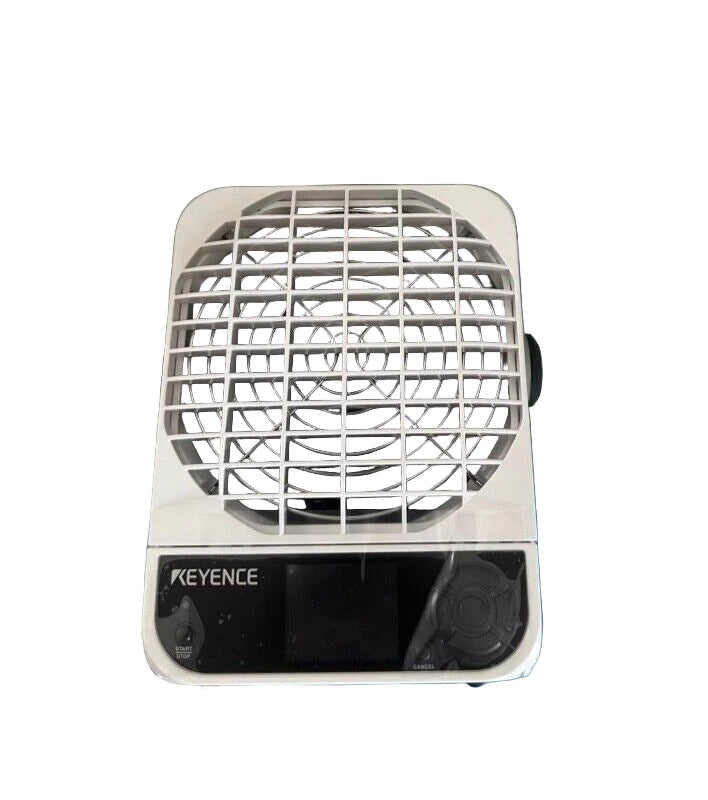

SJ-F700 | Keyence Multi-Sensor Static Eliminator Blower, ±8200V, ±1V Balance, Ethernet
- Regular price
- $1,329.00
- Sale price
- $1,329.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: SJ-F700
Description
The Keyence SJ-F700 is a high-performance multi-sensor ionizing blower designed to eliminate electrostatic charge with exceptional speed and accuracy. Featuring automatic probe cleaning and self-maintenance functionality, the SJ-F700 ensures long-term, maintenance-free operation for ESD prevention and contamination control in precision environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | HVAC |
| Part Number | SJ-F700 |
| Subcategory | Blower |
| Type | Static Eliminator, Main Blower Unit |
| Voltage Application Method | Variable DC |
| Applied Voltage | ±8200 V max |
| Ion Balance Control | Multi-I.C.C. |
| Ion Balance Accuracy | ±1 V (with SJ-FB01) / ±3 V (without SJ-FB01) |
| Static Elimination Time | Approx. 0.5 s |
| Installation Distance | 50 mm or more |
| Maximum Air Volume | 4.8 m³/min |
| Ozone Density | 0.005 ppm or less |
| Saved Data | Ion level, charge level, air flow, unit status, temperature, humidity |
| Sampling Cycle | 0.1 s |
| Event Log | Errors, warnings, threshold exceedance, cleaning operation, power ON/OFF |
| Inputs | IN1: Static elimination stop / IN2: Clean input / IN3: Event trigger |
| Outputs | 3 (OUT1–OUT3) Photo MOS relay outputs, 26.4 VDC, 50 mA max |
| Assignable Output Functions | Alarm, error, clean operation, charge/ion balance threshold, system alerts |
| Ethernet Standard | 100BASE-TX (RJ-45, 8-pin connector) |
| Power Supply | 24 VDC ±10% or dedicated AC adapter (OP-88766/OP-88768) |
| Current Consumption | 1.6 A or less (normal), 0.18 A (ECO mode typical) |
| Ambient Temperature Range | 0 to +40 °C (32 to 104 °F) |
| Relative Humidity Range | 35 to 85% RH (no condensation) |
| Overvoltage Category | I |
| Pollution Degree | 2 |
| Material | Case: PC/ABS; Guards: SUS; Mounting components: PBT, LCP, polyurethane insulation |
| Enclosure Rating | IP40 (front ventilation protection) |
| Data Interface | Ethernet and internal memory (hourly logging) |
| Special Functions | Auto-clean, feedback sensor input, ECO mode |
| Weight | Approx. 1.2 kg (2.65 lb) |
Information About SJ-F700
The SJ-F700 belongs to Keyence’s advanced SJ-F Series, offering fully automated static elimination systems that maintain optimal ion balance without manual calibration. Utilizing a variable DC system with Multi-I.C.C. ion control, it achieves ion balance within ±1 V when paired with the SJ-FB01 feedback sensor. With a static elimination time of approximately 0.5 seconds and an effective range up to 3 meters, the SJ-F700 is ideal for electronics manufacturing, cleanrooms, and sensitive assembly lines. Built with a PC/ABS housing and equipped with automatic self-cleaning brushes, it combines high airflow, precision control, and durability for reliable industrial ESD management.
Key Features:
- Variable DC Ionization System: Provides precise charge neutralization for consistent static elimination.
- Ultra-Fast Elimination: Removes static in as little as 0.5 seconds for high-throughput processes.
- High Ion Balance Accuracy: Maintains ±1 V balance with Multi-I.C.C. control and feedback sensor.
- Automated Maintenance: Built-in brush cleaning eliminates manual probe maintenance.
- Wide Elimination Range: Effective up to 3 m with maximum air volume of 4.8 m³/min.
- Low Ozone Emission: Generates 0.005 ppm or less for cleanroom compatibility.
- Comprehensive Monitoring: Logs ion level, charge level, air flow, and humidity with hourly data saving.
- Multiple Outputs: 3 configurable Photo MOS relay outputs for alarm and process control.
- Ethernet Connectivity: 100BASE-TX RJ45 interface for remote monitoring and control.
- Robust Design: PC/ABS housing with SUS ventilation guards, rated for 0–40 °C operation.
The SJ-F700 delivers the reliability and precision required for ESD protection and static control in electronics, optics, and semiconductor manufacturing.
