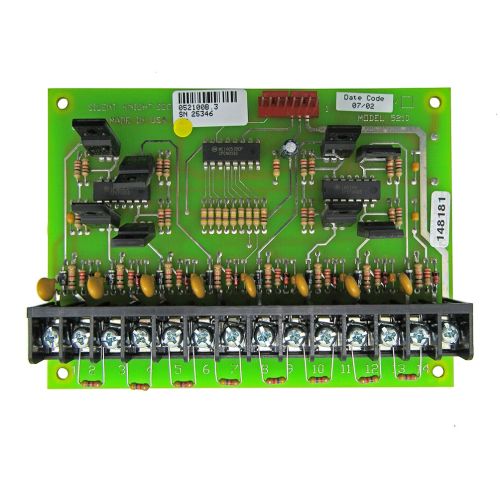

SK-5210 | Silent Knight Zone Expander Module for SK-5207 Fire Alarm Control Panel
- Regular price
- $1,760.00
- Sale price
- $1,760.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: SK-5210
Description
The Silent Knight SK-5210 is a zone expander module designed to double the detection capacity of the SK-5207 fire alarm control panel. It provides eight additional Class B (Style B) initiating device circuits, allowing integration of both 2-wire and 4-wire smoke detectors for enhanced system flexibility and coverage.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Silent Knight |
| Category | Fire Alarm Equipment |
| Part Number | SK-5210 |
| Subcategory | Zone Expander Module |
| Type | Conventional Zone Expansion |
| Compatible Panel | Silent Knight SK-5207 Fire Alarm Control Panel |
| Number of Additional Zones | 8 Class B (Style B) zones |
| Expanded System Capacity | Increases total zones from 8 to 16 |
| Device Compatibility | 2-wire and 4-wire smoke detectors, pull stations, and heat detectors |
| Circuit Supervision | Fully supervised initiating circuits |
| Wiring Configuration | Class B (Style B) |
| Mounting Type | Installs within SK-5207 cabinet or remote accessory enclosure |
| Connection Type | Plug-in ribbon cable or terminal interface |
| Operating Voltage | 24VDC nominal (from control panel) |
| Material | High-reliability PCB with protective coating |
| Enclosure | Compact modular board design |
| Indicators | LED zone status indicators (if applicable) |
| Dimensions | 10 × 7 × 3 in |
| Weight | 1 lb |
| Certifications | UL Listed, NFPA 72 compliant |
| Application | Fire alarm system zone expansion |
Information About SK-5210
The SK-5210 zone expander from Silent Knight increases the input capacity of the SK-5207 conventional fire alarm control panel by providing eight additional Class B detection zones. This optional module enables system scalability for larger installations requiring more detection points, such as multi-room commercial or institutional buildings. It supports both 2-wire and 4-wire smoke detectors as well as manual pull stations, ensuring versatile device compatibility. The SK-5210 integrates seamlessly into the SK-5207 control system through a direct interface connection, maintaining full supervision and alarm reporting functionality. With simple installation and durable design, this module provides a cost-effective solution for expanding existing fire alarm infrastructure.
Key Features
- Eight Additional Detection Zones: Expands SK-5207 capacity from 8 to 16 Class B initiating circuits.
- Flexible Device Compatibility: Supports both 2-wire and 4-wire smoke detectors and manual pull stations.
- Class B Circuit Design: Provides supervised input wiring for reliable fault and alarm detection.
- Seamless Integration: Connects directly to the SK-5207 panel for plug-and-play system expansion.
- Compact and Durable Construction: Lightweight modular board fits neatly into control enclosures.
- Fully Supervised Circuits: Monitors open and short faults across all initiating device loops.
- Efficient Installation: Designed for easy wiring and quick configuration within existing systems.
- UL and NFPA Certified: Complies with recognized fire protection standards for safety and performance.
The SK-5210 delivers the reliability and precision required for scalable fire detection systems, enabling convenient expansion of conventional fire alarm installations.
