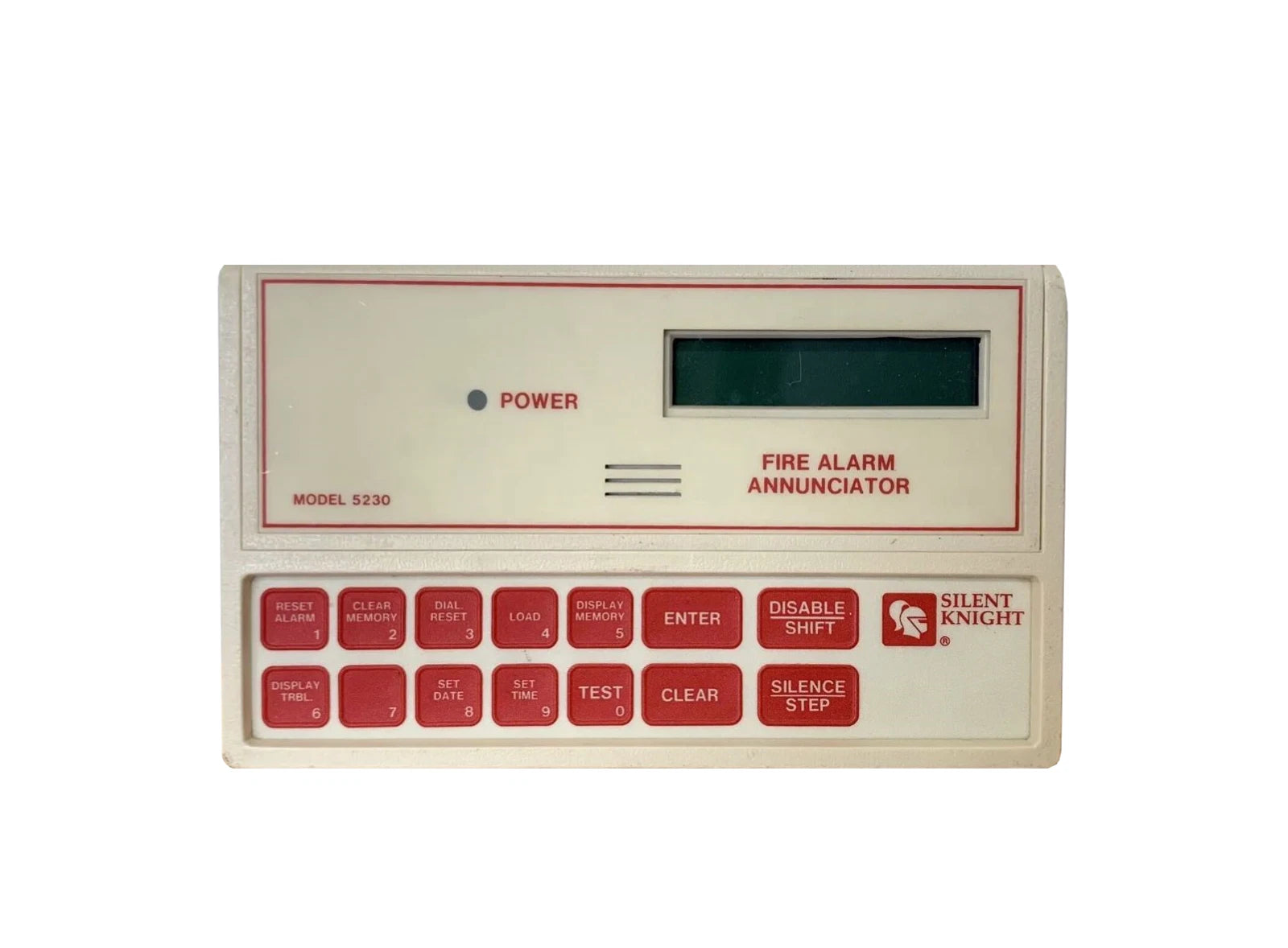

SK-5230 | Silent Knight 5230 LCD Remote Annunciator
- Regular price
- $684.00
- Sale price
- $684.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: SK-5230
Description
The Silent Knight SK-5499 is a fire alarm remote annunciator features a 2-line, 16-character LCD display designed to clearly communicate system conditions. It uses LEDs and LCD indicators to show alarm, trouble, supervisory, and system status events. The unit is suitable for remote monitoring and user control in fire alarm systems.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Silent Knight |
| Category |
Fire Alarm Systems
|
| Part Number | SK-5230 |
| Subcategory | Remote Annunciators |
| Display Type | 2-Line, 16-Character LCD |
| Status Indicators | Alarm, Trouble, Supervisory, System (LED + LCD) |
| Operating Voltage | 12 VDC |
| Standby Current | 25 mA |
| Alarm Current | 40 mA |
| Operating Temperature | 32° to 120°F (0° to 49°C) |
| Mounting Type | Single/Dual Gang Electrical Box |
| Wiring Range | 12–18 AWG |
| Max Wiring Distance | 1000 ft (305 m) |
| Dimensions (inches) | 6.9” W x 4.25” H x 1” D |
| Dimensions (cm) | 14.46 W x 10.79 H x 2.54 D |
| Remote Functions | Programming, Alarm Reset, Alarm/Trouble Silence |
| Module Addressing | 4-position DIP Switch |
| Included Accessories | 130294 Quick Connect Cable |
| Weight | 0.6 lbs |
Information About SK-5230
The SK-5230 is a remote annunciator from Silent Knight by Honeywell, engineered to display real-time fire alarm system data. It is part of the Silent Knight fire control ecosystem and is individually supervised by the fire alarm control panel (FACP). This model supports wiring from 12 to 18 AWG, with installation distances of up to 1000 feet, offering flexibility in large-scale buildings. The SK-5230 enables remote system programming, alarm reset, and silence functions via a clearly arranged interface.
Key Features:
- LCD Display: Equipped with a 2-line, 16-character LCD for real-time system communication
- Status Indication: Shows alarm, trouble, supervisory, and system status using LEDs and LCD indicators
- FACP Supervision: Each annunciator is individually supervised by the fire alarm control panel
- Flexible Wiring: Supports 12 to 18 AWG wiring for up to 1000 ft installation distance
- Remote Functions: Allows remote programming, alarm reset, and silencing of alarm/trouble signals
- Compact Form Factor: Low-profile design suitable for wall-mounted applications
- Universal Mounting: Compatible with single or dual gang electrical boxes using rear mounting plate
- Low Power Consumption: Requires only 25 mA in standby and 40 mA in alarm state
- Wide Temperature Range: Operates between 32°F to 120°F (0°C to 49°C)
- Modular Design: Each unit includes DIP switch configuration for individual module IDs
The SK-5230 delivers the reliability and precision required for safe and effective fire system annunciation in commercial and industrial environments.
