SK-5235 | Silent Knight 5235 LCD Remote Annunciator
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: SK-5235
Description
The SK-5235 is a remote annunciator designed to interface with the SK-5208 Fire Alarm Control Panel. It enables full system control and monitoring from a remote location, with real-time display of alarm, trouble, and supervisory conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Silent Knight |
| Category |
Fire Safety
|
| Part Number | SK-5235 |
| Subcategory | Fire Alarm Control |
| Display | 2-line, 16-character LCD |
| LED Indicators | Alarm, Trouble, Supervisory, System Status |
| Voltage Requirement | 24 VDC |
| Current Draw (Standby) | 30 mA |
| Current Draw (Alarm) | 50 mA |
| Max Wiring Distance | 1500 ft (457.2 m) |
| Dimensions (W x H x D) | 7.19" x 5" x 1.13" (18.26 x 12.7 x 2.86 cm) |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Compatible Control Panel | SK-5208 |
| Number Supported | Up to 6 per SK-5208 |
| Operator Key | OPR key included |
| Certifications | UL Listed, MEA 429-92-E, CSFM 7165-0559:137 |
| Weight | 1.00 lbs (0.45 kg) |
Information About SK-5235

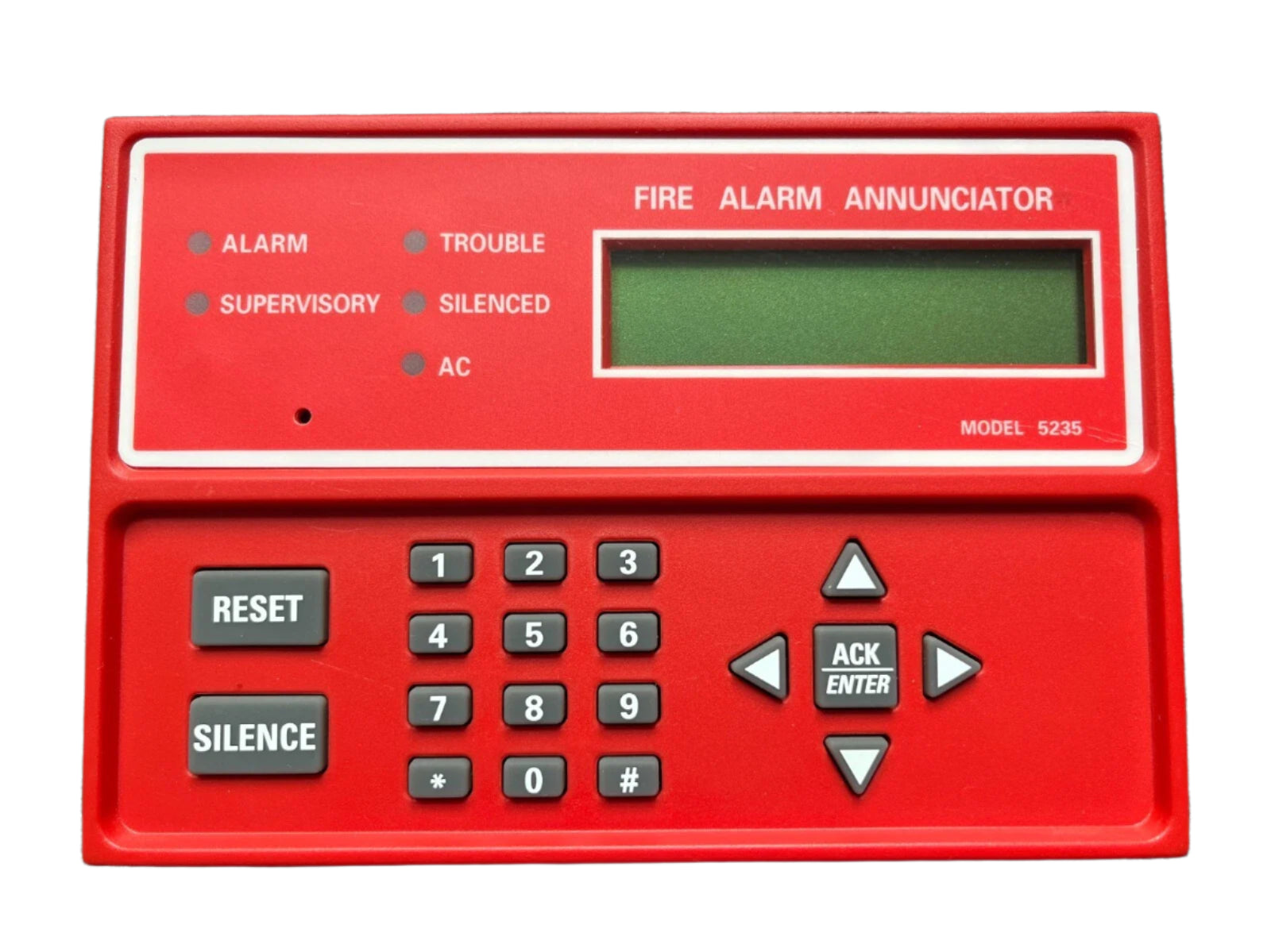

The SK-5235 is a compact remote annunciator compatible with the Silent Knight SK-5208 fire alarm control panel. It features a 2-line, 16-character LCD screen and multiple LED indicators to display real-time system status including alarms and troubles. Each unit is supervised by the main panel and supports full programming and user operations via the included OPR key. The SK-5208 can accommodate up to six SK-5235 units, each installable up to 1500 feet away from the control panel.
Key Features:
- LCD Display: 2-line, 16-character screen for clear event visualization and messages.
- Multi-Condition Indication: Displays Alarm, Trouble, Supervisory, and System Status via LEDs and LCD.
- Supervised Operation: Each annunciator is individually monitored by the SK-5208 FACP.
- Remote Installation: Supports wiring distances up to 1500 feet for flexible placement.
- Full System Control: Allows user operations and system programming identical to onboard interface.
- Multiple Units Support: Up to six annunciators can be connected to a single SK-5208 panel.
- Dedicated Operator Key: Ships with OPR key for user-level interactions (does not open panel door).
- Matched Design: Mimics the appearance and function of the control panel’s built-in annunciator.
The SK-5235 delivers the essential remote access and monitoring capabilities required for effective fire alarm management.
