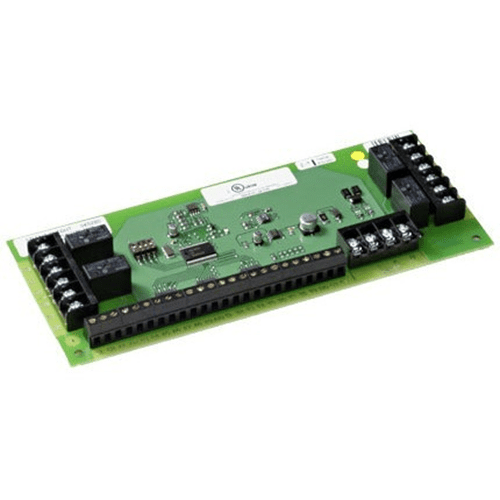

SK-5280 | Silent Knight Status Display Module SBUS Communication
- Regular price
- $992.00
- Sale price
- $992.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: SK-5280
Description
The Silent Knight SK-5280 is a status display module designed to provide remote annunciation of alarm, trouble, and supervisory conditions for up to ten zones. Communicating via the SBUS interface, it enables clear zone-by-zone indication and control functions for enhanced fire system visibility and monitoring.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Silent Knight |
| Category | Fire Alarm Equipment |
| Part Number | SK-5280 |
| Subcategory | Status Display Module |
| Type | Remote annunciator interface |
| Number of Zones Supported | 10 zones |
| Outputs Provided | Alarm and trouble outputs per zone |
| Communication Interface | 4-wire SBUS connection |
| Remote Mounting Distance | Up to 1,500 ft. from main FACP |
| Compatible Panels | Silent Knight addressable fire alarm control panels (e.g., SK-5208, 5820XL, etc.) |
| Functions | Zone annunciation and status monitoring |
| Indicators | Zone-based alarm, trouble, and supervisory LEDs |
| Power Source | Powered via SBUS from control panel |
| Mounting Type | Wall or cabinet installation |
| Supervision | Fully supervised communication and power |
| Construction | Compact, durable PCB assembly |
| Wiring Requirements | 4-conductor (power + data) SBUS cable |
| Operating Voltage | 24VDC nominal |
| Operating Distance | Up to 1,500 ft. via SBUS loop |
| Certifications | UL Listed, NFPA 72 compliant |
| Weight | 0.70 lbs |
Information About SK-5280
The SK-5280 status display module extends the monitoring and control capabilities of Silent Knight fire alarm systems by providing detailed annunciation for up to ten zones. It features dedicated alarm and trouble outputs for each monitored zone, allowing integration with graphical annunciators or custom display panels. The module communicates with the fire alarm control panel over a supervised 4-wire SBUS connection, ensuring reliable operation and data integrity. Designed for remote mounting up to 1,500 feet away, the SK-5280 is ideal for use in large buildings, where clear and distributed visual indication of system status is required. Its compact design and straightforward installation make it an efficient choice for professional fire system configurations.
Key Features
- Ten-Zone Status Annunciation: Provides clear alarm, trouble, and supervisory indication for up to ten fire zones.
- SBUS Communication: Uses a 4-wire connection for reliable data and power transmission from the control panel.
- Remote Mounting Capability: Can be installed up to 1,500 ft. from the main fire alarm control panel.
- Dual Outputs per Zone: Offers separate alarm and trouble outputs for integration with graphical annunciator systems.
- Full Supervision: Monitors communication and power integrity for fault-free system operation.
- Compact and Lightweight Design: Simplifies installation in control rooms, annunciator panels, or remote enclosures.
- Flexible Integration: Works seamlessly with Silent Knight addressable fire alarm control panels.
- UL and NFPA Certified: Meets fire protection industry standards for performance and safety.
The SK-5280 delivers the reliability and precision required for accurate remote annunciation and monitoring, ensuring clear and organized fire system status display across multiple zones.
