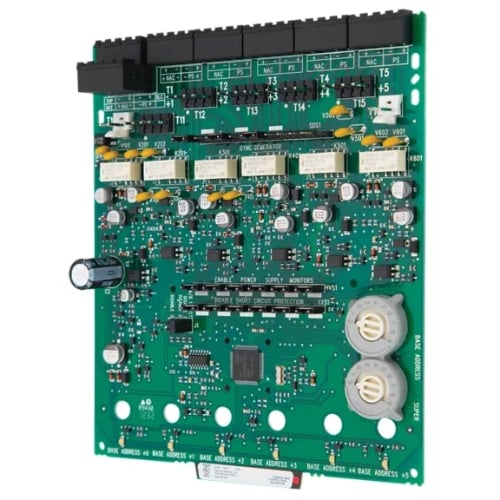

SK-CONTROL-6 | Honeywell Silent Knight Six-Circuit Supervised Control Module
- Regular price
- $388.00
- Sale price
- $388.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: SK-CONTROL-6
Description
The Honeywell Silent Knight SK-CONTROL-6 is a six-circuit supervised control module designed for use with IntelliKnight® series fire alarm control panels. It provides reliable supervision and control of notification appliance circuits (NACs) that require external power supplies or amplifiers, such as horns, strobes, and bells. The SK-CONTROL-6 supports both Class B (Style Y) and Class A (Style Z) wiring, making it an ideal solution for expanding fire alarm notification capabilities in commercial, institutional, and industrial environments.
Technical Specifications
| Condition | New |
| Brand | Silent Knight by Honeywell |
| Manufacturer | Honeywell International, Inc. |
| Manufacturer Part Number | SK-CONTROL-6 |
| Product Type | Six-Circuit Supervised Control Module |
| Application | Fire Alarm Control Systems |
| Compatibility | IntelliKnight Series FACPs (5700, 5808, 5820XL, 5820XL-EVS, 6700, 6820, 6820EVS, SK-6808) |
| Circuits Supported | 6 Supervised Control Outputs |
| Wiring Styles | Class B (Style Y), Class A (Style Z) |
| Communication Interface | RS-485 (Signaling Line Circuit - SLC) |
| Power Source | External Power Supply (Relay Isolated from SLC) |
| Short-Circuit Protection | Built-in per circuit |
| Indicators | Individual LEDs for each circuit |
| Terminal Type | Plug-in, 12–18 AWG |
| Mounting Options | Two modules per IDP-ACB cabinet |
| Addressing Method | Rotary address switches |
| Certifications | UL Listed, NFPA 72 Compliant |
| Country of Origin | Mexico |
| Dimensions | 6.80" × 5.80" × 1.25" |
| Weight | 0.2 lbs |
Information About SK-CONTROL-6
The SK-CONTROL-6 six-circuit supervised control module is engineered to provide supervised monitoring of wiring to load devices operating from external power sources. When activated by the FACP, it disconnects supervision and connects the external power supply across the load, ensuring clear system response verification. Each circuit includes short-circuit protection and individual LED indicators, while unused modules can be easily disabled for flexibility. Designed for seamless integration with Silent Knight IntelliKnight panels, this module enhances overall system performance and safety compliance with NFPA 72 standards.
Key Features
- Six Independent Output Circuits: Adds notification circuits where additional outputs are required.
- Class A/B Wiring Support: Compatible with Style Y and Style Z configurations.
- Individual Status LEDs: Provides clear indication for each module’s operating condition.
- Removable Terminal Blocks: Accepts 12–18 AWG wire for quick installation and maintenance.
- Short-Circuit Protection: Safeguards connected external power supplies and devices.
- Rotary Address Switches: Simplifies configuration and addressing during setup.
- Modular Mounting: Two modules fit in the IDP-ACB cabinet; unused modules can be disabled.
- Relay Isolation: Ensures SLC integrity by isolating external power supply faults.
UL Listed and NFPA 72 Compliant: Meets industry standards for life safety systems.
