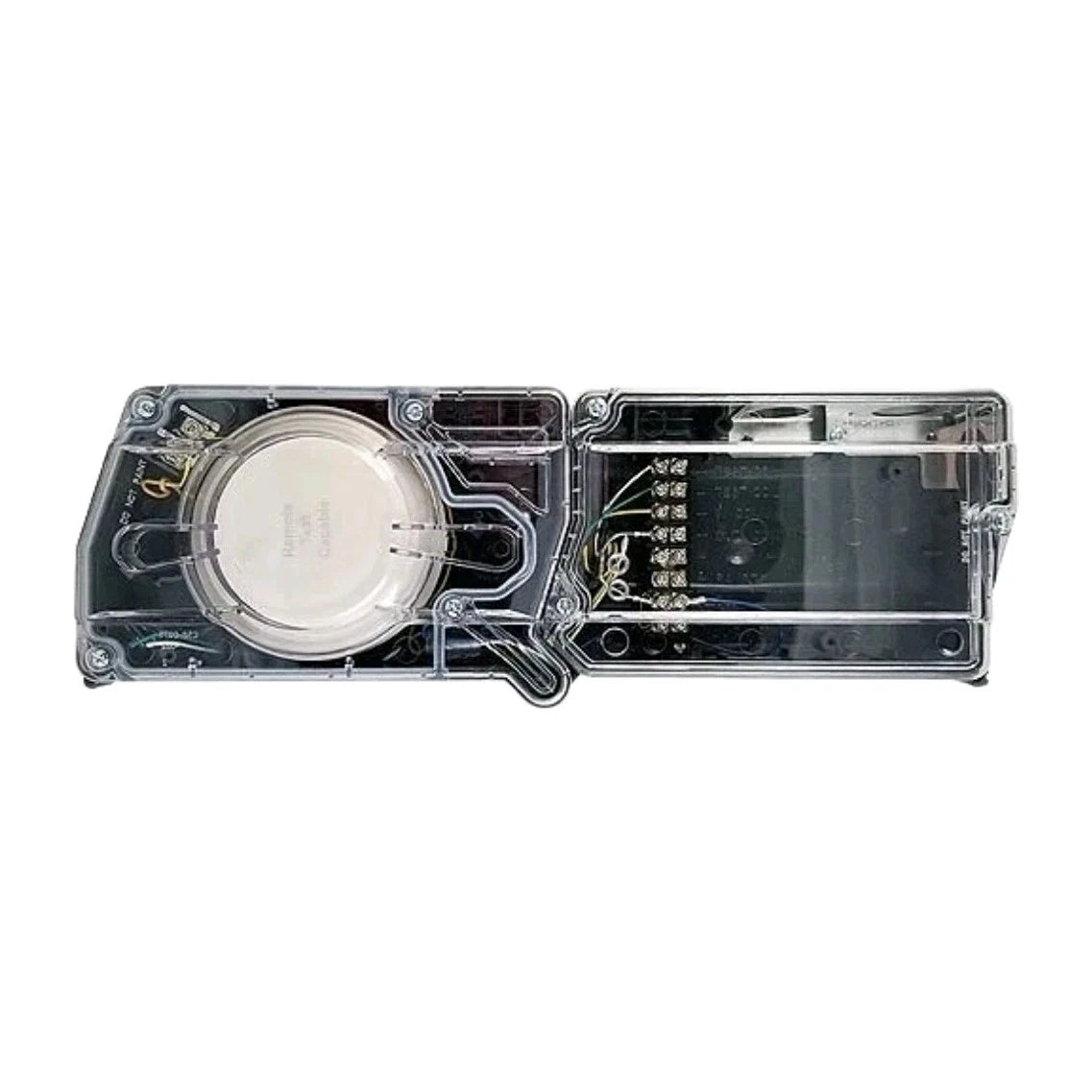

SK-DUCT-W | Silent Knight Photoelectric Low-Flow Duct Smoke Detector with Remote Test
- Regular price
- $322.00
- Sale price
- $322.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SK-DUCT-W
Description
The Silent Knight SK-DUCT-W Photoelectric Duct Smoke Detector is a low-flow duct-mounted detector designed to monitor air handling systems for the presence of smoke. Featuring a clear cover and remote test capability, it enables visual inspection and convenient functional verification. Operating on 15–32 VDC, it provides reliable smoke detection in HVAC ducts for commercial fire alarm systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Silent Knight |
| Category | Fire Alarm Systems |
| Part Number | SK-DUCT-W |
| Subcategory | Duct Smoke Detectors |
| Detection Type | Photoelectric |
| Operating Voltage Range | 15 – 32 VDC |
| Standby Current | 200 µA @ 24 VDC |
| Maximum Alarm Current | 6.2 mA @ 24 VDC |
| Operating Temperature | –4° to 158°F (–20° to 70°C); 32° to 120°F (0° to 49°C) with module installed |
| Storage Temperature | –22° to 158°F (–30° to 70°C) |
| Humidity | 0% to 93% RH Non-Condensing |
| Air Velocity Range | 100 – 4000 ft./min. (0.5 – 20.3 m/sec.) |
| Rectangular Footprint Dimensions | 14.38 in L × 5 in W × 2.5 in D (37 × 12.7 × 6.36 cm) |
| Square Footprint Dimensions | 7.75 in L × 9 in W × 2.5 in D (19.7 × 22.9 × 6.35 cm) |
| Weight | 1.8 lb (0.82 kg) |
Information About SK-DUCT-W
The SK-DUCT-W is a photoelectric duct smoke detector engineered for installation in HVAC ductwork to detect smoke transported by air movement. It is designed to operate across a wide air velocity range from 100 to 4000 feet per minute, making it suitable for various airflow conditions. The unit supports a remote test function, allowing maintenance personnel to perform testing without direct access to the detector housing. Built for compatibility with Silent Knight addressable modules, it operates within a regulated 15–32 VDC range and meets environmental requirements for commercial fire alarm applications.
Key Features:
- Photoelectric Smoke Detection: Uses optical sensing technology for early smoke identification.
- Low-Flow Capability: Operates in air velocities from 100 to 4000 ft./min.
- Clear Cover Design: Allows visual inspection of chamber and status indicators.
- Remote Test Function: Supports remote functional testing for maintenance efficiency.
- Wide Voltage Range: Operates from 15 to 32 VDC.
- Low Standby Current: 200 µA @ 24 VDC with LED blink enabled.
- LED Alarm Indication: Maximum alarm current of 6.2 mA @ 24 VDC.
- Flexible Footprint Options: Available in rectangular and square mounting configurations.
The SK-DUCT-W delivers the reliability and precision required for HVAC duct smoke detection in commercial fire alarm systems.
