SK-FSL | Silent Knight Single-Mode Fiber Card for SK-NIC Network Interface
- Regular price
- $299.00
- Sale price
- $299.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: SK-FSL
Description

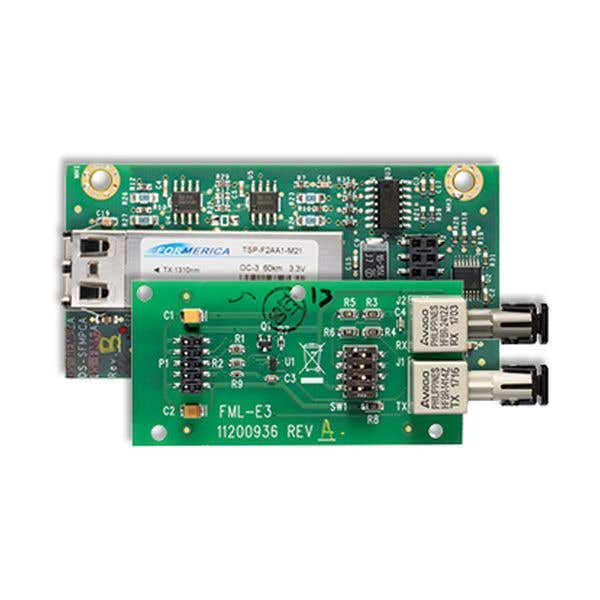

The Silent Knight SK-FSL Fiber Card, Single Mode, is a plug-in communication module designed to link multiple fire alarm control panels via fiber-optic cable. It connects directly to the SK-NIC network interface card, enabling high-speed single-mode data transmission for large, networked fire alarm systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Silent Knight |
| Category | Fire Alarm Components |
| Part Number | SK-FSL |
| Subcategory | Fiber-Optic Communication Module |
| Communication Type | Single-Mode Fiber |
| Connector Type | LC |
| Fiber Size | 9/125 μm |
| Maximum Attenuation | 30 dB |
| Mounting Type | Plug-In Card (for SK-NIC) |
| Supported Protocol | ARCNET |
| Compatibility | SK-NIC, 6820, 6820EVS, 6808, 6700 Panels |
| Network Capacity | Up to 17 Panels per Network |
| Temperature Range | 32°F to 120°F (0°C to 49°C) |
| Humidity Range | 0%–93% RH (non-condensing) |
| Dimensions | 4.0” H × 2.5” W × 0.25” D (10.16 × 6.35 × 0.635 cm) |
| Compliance | ANSI/UL 864, 9th Edition |
| Weight | 6.4 oz (181.4 g) |
Information About SK-FSL
The SK-FSL is a single-mode fiber loop module designed for use with the Honeywell Silent Knight SK-NIC Network Interface Card to create reliable fiber-optic communication links between control panels. It supports 9/125 μm single-mode fiber with LC-style connectors and can tolerate up to 30 dB of signal attenuation, ensuring excellent transmission quality even across long distances. The module works as either a transmitter or receiver in an ARCNET communication circuit, allowing full-duplex data flow across fire alarm networks. Designed to integrate with Silent Knight 6000 Series panels, including the 6820, 6820EVS, 6808, and 6700 models, the SK-FSL enables multi-site communication and simplified system management.
Key Features:
- Single-Mode Fiber Compatibility: Designed for 9/125 μm single-mode fiber cables, offering reliable, interference-free data transmission over extended distances.
- High Signal Attenuation Tolerance: Maintains consistent performance with up to 30 dB attenuation, making it suitable for complex installations and long cable runs.
- LC-Style Connectors: Utilizes compact and secure LC connectors for easy fiber termination and strong signal integrity.
- Plug-In Installation Design: Simple, tool-free installation directly into the SK-NIC slot allows quick upgrades or replacements without rewiring.
- Dual Fiber Loop Operation: Supports up to two fiber loop cards per SK-NIC, enabling network redundancy and flexible configuration between single- and multimode modules.
- ARCNET Network Communication: Enables high-speed ARCNET data transfer for fast and reliable synchronization between fire alarm panels.
- UL 864, 9th Edition Certified: Complies with ANSI/UL standards for safety and performance in fire alarm applications.
- Environmental Resilience: Engineered to function in temperatures from 32°F to 120°F and up to 93% relative humidity, ensuring stable performance in demanding environments.
The SK-FSL delivers the reliability and precision required for long-range, high-performance fiber-optic communication in networked fire alarm systems.
