SK-RELAY-6 | Honeywell Silent Knight 6-Relay Addressable Control Module for FACPs
- Regular price
- $684.00
- Sale price
- $684.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SK-RELAY-6
Description

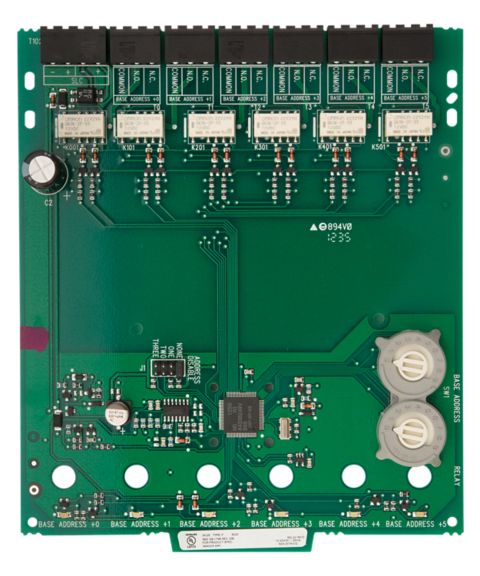

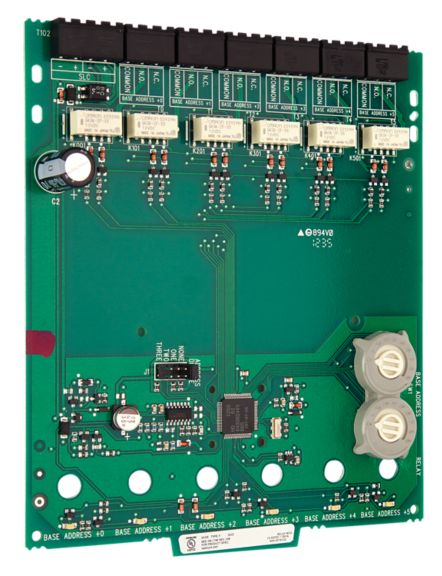

The Honeywell Silent Knight SK-RELAY-6 is an intelligent addressable relay module featuring six Form C relays for use with Silent Knight Series fire alarm control panels (FACPs). Each relay can be independently controlled by the panel through code commands, providing flexible contact switching for multiple applications. Designed for reliability and versatility, the SK-RELAY-6 supports both normally open and normally closed circuits in supervised fire alarm systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Silent Knight by Honeywell |
| Category | Fire Alarm Systems |
| Part Number | SK-RELAY-6 |
| Subcategory | Addressable Relay Modules |
| Relay Type | Six Form C contacts |
| Power Source | From SLC loop |
| SLC Connection | Two-wire, polarity insensitive |
| Addressing | Rotary decimal switches |
| LED Indicators | One per relay (status display) |
| Relay Ratings | 2.0 A @ 30 VDC resistive, 0.5 A @ 30 VAC resistive |
| Wiring Terminals | Removable 12–18 AWG plug-in terminal blocks |
| Mounting Options | Dual module mounting in IDP-ACB cabinet |
| Disable Feature | Up to three relays can be disabled |
| Supervision | No supervision for relay contacts |
| Certifications | UL Listed |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Dimensions | 9 × 13 × 2.5 in |
| Country of Origin | United States |
| Weight | 1 lb |
Information About SK-RELAY-6
The SK-RELAY-6 is a six-relay addressable module developed for Honeywell Silent Knight intelligent FACPs. Each relay operates via a unique SLC (Signaling Line Circuit) loop address, allowing precise activation based on system programming. The module includes rotary address switches for quick setup, individual LED indicators for each relay, and removable plug-in terminal blocks for streamlined wiring. With the ability to disable up to three unused modules, the SK-RELAY-6 provides efficient system configuration and dependable control for auxiliary functions or equipment interfacing.
Key Features
- Six Form C Relays: Enables multiple independent control points for flexible applications.
- Addressable Configuration: Each relay is assigned a unique SLC loop address for precise operation.
- Flexible Relay Mapping: Relays can be programmed to specific zone conditions or system events.
- LED Status Indicators: Individual LEDs provide clear visual status for each relay contact.
- Quick Installation: Rotary address switches simplify setup and configuration.
- Modular Design: Supports dual mounting in IDP-ACB cabinet for space efficiency.
- Disable Unused Modules: Up to three relays can be disabled if not required.
- Durable Connectivity: Includes removable 12–18 AWG plug-in terminal blocks for easy maintenance.
The SK-RELAY-6 delivers the reliability and precision required for advanced fire alarm and building control integration.
