Skyjack 123477 24V DC Electric Hydraulic Pump Motor for Aerial Lift Equipment
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 123477
Description

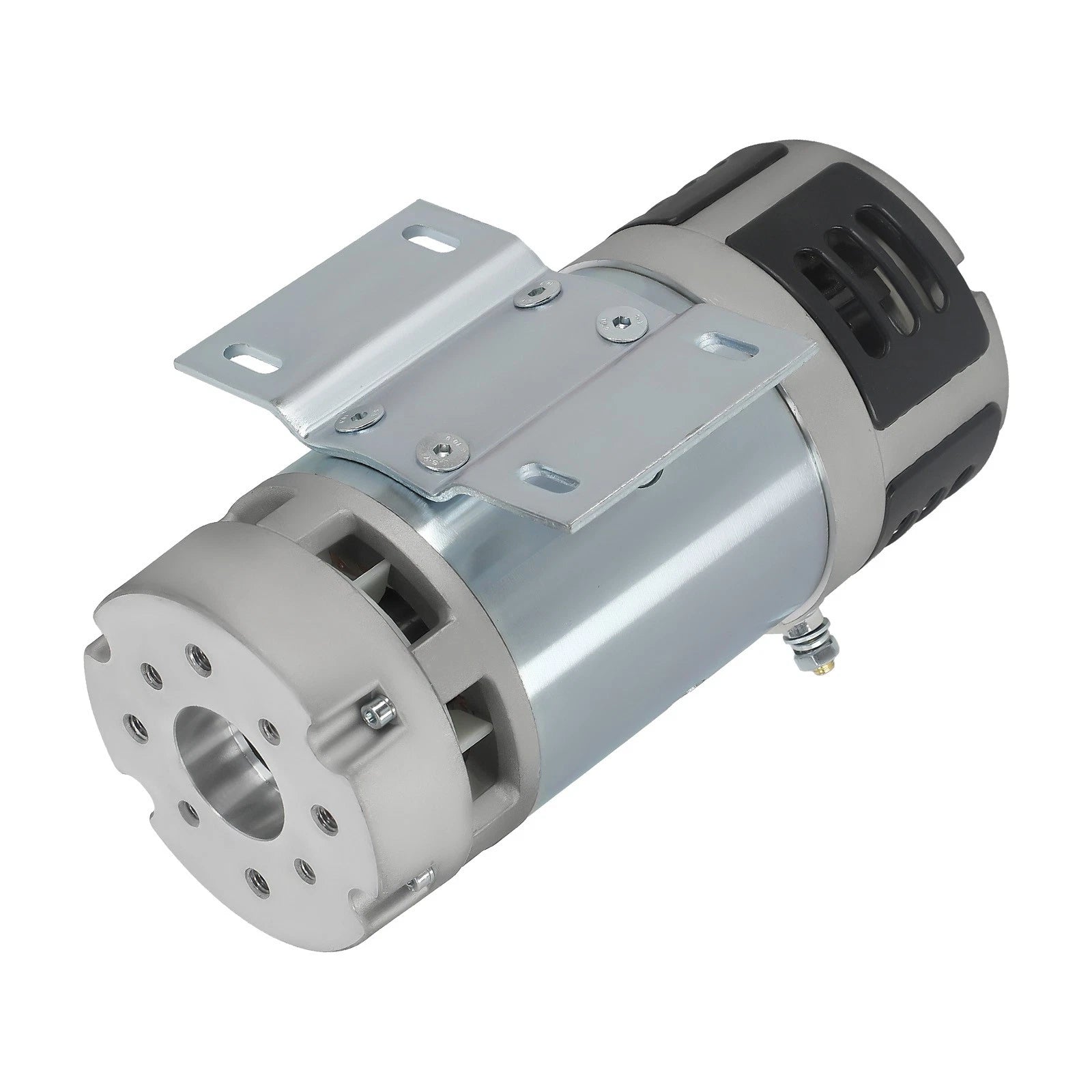

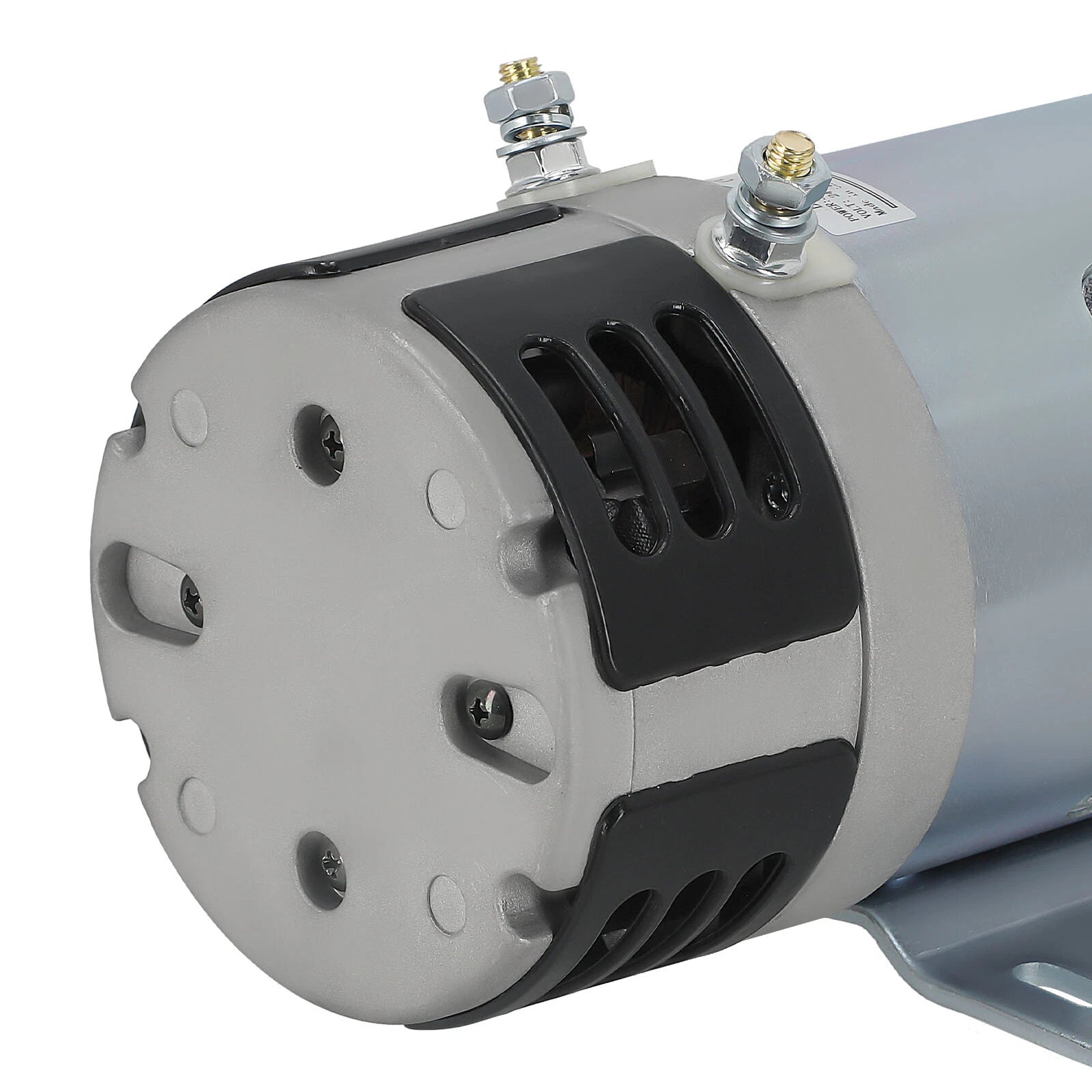

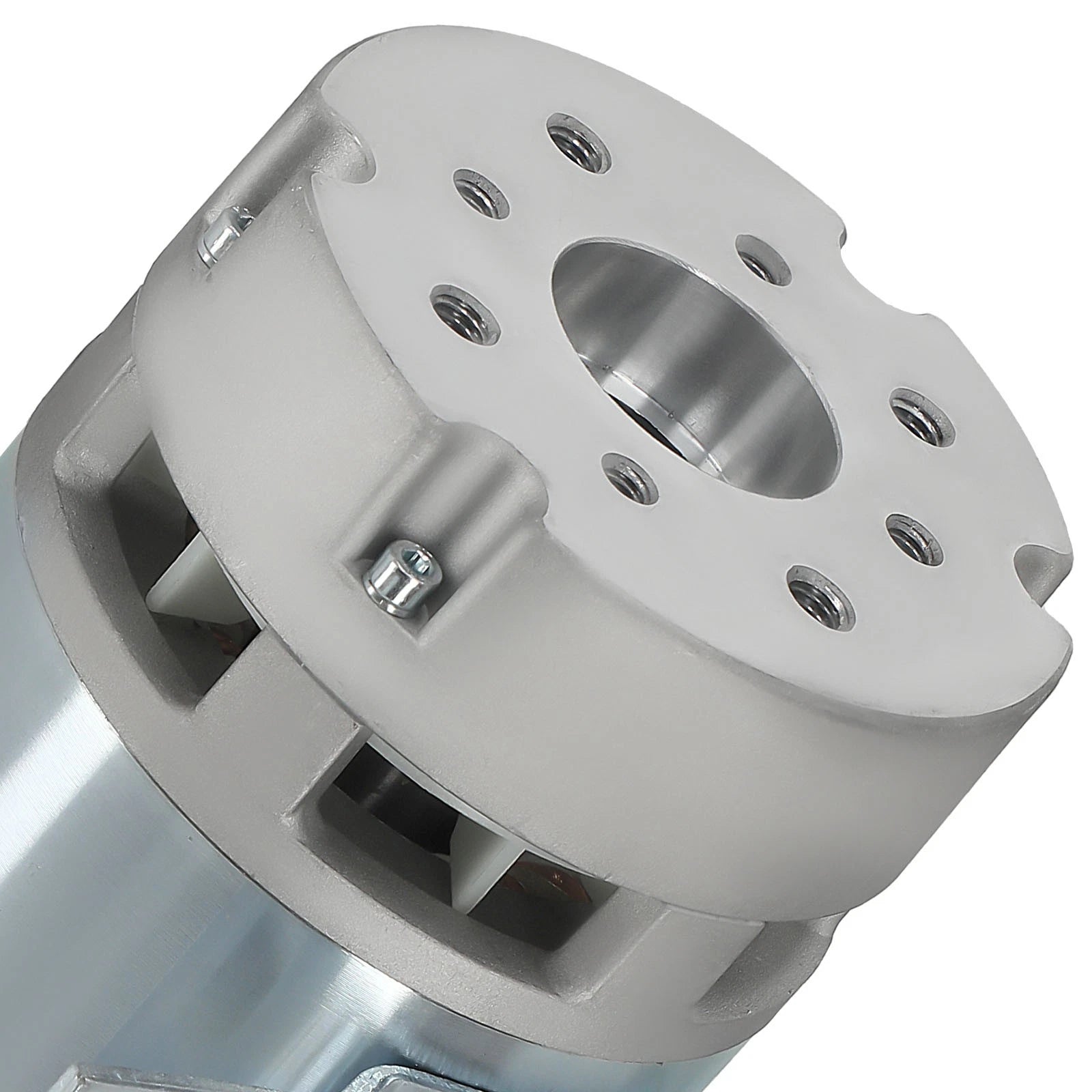

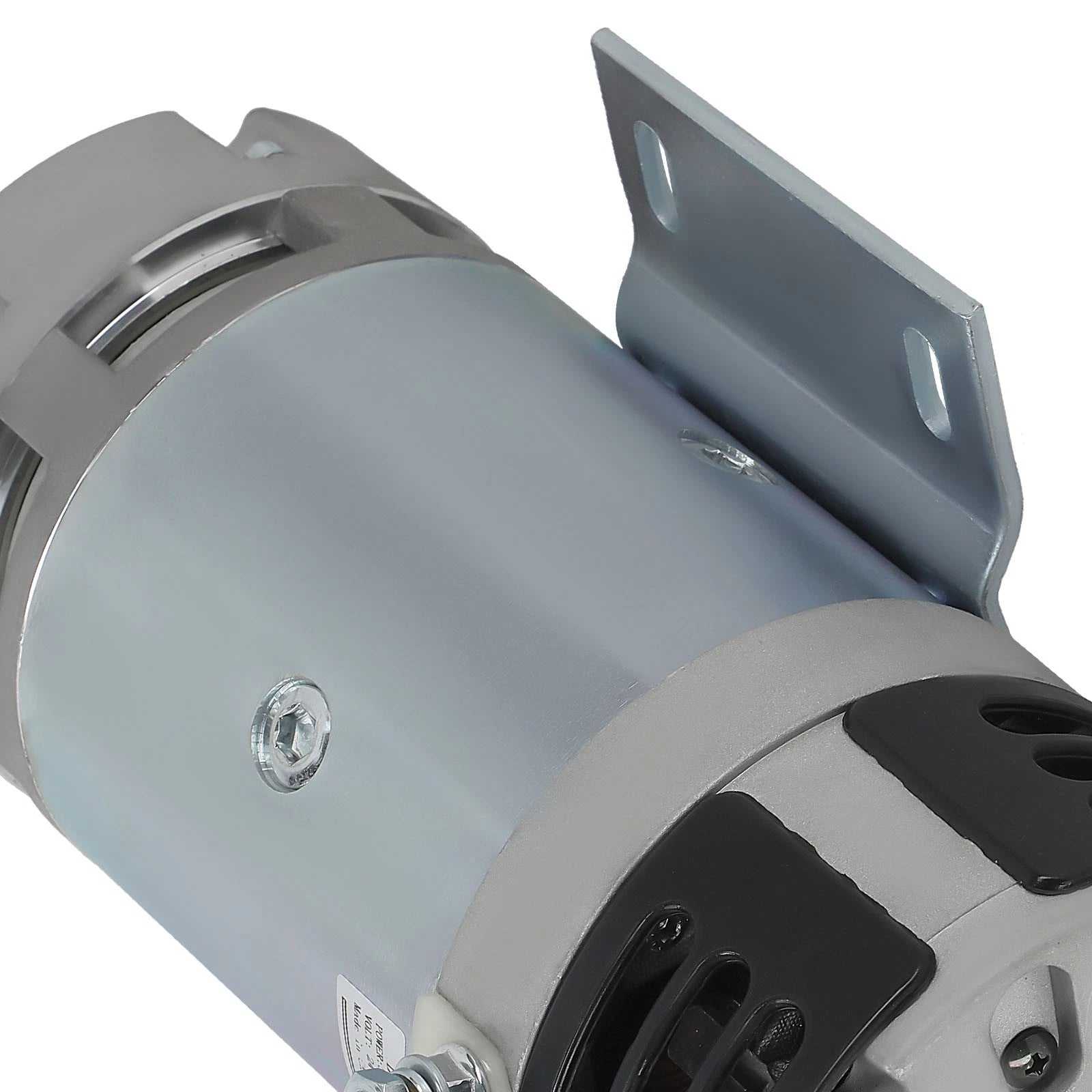

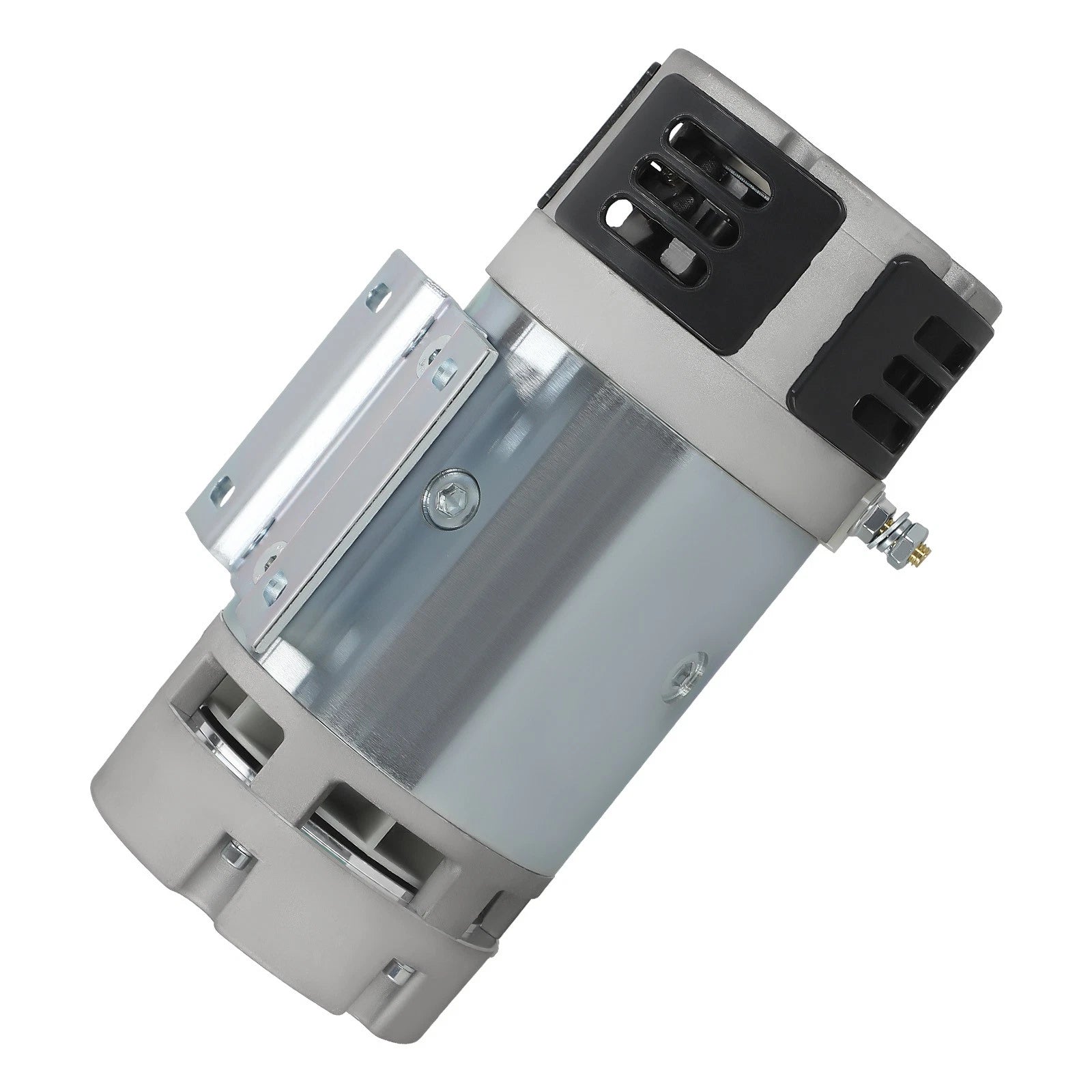

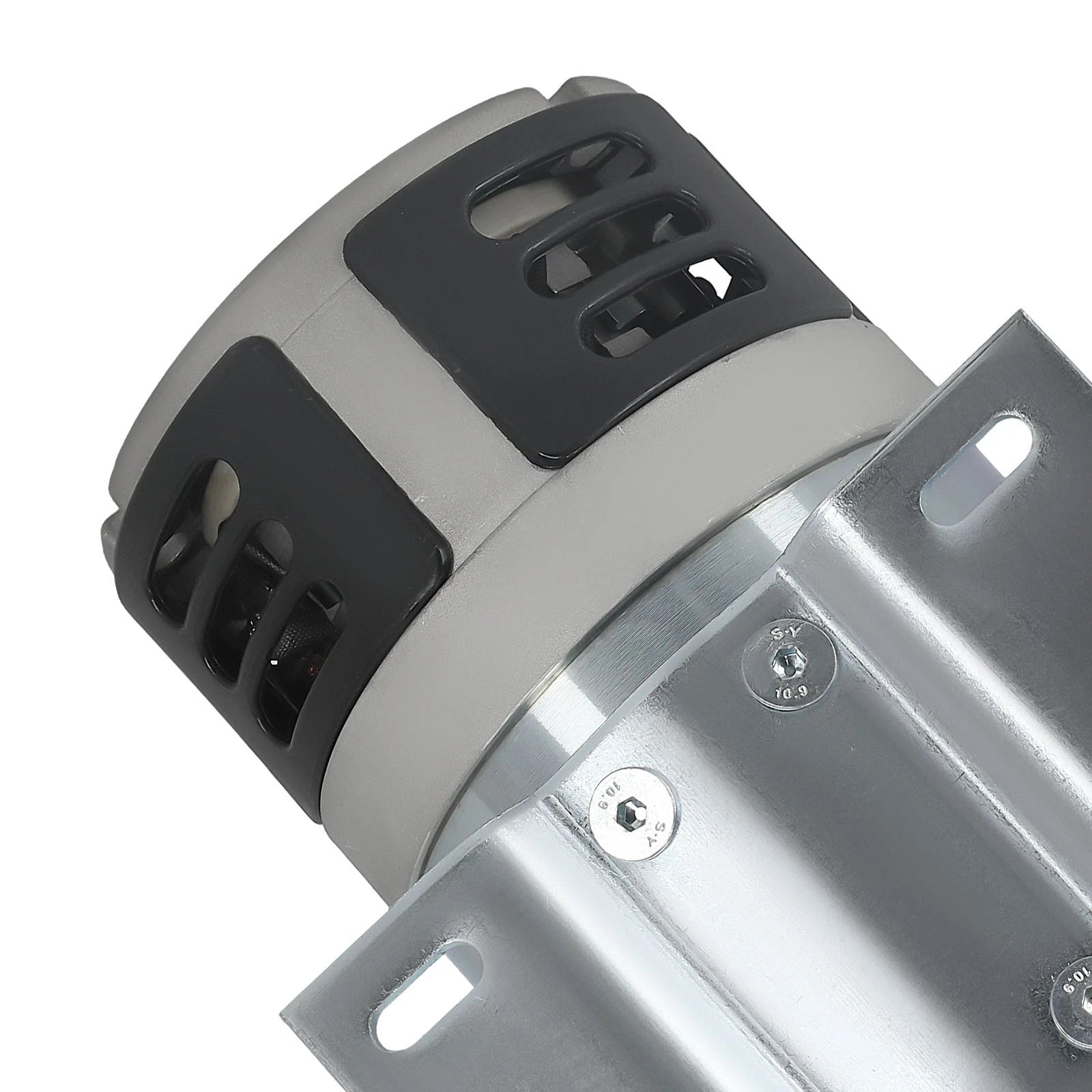

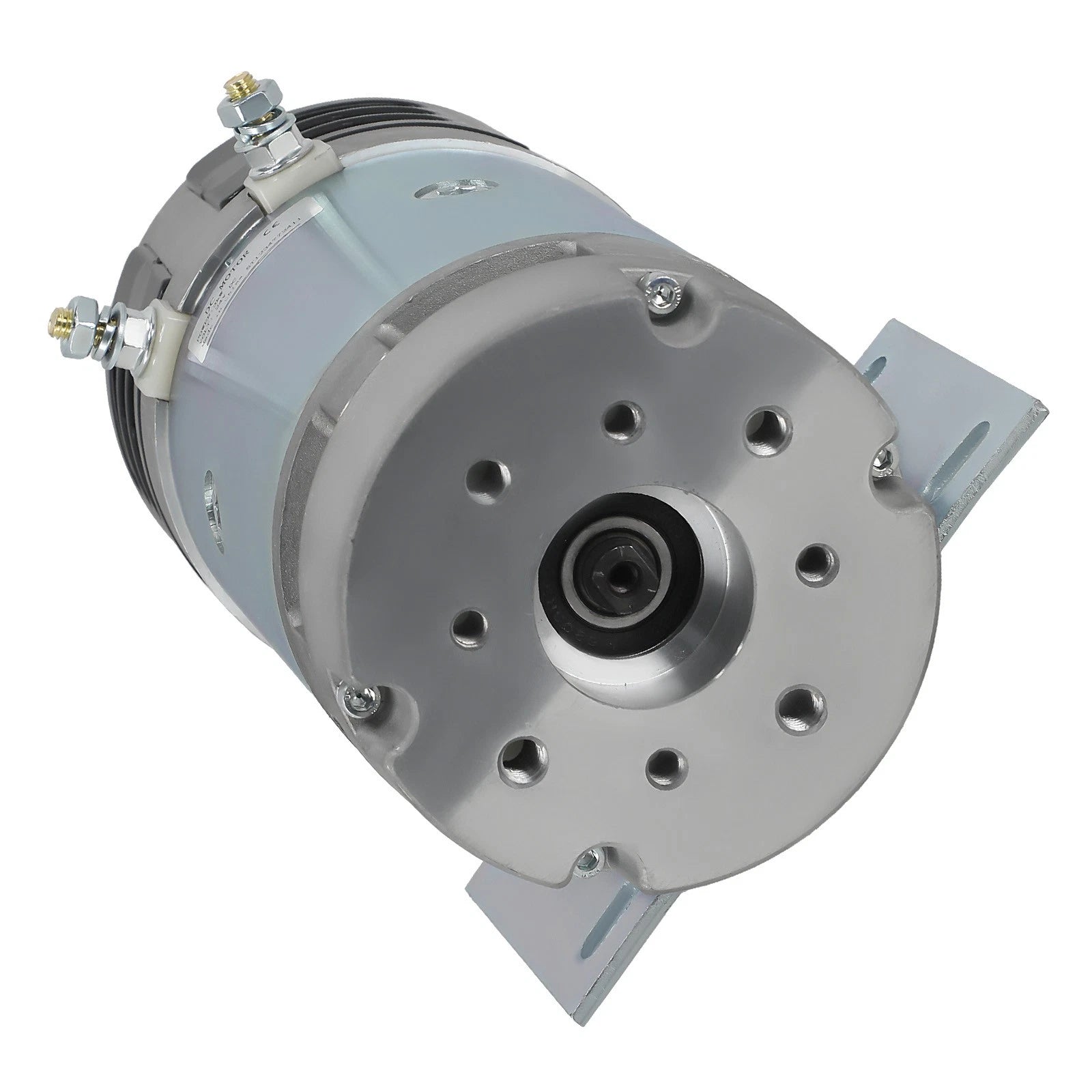

The Skyjack 123477 is a 24V DC electric pump motor designed to drive hydraulic pump systems in compatible Skyjack aerial lift equipment. Its 4.0 HP output and 3,100 RPM no-load speed support hydraulic power generation for applicable lift and machine functions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Skyjack |
| Category | Industrial Equipment Parts |
| Part Number | 123477 |
| Subcategory | Hydraulic Pump Motors |
| Product Type | Electric Pump Motor |
| Motor Type | DC Electric Motor |
| Voltage | 24 VDC |
| Power | 4.0 HP |
| No-Load Speed | 3,100 RPM |
| Rotation Direction | Clockwise (CW) |
| Motor Outer Diameter | 125 mm (4.92 in) |
| Motor Length | 273 mm (10.75 in) |
| Shaft Type | Single Slotted |
| Shaft Diameter | 22.5 mm |
| D1 Terminal Thread | 3/8-16 |
| A2 Terminal Thread | 3/8-16 |
| Weight | 30 lb |
Information About 123477
The 123477 is a Skyjack electric pump motor configured for 24V DC hydraulic power applications. Its cylindrical 125 mm housing contains a clockwise-rotation motor rated at 4.0 HP with a no-load speed of 3,100 RPM. The motor uses a single-slotted 22.5 mm shaft and 3/8-16 threaded D1 and A2 electrical terminals for integration with compatible pump and electrical assemblies. With a 273 mm motor length, the unit is intended for equipment configurations requiring these specific mechanical, electrical, and rotational characteristics.
Key Features:
- 24V DC Operation: Designed for compatible Skyjack electrical and hydraulic systems operating at 24V DC.
- 4.0 HP Output: Provides mechanical power for driving an applicable hydraulic pump assembly.
- 3,100 RPM Speed: Operates at a specified no-load speed of 3,100 RPM.
- Clockwise Rotation: Uses clockwise shaft rotation for compatible hydraulic pump configurations.
- Single-Slotted Shaft: Incorporates a 22.5 mm diameter shaft with a single-slotted connection.
- 125 mm Motor Diameter: Provides a defined housing size for installation and replacement planning.
- 273 mm Motor Length: Uses a specified overall motor length for equipment fitment verification.
- Threaded Terminals: Includes 3/8-16 D1 and A2 terminal threads for electrical connections.
The 123477 delivers the reliability and precision required for hydraulic pump operation in compatible Skyjack aerial lift equipment.
