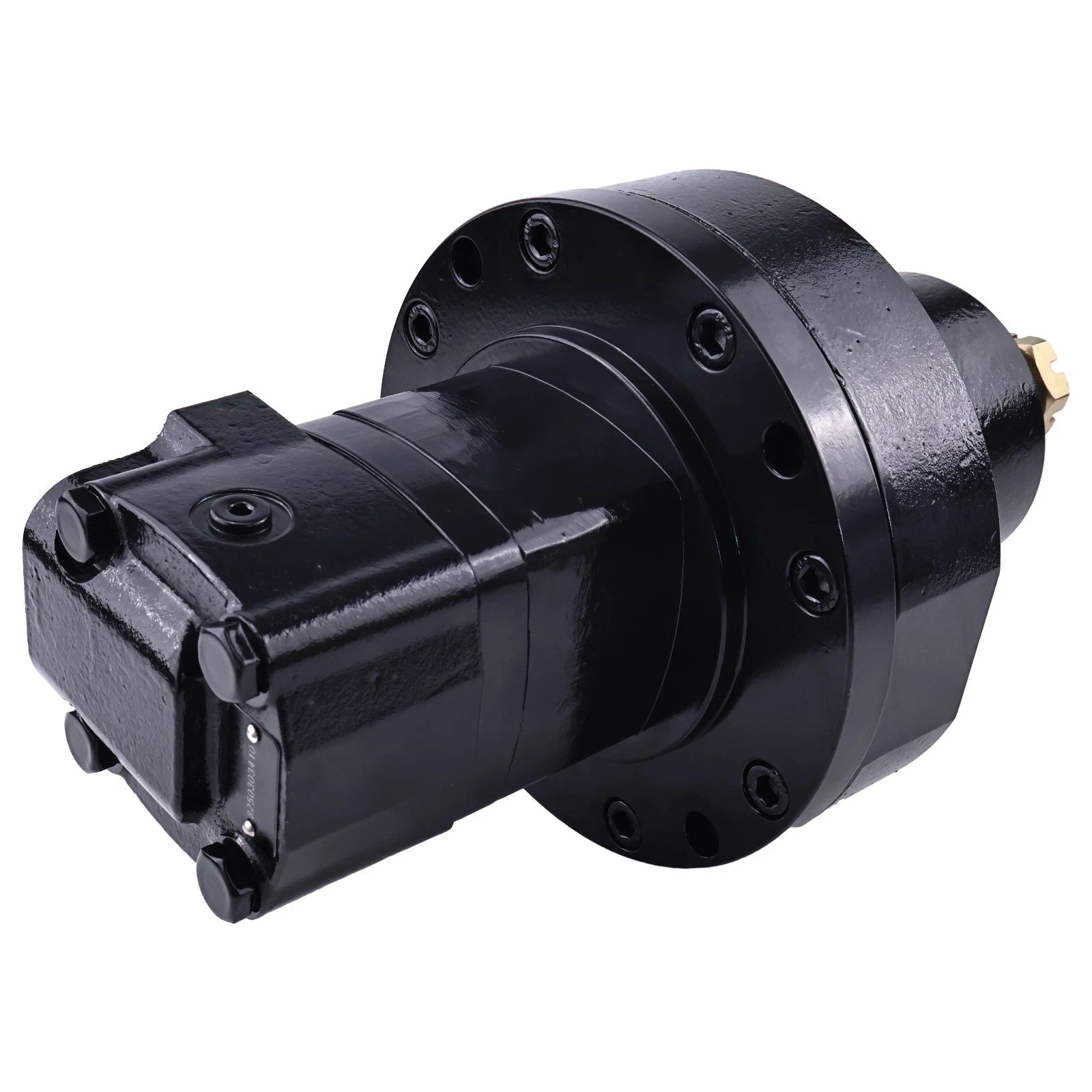

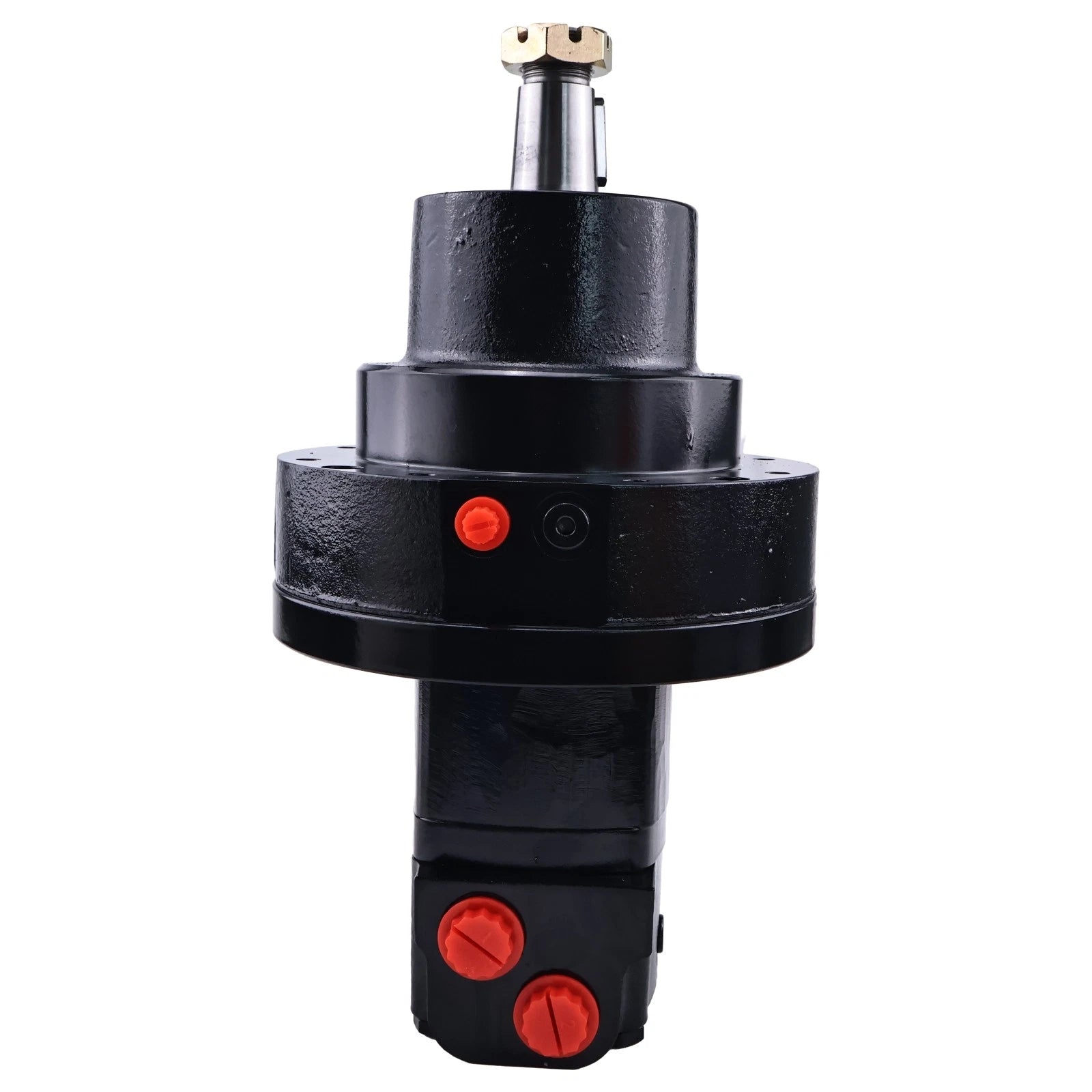

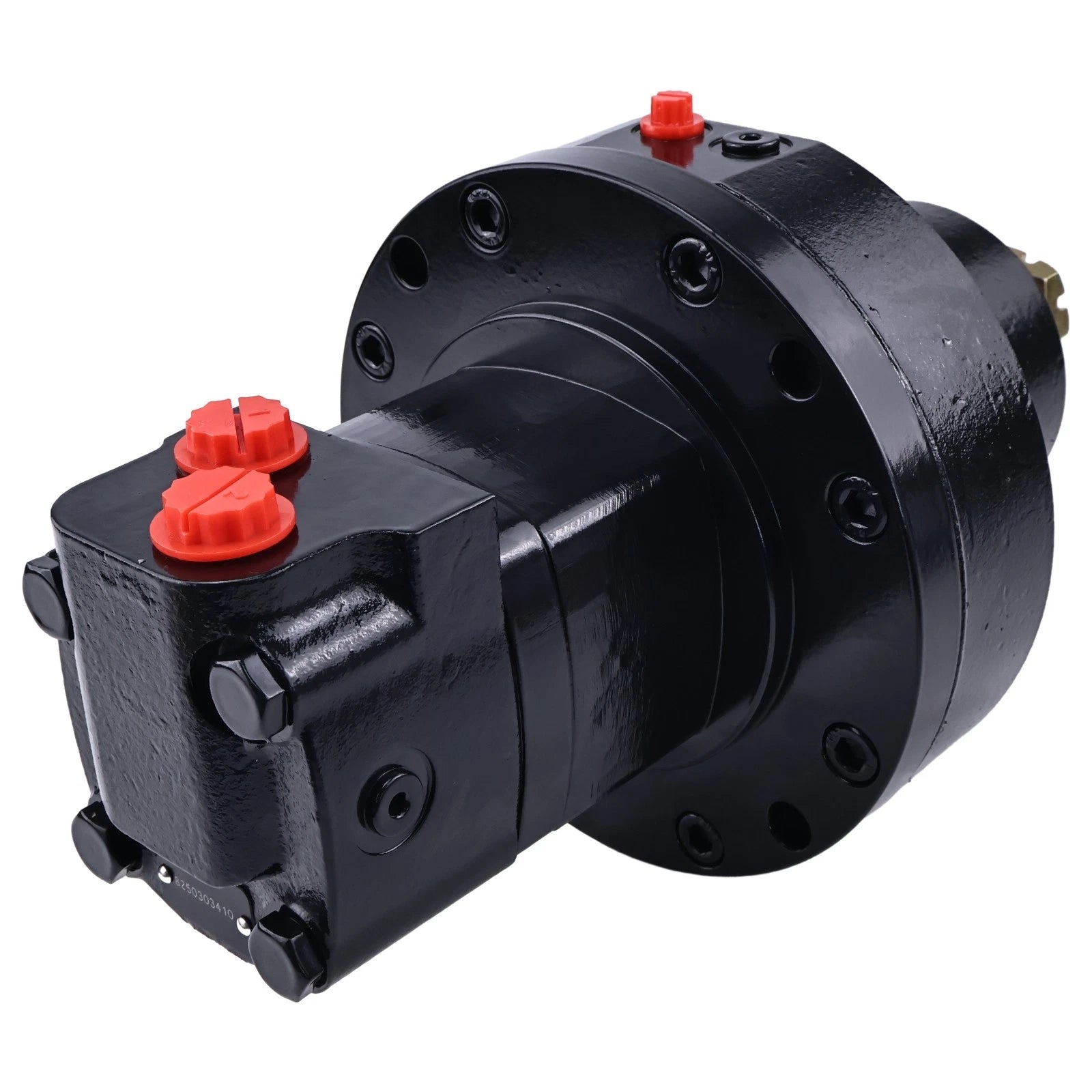

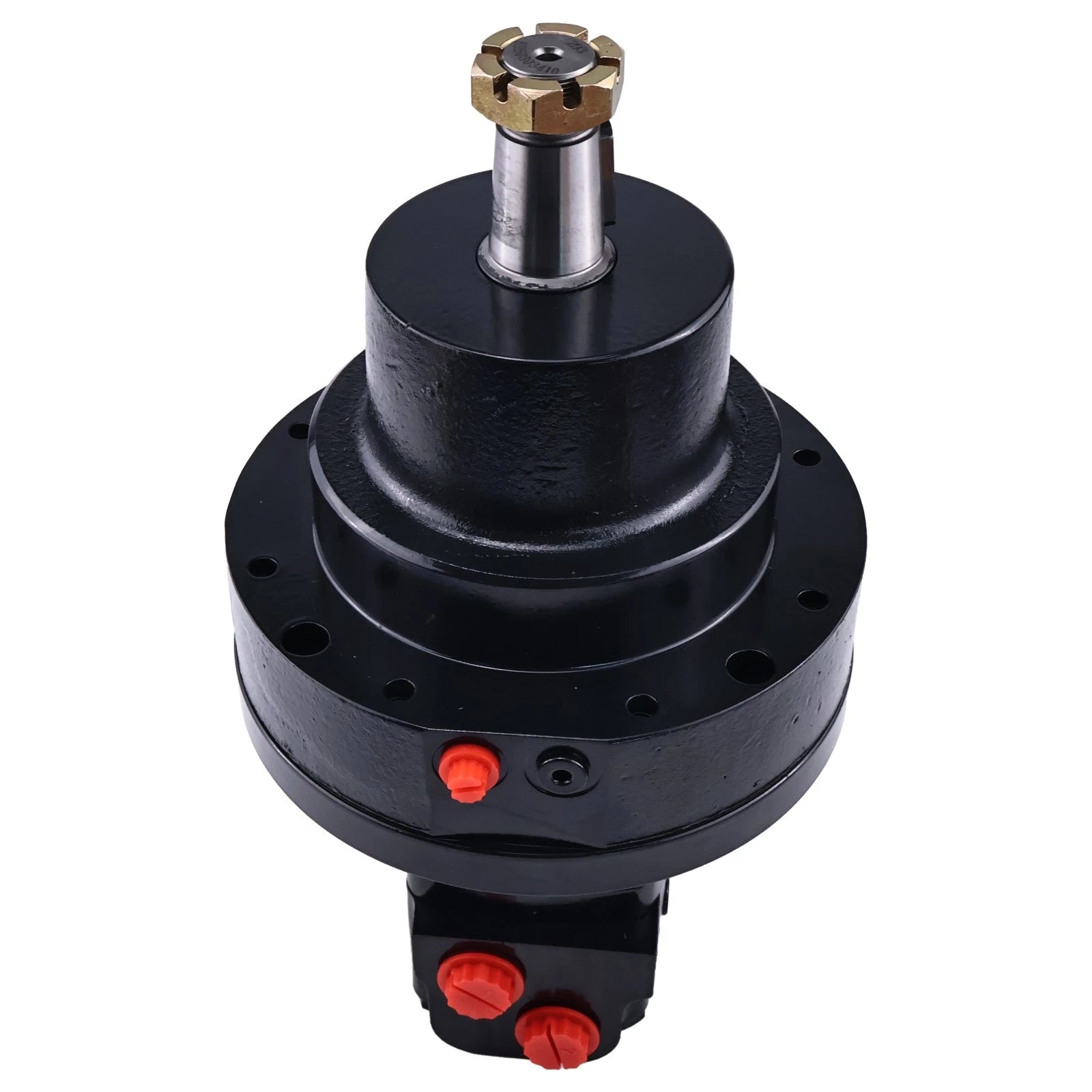

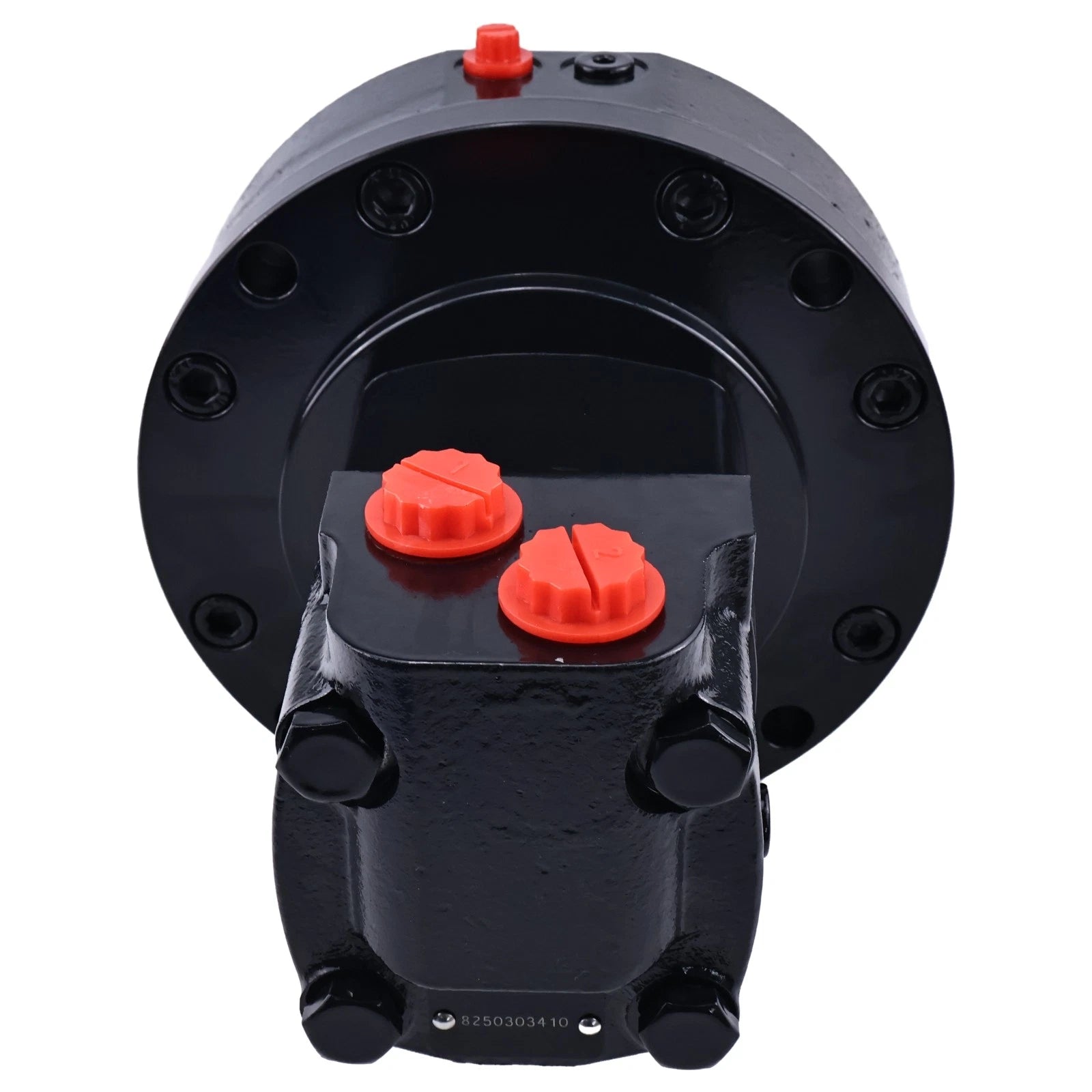

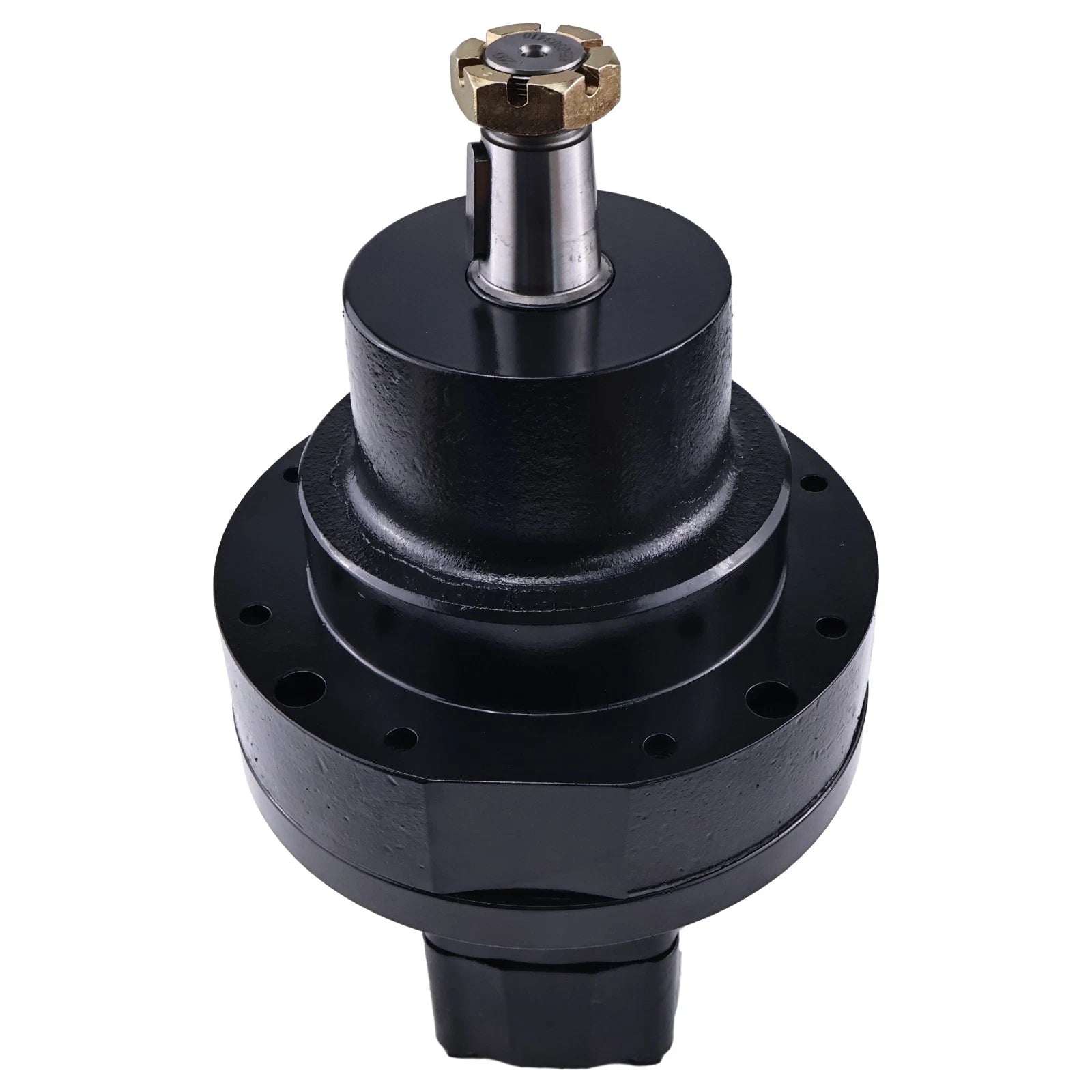

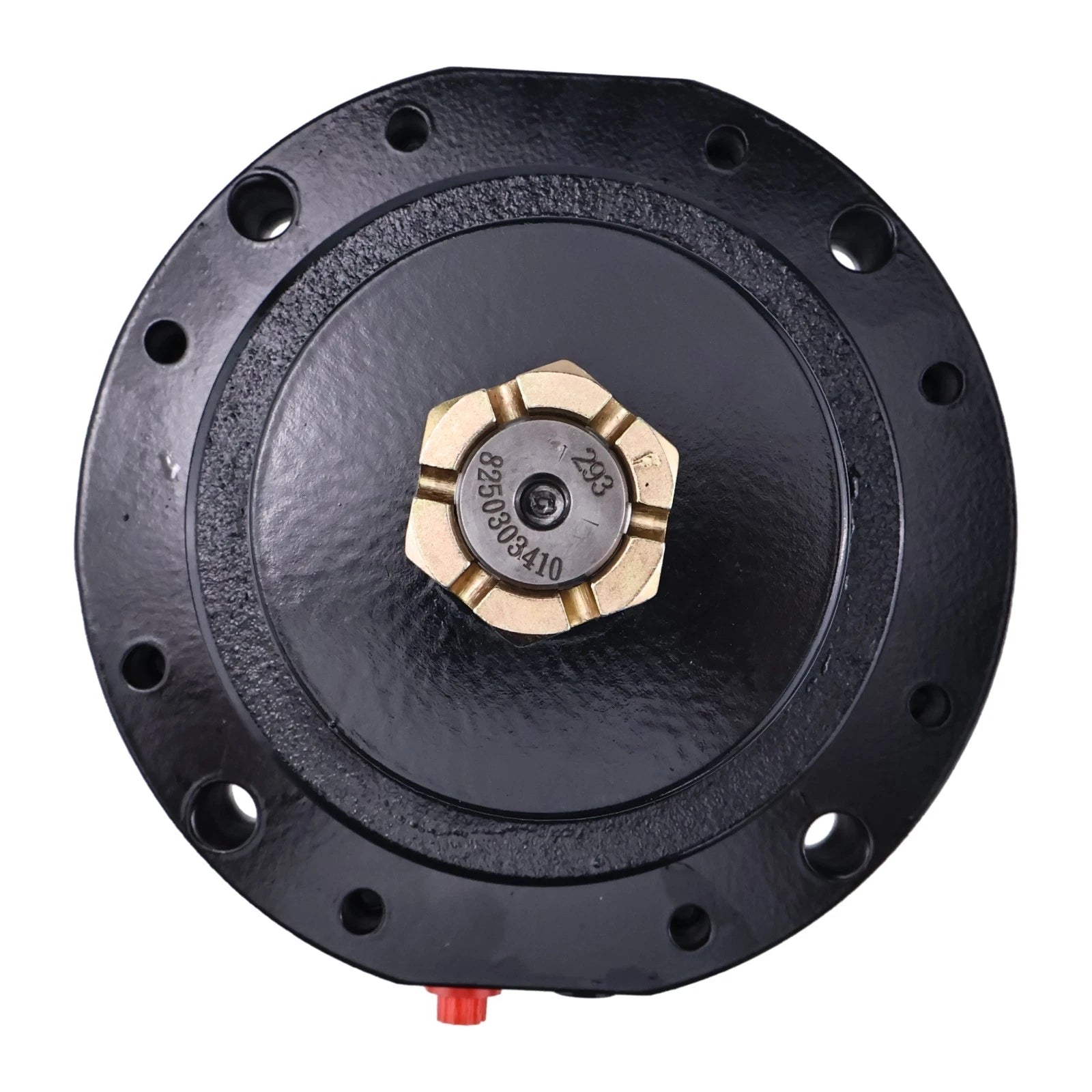

Skyjack 134573 Hydraulic Wheel Drive Motor with Brake for SJIII Scissor Lifts
- Regular price
- $1,299.00
- Sale price
- $1,299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 134573
Description
The Skyjack 134573 is a hydraulic wheel drive motor assembly with an integrated brake, designed to convert hydraulic pressure into wheel rotation on compatible Skyjack scissor lifts. Its high-torque hydraulic design supports controlled propulsion while the integrated braking system provides wheel holding when drive pressure is removed.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Skyjack |
| Category | Hydraulic Drive Components |
| Part Number | 134573 |
| Subcategory | Hydraulic Wheel Motors |
| Product Type | Hydraulic Wheel Motor with Brake |
| Alternate Part Numbers | SJ134573, 134573SJ |
| Drive Type | Hydraulic |
| Primary Function | Wheel Propulsion |
| Brake Configuration | Integrated Brake |
| Output Shaft Type | Tapered Shaft with Keyway |
| Hydraulic Port Location | Upper Motor Housing |
| Hydraulic Port Thread | 7/8 in UNF O-Ring Type |
| Compatible Equipment Type | Electric Scissor Lifts |
| Compatible Models | SJIII 3220, SJIII 3226, SJIII 4620, SJIII 4626, SJIII 4632 |
| Weight | Approximately 56.6 lb (25.67 kg) |
Information About 134573
The 134573 is a Skyjack hydraulic wheel motor with brake designed for the drive systems of select SJIII Series electric scissor lifts. Its heavy-duty housing incorporates the hydraulic motor, tapered output shaft, mounting flange, fluid ports, and an internal braking mechanism within a single assembly. The motor is associated with Skyjack SJIII 3220, 3226, 4620, 4626, and 4632 configurations where hydraulic drive power is transmitted directly to the wheel assembly. Hydraulic connections positioned on the motor housing provide the pressure and return paths required for drive operation and brake control.
Key Features:
- Hydraulic Drive Function: Converts pressurized hydraulic fluid into rotary output for scissor-lift wheel propulsion.
- Integrated Brake: Incorporates a braking mechanism within the wheel motor assembly for drive-system holding control.
- High-Torque Output: Provides the rotational force required to move compatible Skyjack scissor lifts under operating loads.
- Tapered Output Shaft: Uses an approximately 1.1-inch tapered shaft with keyway and threaded retaining arrangement.
- Hydraulic Port Configuration: Features multiple hydraulic connections positioned on the motor housing for system integration.
- Heavy-Duty Housing: Uses a robust metal motor body designed for mobile hydraulic drive applications.
- Flange Mounting: Provides a rigid mounting interface for installation within the machine's wheel-drive assembly.
- SJIII Compatibility: Used with select Skyjack SJIII 3220, 3226, 4620, 4626, and 4632 scissor lifts.
The 134573 delivers the reliability and precision required for hydraulic wheel propulsion and braking in compatible Skyjack scissor lifts.
