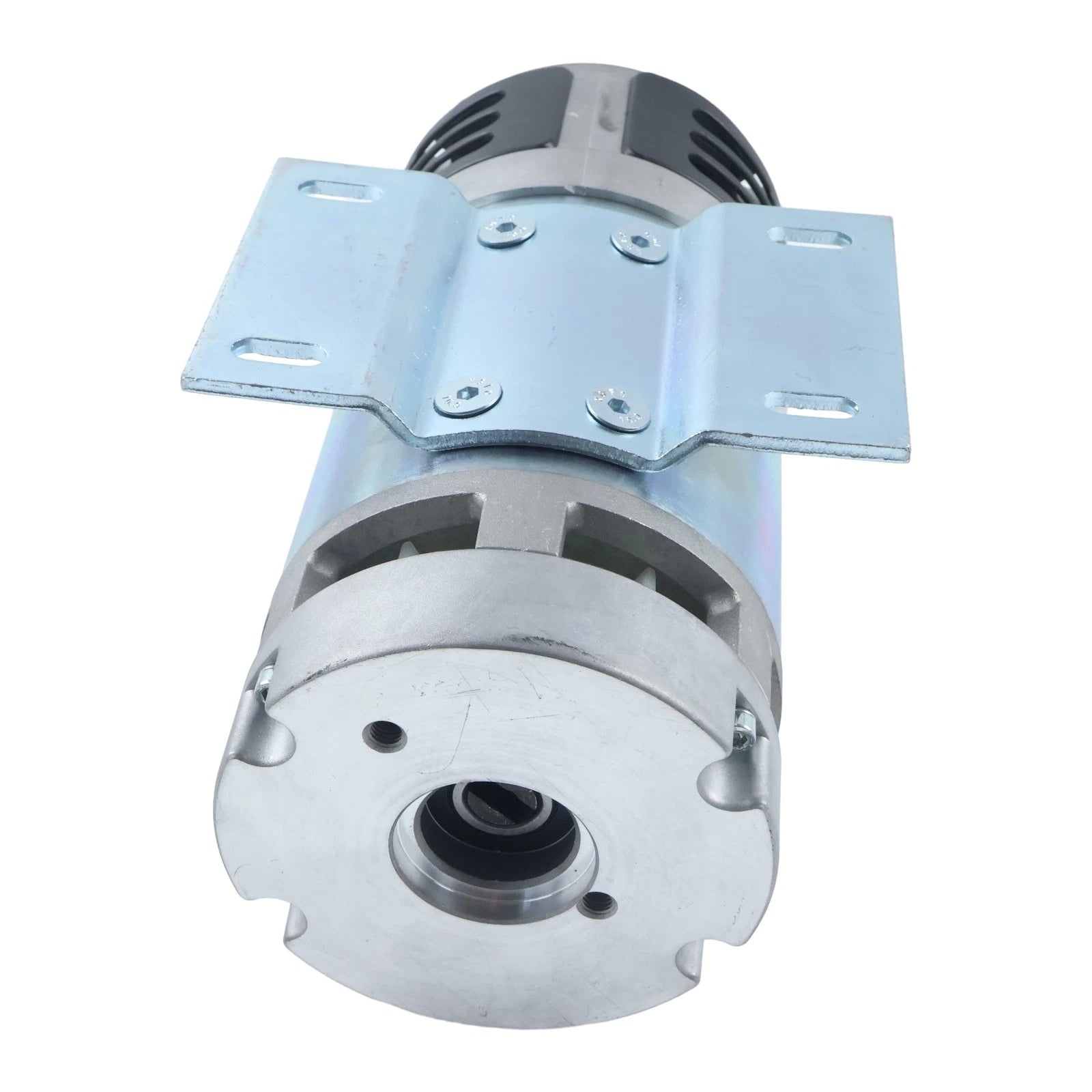

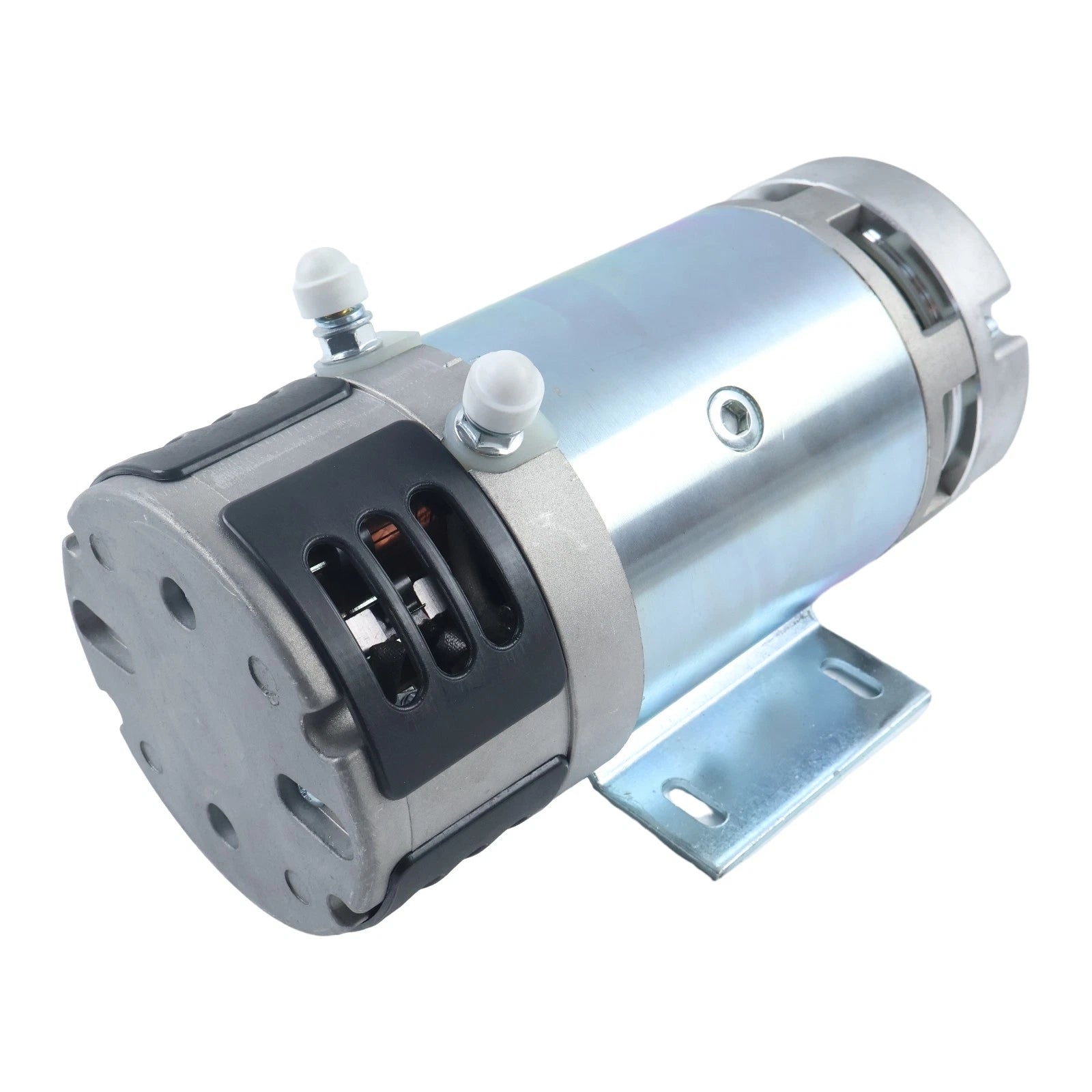

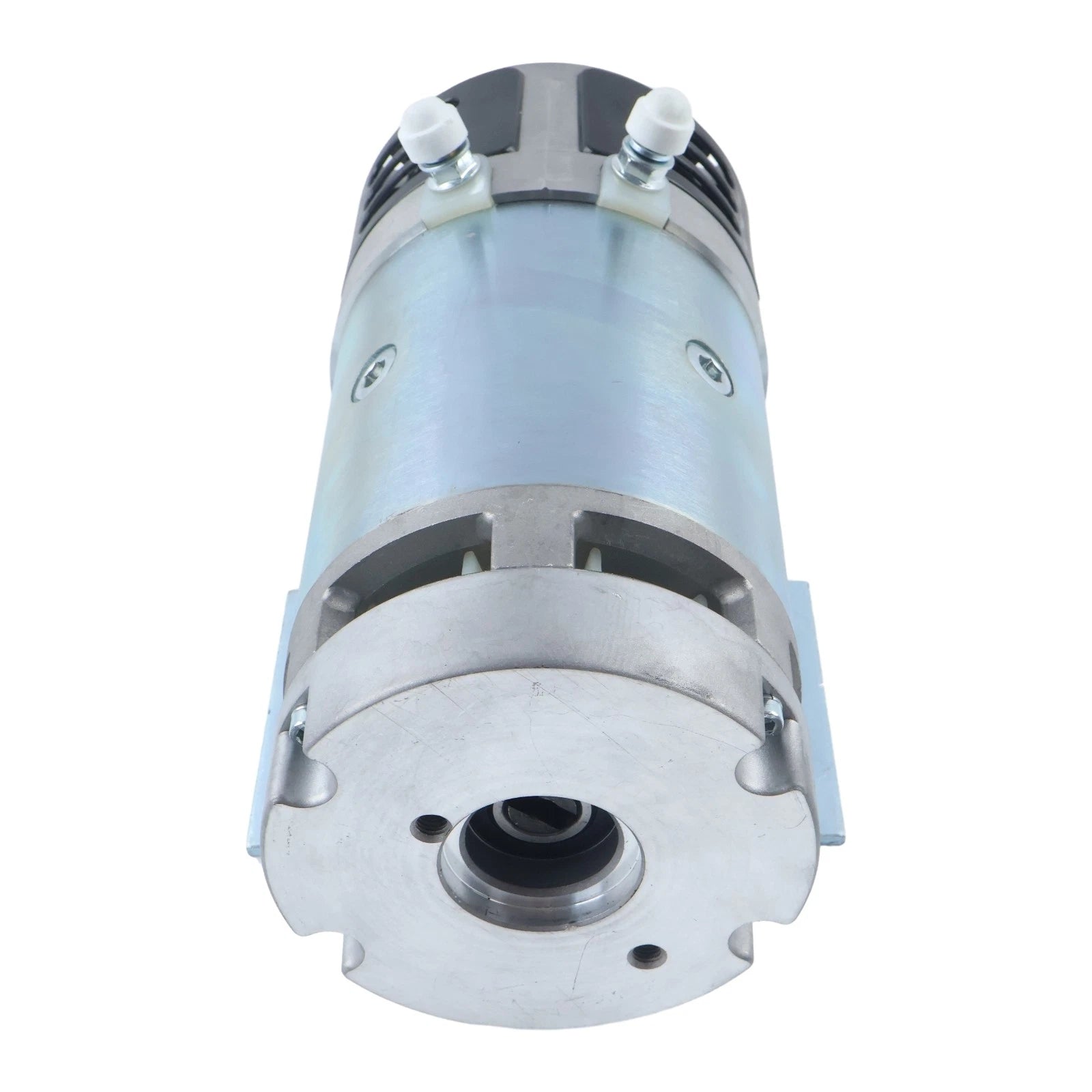

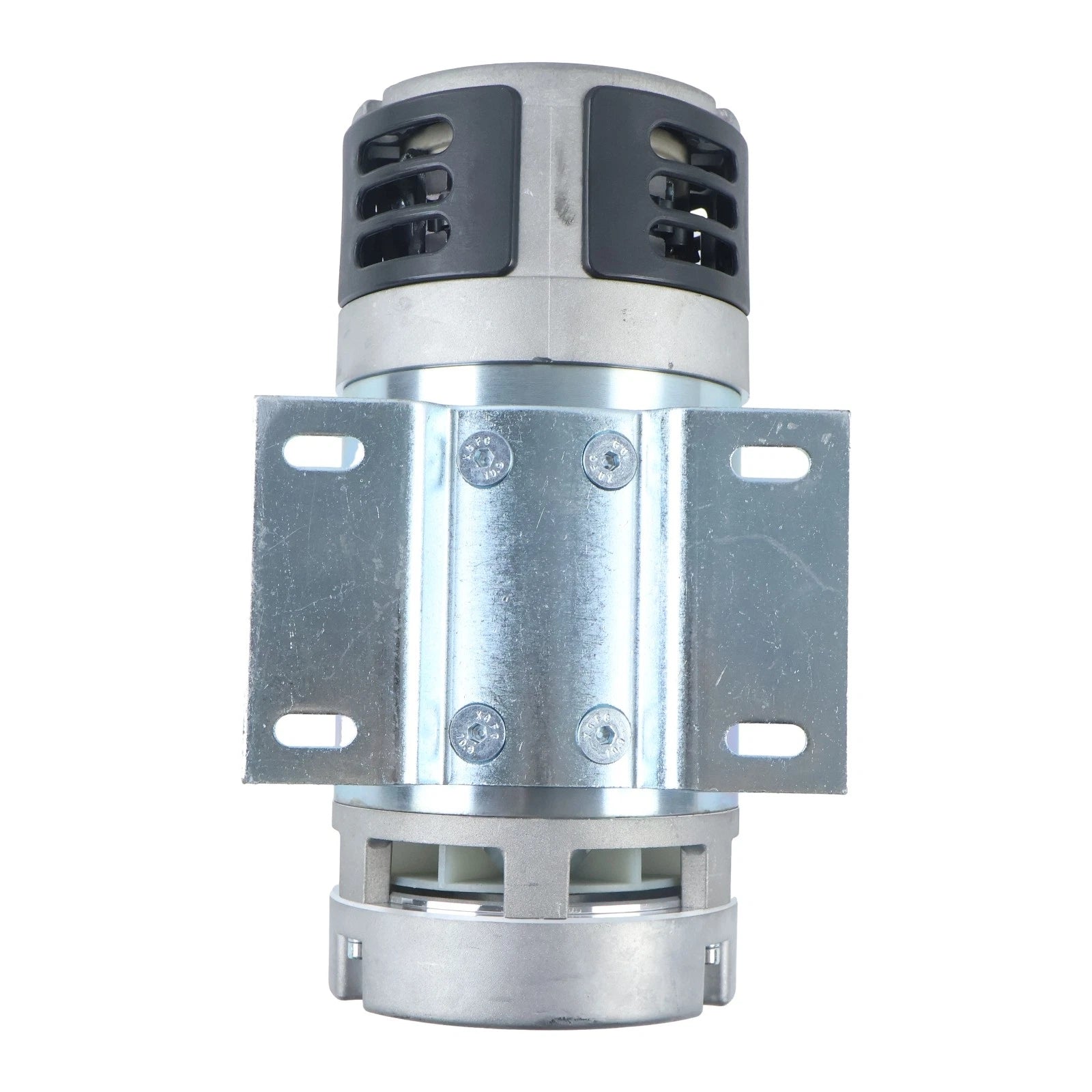

Skyjack 147664 Electric Hydraulic Pump Motor Assembly for Scissor Lifts
- Regular price
- $787.00
- Sale price
- $787.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 147664
Description
The Skyjack 147664 is a 24V DC electric pump motor assembly designed to drive the hydraulic pump in compatible Skyjack electric scissor lifts. Rated at 4 HP with a 3,100 RPM no-load speed, the motor provides clockwise rotational output for applicable hydraulic power systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Skyjack |
| Category | Industrial Equipment Parts |
| Part Number | 147664 |
| Subcategory | Hydraulic Pump Motors |
| Product Type | Electric Pump Motor Assembly |
| Motor Type | DC Electric Motor |
| Voltage | 24 VDC |
| Power | 4 HP / 3.0 kW |
| Current Rating | 125 A |
| No-Load Speed | 3,100 RPM |
| Rotation Direction | Clockwise (CW) |
| Motor Outer Diameter | 4.92 in (125 mm) |
| Armature Housing Length | 5.03 in |
| Motor Length | 273 mm (10.75 in) |
| Total Length | 11.02 in |
| Shaft Type | Single Slotted |
| Shaft Diameter | 22.5 mm |
| Terminal Clamps | 2 |
| D1 / A2 Terminal Thread | 3/8-16 |
| Weight | 28 lb |
Information About 147664
The 147664 is a Skyjack-compatible electric pump motor assembly used in the hydraulic systems of selected SJIII-series scissor lifts. Its 24V DC construction is rated at approximately 3.0 kW (4 HP) and operates at 3,100 RPM with clockwise rotation. The motor uses a 125 mm outer-diameter housing, a single-slotted 22.5 mm shaft, and 3/8-16 D1 and A2 electrical terminals for integration with compatible pump assemblies. It is associated with MAHLE/ISKRA and Haldex 220-1142 configurations and is listed for selected SJIII3215, SJIII3219, SJIII3220, SJIII3226, and SJIII4620 equipment.
Key Features:
- 24V DC Operation: Designed for compatible Skyjack electric scissor lift hydraulic systems.
- 4 HP Motor Output: Provides approximately 3.0 kW of mechanical power for hydraulic pump operation.
- 3,100 RPM Speed: Delivers the specified no-load rotational speed for compatible pump assemblies.
- Clockwise Rotation: Configured for clockwise motor rotation in applicable hydraulic systems.
- Single-Slotted Shaft: Uses a 22.5 mm diameter shaft for mechanical connection to the pump.
- 125 mm Housing Diameter: Provides a defined motor body diameter for fitment verification.
- Threaded Electrical Terminals: Uses 3/8-16 D1 and A2 terminal connections.
- SJIII Compatibility: Listed for selected Skyjack SJIII electric scissor lift models.
The 147664 delivers the reliability and precision required for hydraulic pump operation in compatible Skyjack electric scissor lifts.
Description
The Skyjack 147664 is a 24V DC electric pump motor assembly designed to drive the hydraulic pump in compatible Skyjack electric scissor lifts. Rated at 4 HP with a 3,100 RPM no-load speed, the motor provides clockwise rotational output for applicable hydraulic power systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Skyjack |
| Category | Industrial Equipment Parts |
| Part Number | 147664 |
| Subcategory | Hydraulic Pump Motors |
| Product Type | Electric Pump Motor Assembly |
| Motor Type | DC Electric Motor |
| Voltage | 24 VDC |
| Power | 4 HP / 3.0 kW |
| Current Rating | 125 A |
| No-Load Speed | 3,100 RPM |
| Rotation Direction | Clockwise (CW) |
| Motor Outer Diameter | 4.92 in (125 mm) |
| Armature Housing Length | 5.03 in |
| Motor Length | 273 mm (10.75 in) |
| Total Length | 11.02 in |
| Shaft Type | Single Slotted |
| Shaft Diameter | 22.5 mm |
| Terminal Clamps | 2 |
| D1 / A2 Terminal Thread | 3/8-16 |
| Weight | 28 lb |
Information About 147664
The 147664 is a Skyjack-compatible electric pump motor assembly used in the hydraulic systems of selected SJIII-series scissor lifts. Its 24V DC construction is rated at approximately 3.0 kW (4 HP) and operates at 3,100 RPM with clockwise rotation. The motor uses a 125 mm outer-diameter housing, a single-slotted 22.5 mm shaft, and 3/8-16 D1 and A2 electrical terminals for integration with compatible pump assemblies. It is associated with MAHLE/ISKRA and Haldex 220-1142 configurations and is listed for selected SJIII3215, SJIII3219, SJIII3220, SJIII3226, and SJIII4620 equipment.
Key Features:
- 24V DC Operation: Designed for compatible Skyjack electric scissor lift hydraulic systems.
- 4 HP Motor Output: Provides approximately 3.0 kW of mechanical power for hydraulic pump operation.
- 3,100 RPM Speed: Delivers the specified no-load rotational speed for compatible pump assemblies.
- Clockwise Rotation: Configured for clockwise motor rotation in applicable hydraulic systems.
- Single-Slotted Shaft: Uses a 22.5 mm diameter shaft for mechanical connection to the pump.
- 125 mm Housing Diameter: Provides a defined motor body diameter for fitment verification.
- Threaded Electrical Terminals: Uses 3/8-16 D1 and A2 terminal connections.
- SJIII Compatibility: Listed for selected Skyjack SJIII electric scissor lift models.
The 147664 delivers the reliability and precision required for hydraulic pump operation in compatible Skyjack electric scissor lifts.
