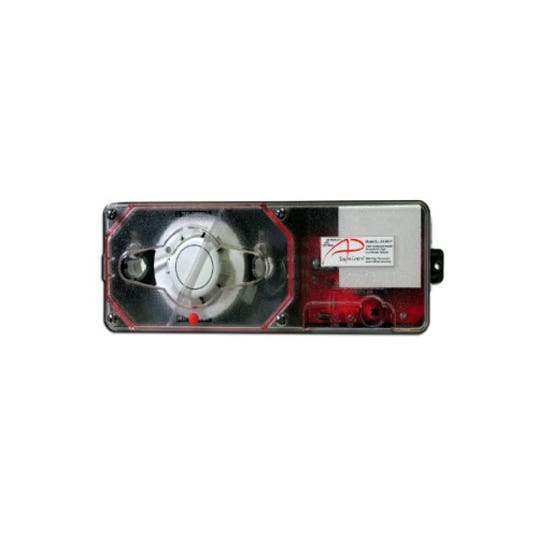

SL-DA4R-P | Gamewell-FCI Honeywell Photoelectric Smoke Duct Detector for HVAC Systems
- Regular price
- $315.00
- Sale price
- $315.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: SL-DA4R-P
Description
The Gamewell-FCI SL-DA4R-P Smoke Duct Detector by Honeywell is an analog addressable photoelectric sensor designed for early detection of smoke and combustion products in air-moving HVAC ducts. Engineered for commercial, industrial, and residential environments, it prevents the spread of smoke through ventilation systems by initiating control functions such as fan shutdown or damper activation. The SL-DA4R-P offers high sensitivity, versatile compatibility, and reliable detection performance across a wide range of air velocities.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Gamewell-FCI (Honeywell) |
| Category | Fire Safety |
| Part Number | SL-DA4R-P |
| Subcategory | Duct Detectors |
| Detection Method | Photoelectric |
| Detectable Medium | Smoke |
| Protocol Compatibility | Discovery, XP95 |
| Air Velocity Range | 100 to 4000 ft/min |
| Operating Voltage | 24 VAC or 24 VDC |
| Addressing Method | XPERT Card |
| Testing Feature | Built-in “Test Port Valve” for smoke testing |
| Cover Type | Clear cover with four captive thumbscrews |
| Wiring Type | In-line terminal block |
| Alarm Indicator | Steady red LED on detector head |
| Mounting Options | Compatible with WP-2000 weatherproof enclosure |
| Temperature Rating | Suitable for high-temperature duct applications |
| Material | Durable ABS enclosure with pre-installed gaskets |
| Unit of Measurement | Each (EA) |
| Weight | 2.25 lbs |
Information About SL-DA4R-P
The SL-DA4R-P is a member of the Gamewell-FCI SL-DA4R Series, designed for precise smoke detection in HVAC duct applications. It supports both the Discovery and XP95 communication protocols, making it compatible with modern Honeywell and Gamewell-FCI fire alarm control panels. This detector employs a photoelectric sensing method for accurate detection of visible smoke particles and features low-flow technology for optimal performance in air velocities from 100 to 4000 ft/min. With a modular design, XPERT card addressing, and tool-free maintenance features, the SL-DA4R-P ensures fast installation, configuration, and servicing.
Key Features:
- Low-Flow Operation: Detects smoke accurately in air velocities from 100–4000 ft/min for broad HVAC compatibility.
- Photoelectric Detection: Provides sensitive and reliable smoke detection using optical sensing technology.
- Tool-Free Maintenance: Includes “No-Tools Required” sampling tube removal and captive cover screws for easy access.
- XPERT Addressing: Equipped with a slide-in XPERT card for quick and secure device identification.
- Test Port Valve: Allows aerosol testing without removing the cover for simplified maintenance checks.
- Integrated Alarm Indicators: Steady red LED on the detector head indicates active alarm condition.
- Flexible Mounting: Compact footprint enables retrofit installation without additional drilling.
- Enhanced Wiring Access: In-line terminal block and expanded wiring space simplify electrical connections.
The SL-DA4R-P delivers the reliability and precision required for effective smoke detection and air handling safety in modern fire alarm systems.
