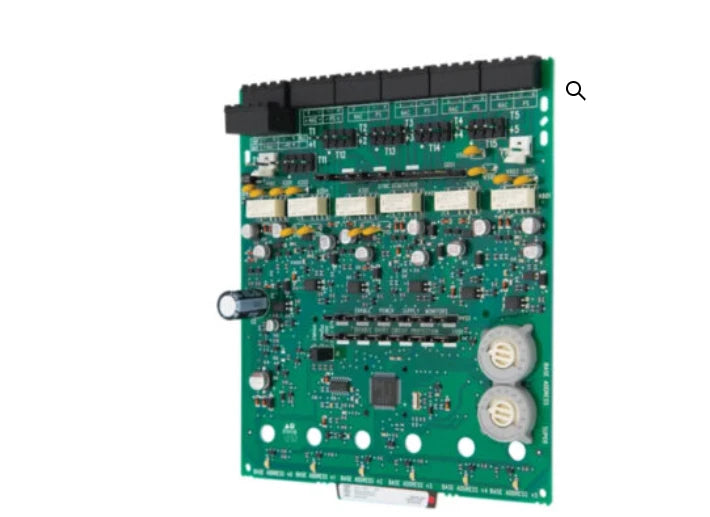

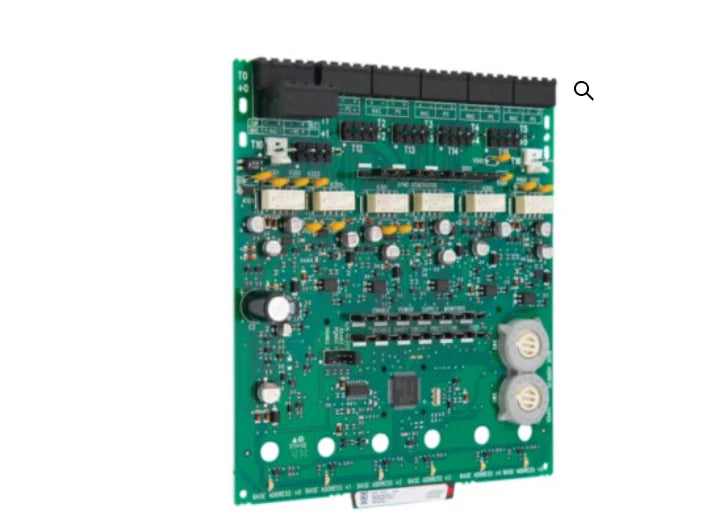

SLC-2PCA | Fire-Lite Dual SLC Control Panel Module for MS-9600 Intelligent Fire Alarm Systems
- Regular price
- $694.00
- Sale price
- $694.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: SLC-2PCA
Description
The Fire-Lite SLC-2PCA Control Panel Module is an intelligent signaling line circuit (SLC) board designed for use with the Fire-Lite MS-9600 and MS-9600LS fire alarm control panels. It provides two addressable SLC loops that allow connection and communication with a wide range of Fire-Lite intelligent devices.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Fire-Lite |
| Category | Fire Alarm Equipment |
| Part Number | SLC-2PCA |
| Subcategory | Control Panel Module |
| System Compatibility | Fire-Lite MS-9600, MS-9600LS, MS-9600UDLS panels |
| SLC Loops | Two independent addressable loops |
| Device Capacity | 159 detectors and 159 modules per loop (LiteSpeed™ protocol) |
| Wiring Configuration | Class A (Style 6) or Class B (Style 4) |
| Communication Protocol | Fire-Lite LiteSpeed™ |
| Mounting Type | Plug-in board onto control panel motherboard |
| Indicators | LED status for communication and fault conditions |
| Supervision | Detects open, short, and ground faults |
| Operating Voltage | 24 VDC nominal (supplied from panel) |
| Operating Temperature Range | 32°F to 120°F (0°C to 49°C) |
| Humidity Range | Up to 93% RH, non-condensing |
| Compliance | UL 864 Listed; NFPA 72 compliant |
| Dimensions | Approx. 6.5" L × 4.5" W × 1.0" D |
| Weight | 0.5 lb (0.23 kg) |
Information About SLC-2PCA
The SLC-2PCA is a plug-in module that expands the communication capacity of Fire-Lite MS-9600 Series control panels. Each SLC loop supports multiple addressable devices such as smoke detectors, modules, and annunciators using Fire-Lite’s LiteSpeed™ protocol. The card processes and supervises communication between the control panel and field devices, ensuring rapid response and accurate event reporting. Designed for easy installation, the SLC-2PCA mounts directly onto the panel’s main board and is automatically recognized by the system firmware. It provides robust supervision and fault detection, maintaining system integrity across all connected circuits.
Key Features:
- Dual SLC Loops: Supports two independent addressable loops for device communication.
- High Device Capacity: Each loop supports up to 159 detectors and 159 modules.
- LiteSpeed™ Protocol: Provides high-speed polling and reduced response time.
- Plug-In Design: Easily mounts to the MS-9600 or MS-9600LS control panel motherboard.
- Automatic Detection: Recognized by the panel software for seamless integration.
- Supervised Communication: Monitors for open, short, and ground faults on each loop.
- Flexible Configuration: Supports both Class A and Class B wiring arrangements.
- UL/NFPA Compliant: Meets industry standards for addressable fire alarm communication.
The SLC-2PCA delivers the reliability and precision required for addressable device control and network communication in intelligent Fire-Lite systems.
