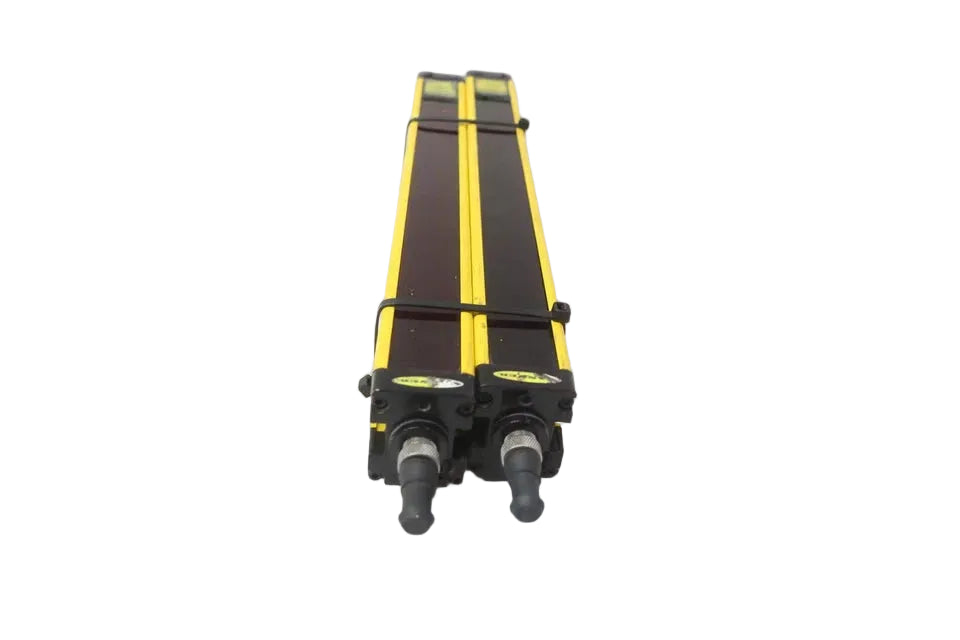

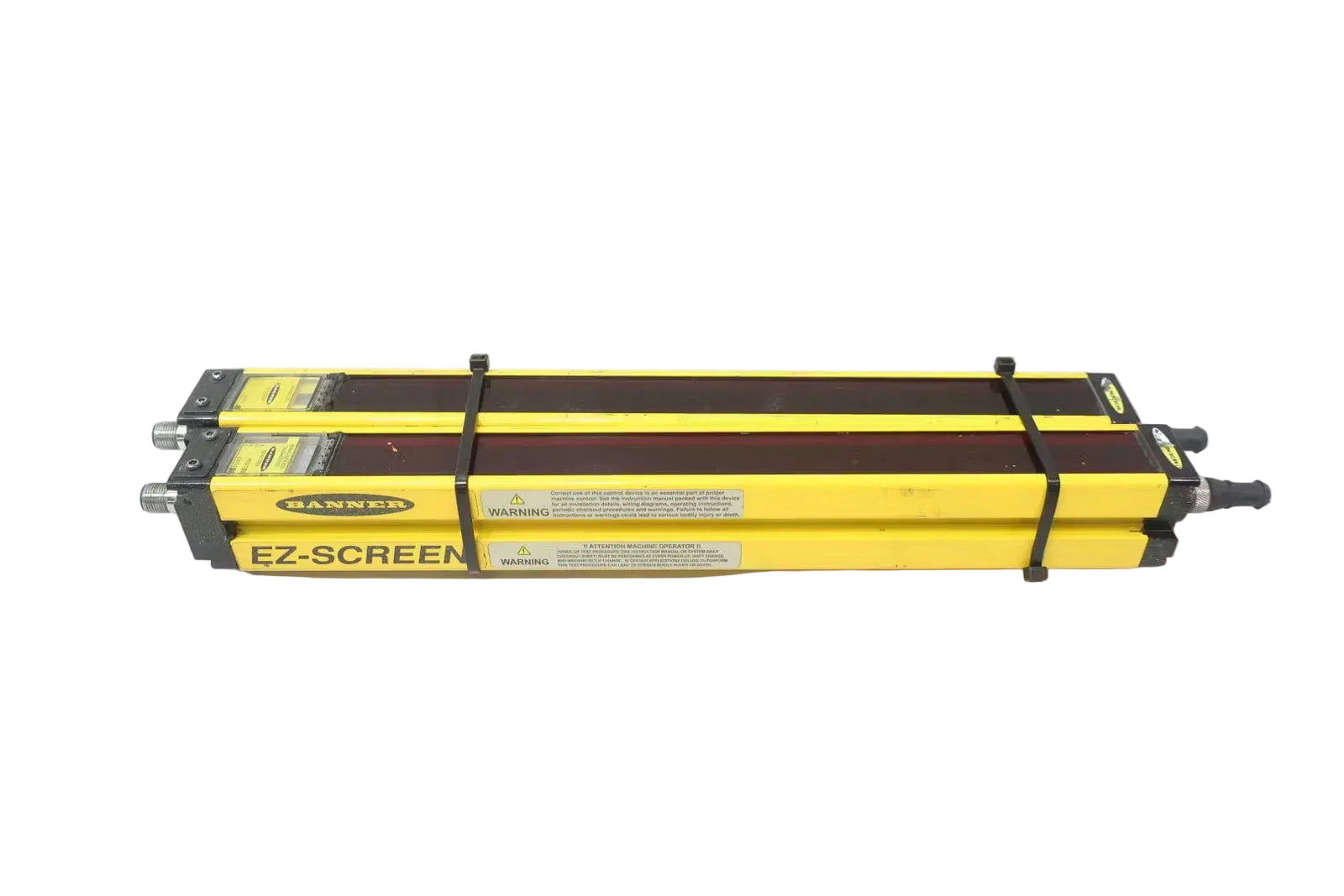

SLSCE30-300Q8 | Banner Engineering Type 4 Safety Light Curtain Emitter 300 mm
- Regular price
- $2,749.00
- Sale price
- $2,749.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SLSCE30-300Q8
Description
The Banner Engineering SLSCE30-300Q8 is a safety light curtain emitter designed for industrial machine guarding applications. It operates on a 24 VDC supply and provides a 300 mm defined protective height with a 30 mm resolution. This device is used to detect object entry into hazardous areas and support compliant personnel protection systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors & Switches |
| Part Number | SLSCE30-300Q8 |
| Subcategory | Safety Light Curtain |
| Device Type | Emitter |
| Safety Type | Type 4 |
| SIL Rating | SIL3 |
| Performance Level | PL e |
| Resolution | 30 mm |
| Defined Area Height | 300 mm |
| Operating Distance | 0.1 to 18 m |
| Response Time | 11 ms |
| Supply Voltage | 24 VDC |
| Supply Current | 100 mA max |
| Ingress Protection | IP65 |
| Connector Type | M12, 8-pin |
| Housing Material | Aluminum |
| Operating Temperature | 0 to +55 °C |
| Overall Length | 372 mm |
| Weight | 2.00 lbs |
Information About SLSCE30-300Q8
The SLSCE30-300Q8 is part of the EZ-SCREEN LS series from Banner Engineering and functions as an emitter within a safety light curtain system. It is built with a robust aluminum housing and is rated IP65 for use in industrial environments. The unit is designed to operate in Type 4 safety applications and meets international functional safety standards. It is commonly installed in manufacturing and automation systems where controlled access to hazardous zones is required.
Key Features:
-
Type 4 safety device: Suitable for high-risk machine guarding applications
-
30 mm resolution: Enables reliable detection for personnel protection
-
300 mm defined area height: Covers compact hazardous access points
-
Long operating range: Supports distances up to 18 meters
-
24 VDC supply voltage: Compatible with standard industrial control systems
-
IP65 protection rating: Ensures durability in industrial environments
-
Cascade capability: Allows integration with additional safety devices
The SLSCE30-300Q8 delivers the reliability and precision required for industrial safety light curtain systems.
