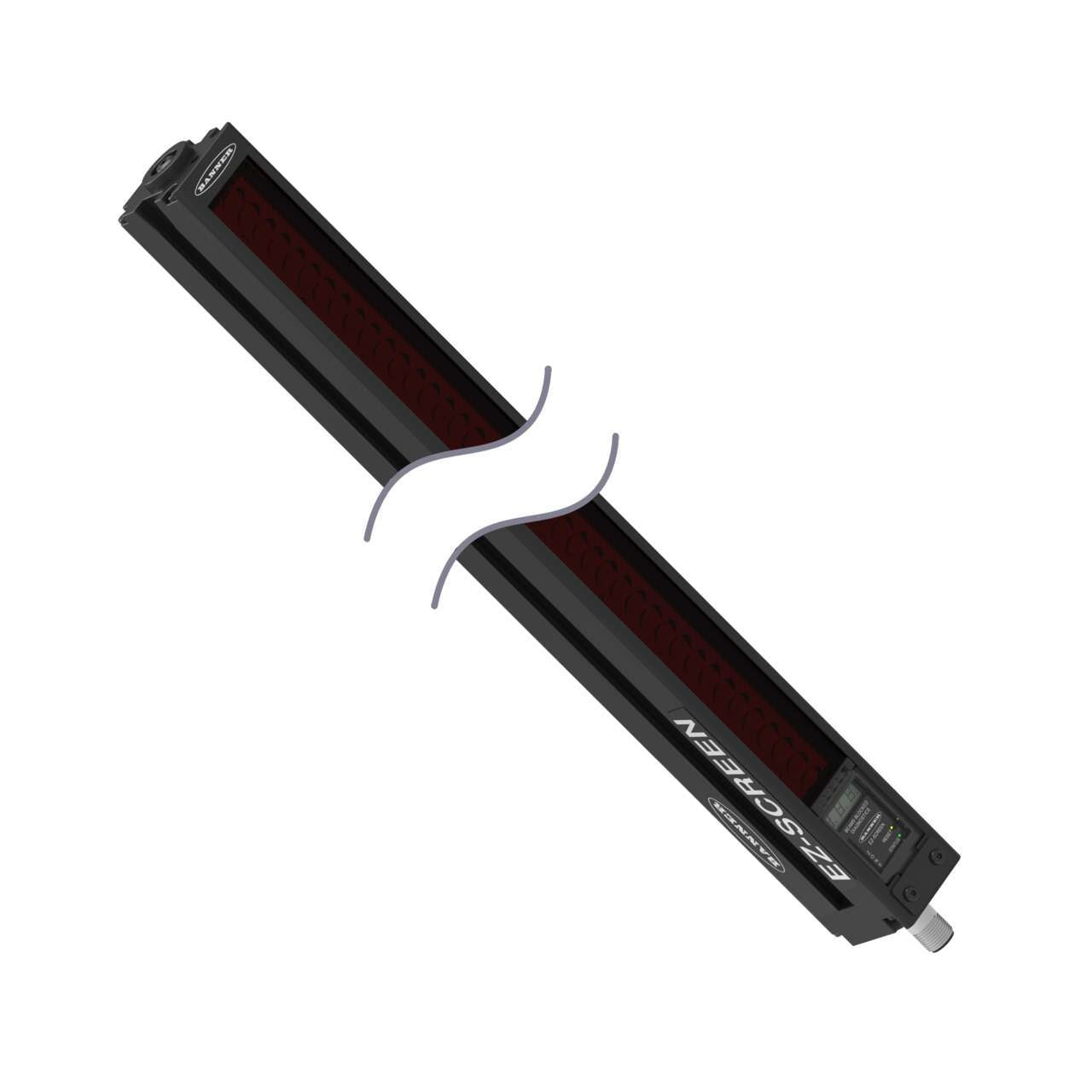

SLSR14-150Q8 | Banner Engineering Type 4 Safety Light Curtain Receiver 14 mm Resolution

Description

The Banner Engineering SLSR14-150Q8 is a Type 4 safety light curtain receiver designed for machine guarding and personnel protection applications. It provides 14 mm resolution with a defined protective height of 150 mm and operates over distances up to 6 meters. The device is intended for integration into industrial safety systems requiring SIL3 and PL e performance levels.

Technical Specifications

Information About SLSR14-150Q8

The SLSR14-150Q8 is a receiver unit from Banner Engineering’s EZ-SCREEN Type 4 safety light curtain family. It is designed to work with compatible emitters to create a protective sensing field for hazardous machine areas. The unit features a rugged aluminum housing with IP65 protection for industrial environments. It supports selectable trip or latch outputs and integrates monitoring functions required for certified safety applications.

Key Features:

• Type 4 safety rating: Complies with IEC 61496-2 requirements

• 14 mm resolution: Suitable for finger protection applications

• 150 mm protective height: Covers compact hazardous zones

• Operating range up to 6 m: Flexible installation options

• Fast response time: 11 ms reaction for safety shutdowns

• IP65 enclosure: Protection against dust and water ingress

• SIL3 and PL e rated: Meets high-level machine safety standards

The SLSR14-150Q8 delivers the reliability and precision required for industrial machine safety light curtain systems.
