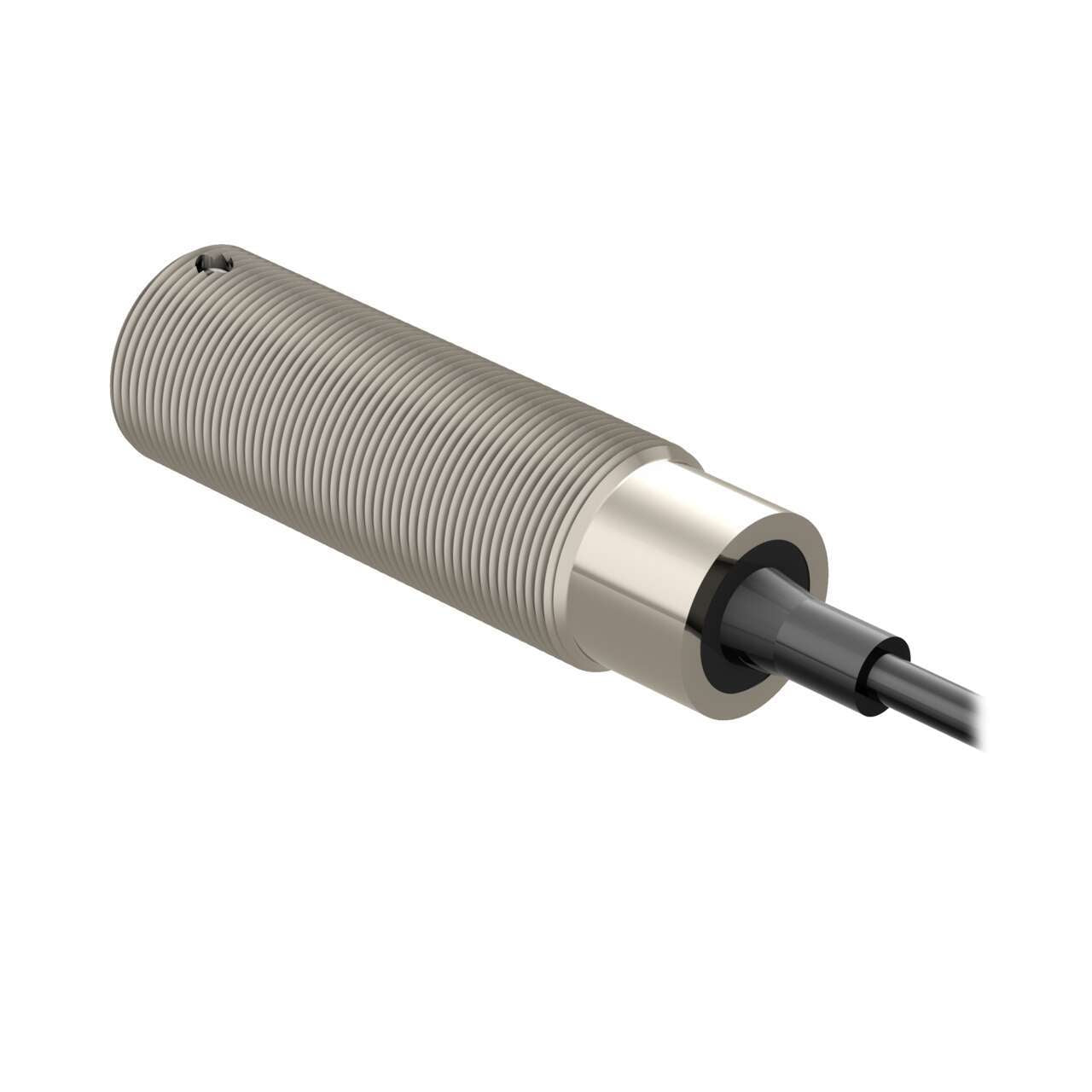

SM30SRLMHS | Banner Engineering SM30 Stainless Steel Photoelectric Receiver
- Regular price
- $417.00
- Sale price
- $417.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SM30SRLMHS
Description
The Banner Engineering SM30SRLMHS is a stainless steel barrel receiver designed for opposed-mode photoelectric sensing in industrial automation environments. Using an infrared LED sensing beam, this receiver supports long-distance object detection with reliable discrete output performance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors |
| Part Number | SM30SRLMHS |
| Subcategory | Photoelectric Sensors |
| Series | SM30 Series |
| Sensor Type | Photoelectric Receiver |
| Sensing Mode | Opposed (Receiver) |
| Light Source | Infrared LED |
| Supply Voltage | 10–30 VDC |
| Output Type | Discrete |
| Output Configuration | Bipolar NPN/PNP |
| Maximum Sensing Distance | Up to 150,000 mm (with emitter) |
| Response Time | 10 ms |
| Repeatability | 1000 µs |
| Operation Mode | Light / Dark Operate |
| Housing Style | Barrel |
| Housing Material | Stainless Steel |
| Barrel Diameter | 30 mm |
| Connection Type | Cable |
| Cable Length | 2 m |
| Lens Material | Acrylic |
| Indicators | LED(s) |
| IP Rating | IP67 |
| NEMA Rating | NEMA 4X |
| Operating Temperature | -40°C to 70°C |
| Operating Humidity | Up to 90% RH at 50°C |
| Weight | 1.00 lb |
Information About SM30SRLMHS
The SM30SRLMHS is part of Banner Engineering’s SM30 Series, which is engineered for durable and high-performance photoelectric sensing applications. This unit functions specifically as a receiver in opposed-mode systems, working in conjunction with a compatible emitter to detect object interruption over extended distances. It operates on a 10–30 VDC power supply and provides bipolar NPN/PNP discrete outputs for flexible PLC integration. Housed in a stainless steel barrel with IP67 and NEMA 4X ratings, it is well suited for harsh industrial environments requiring chemical resistance and long-term reliability.
Key Features:
- Opposed-Mode Receiver Design: Functions as a dedicated receiver for long-distance photoelectric sensing systems.
- Infrared LED Sensing Beam: Provides stable, non-visible detection suitable for industrial applications.
- Long Sensing Capability: Supports opposed-mode detection distances up to 150 meters with a compatible emitter.
- Bipolar NPN/PNP Outputs: Enables flexible integration with a wide range of control systems.
- Stainless Steel Barrel Housing: Offers enhanced durability and resistance to harsh industrial conditions.
- IP67 and NEMA 4X Protection: Ensures reliable operation in environments exposed to moisture and contaminants.
- Wide Operating Temperature Range: Designed for dependable performance from -40°C to 70°C.
The SM30SRLMHS delivers the reliability and precision required for long-range opposed photoelectric sensing in industrial automation systems.
