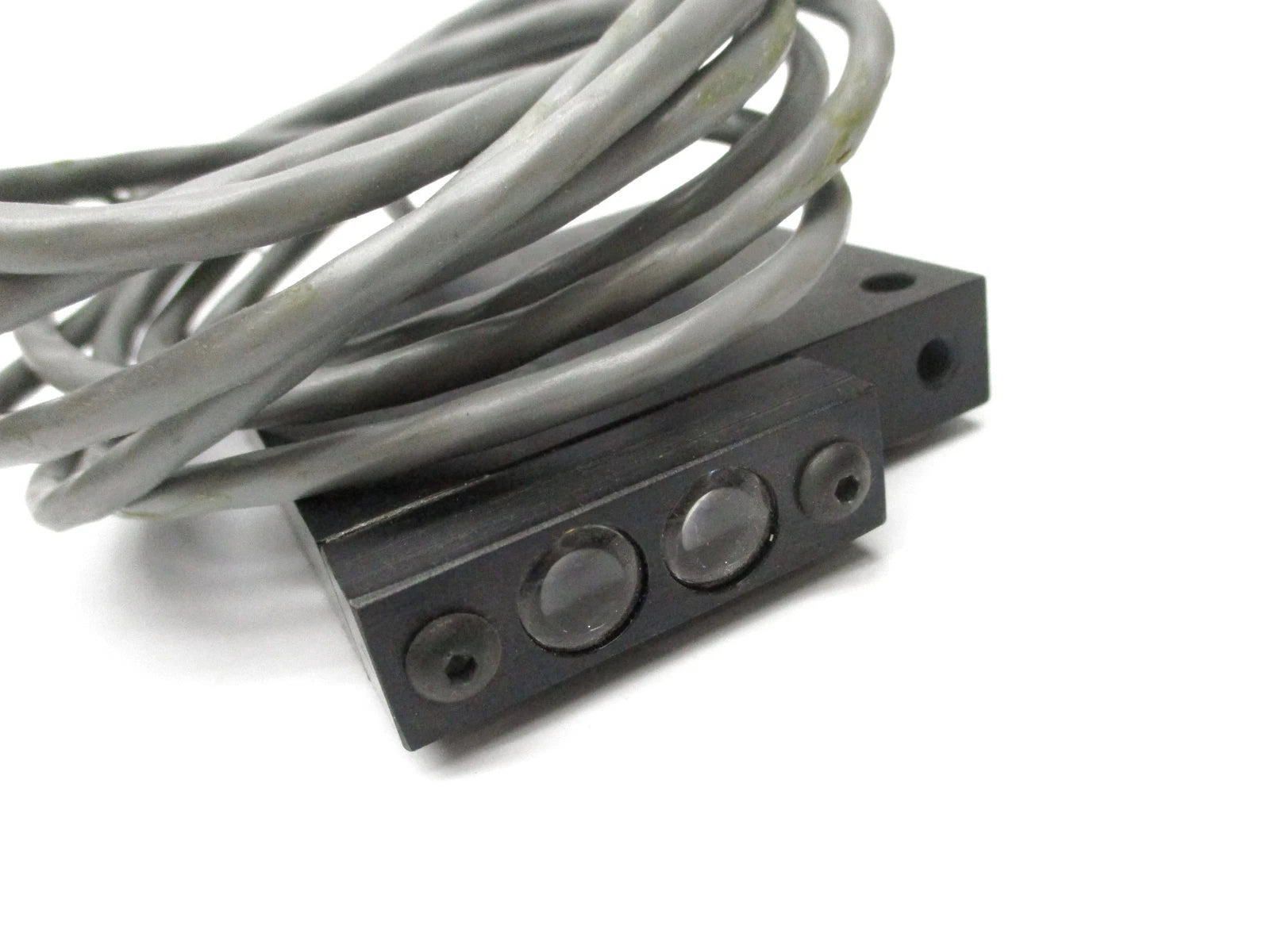

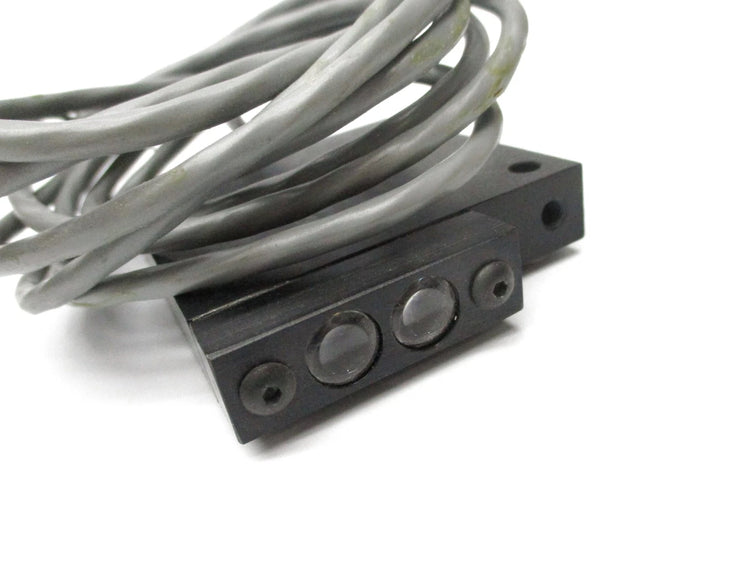

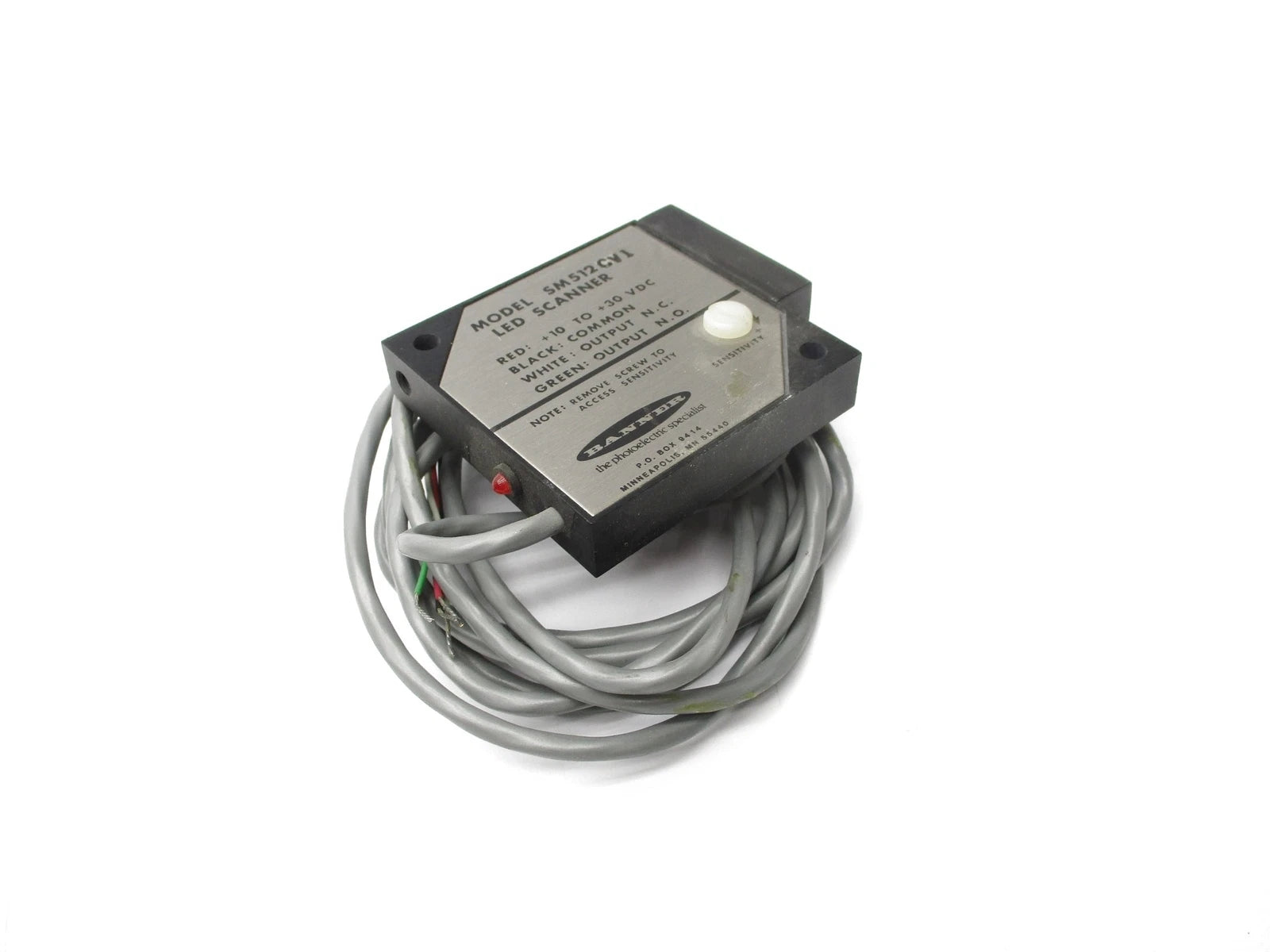

SM512CV1 | Banner Engineering SM512 Convergent Photoelectric Sensor 650 nm
- Regular price
- $515.00
- Sale price
- $515.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SM512CV1
Description
The Banner Engineering SM512CV1 is a convergent-mode photoelectric sensor designed for precise object detection at a fixed focal point using a visible red light beam. It operates on a wide 10–30 VDC supply range and provides complementary NPN outputs for flexible control integration. This sensor is well-suited for short-range detection tasks requiring accurate target discrimination.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors |
| Part Number | SM512CV1 |
| Subcategory | Photoelectric Sensors |
| Series | SM512 Series |
| Sensor Type | Convergent Photoelectric |
| Light Source | Visible Red LED |
| Wavelength | 650 nm |
| Focal Point | 32 mm |
| Supply Voltage | 10–30 VDC |
| Output Type | Complementary NPN |
| Input/Output | Discrete |
| Connection | 2 m (6.5 ft) Cable |
| Sensing Mode | Convergent |
| Application | Short-Range Object Detection |
| Weight | 0.35 lbs |
Information About SM512CV1
The SM512CV1 is part of Banner Engineering’s SM512 Series of compact photoelectric sensors engineered for reliable proximity sensing in industrial automation environments. It features convergent sensing technology with a defined focal point that allows accurate detection while minimizing background interference. The sensor uses a visible red LED to simplify alignment and setup during installation. Its cable-connected design and solid-state electronics support dependable operation in machinery, packaging, and material handling applications.
Key Features:
- Convergent Sensing Technology: Detects objects precisely at a fixed focal distance to reduce background effects.
- Visible Red Light Source: 650 nm LED simplifies alignment and visual confirmation of the sensing area.
- Defined Focal Point: Optimized for detection at approximately 32 mm from the sensor face.
- Wide DC Supply Range: Operates reliably from 10 to 30 VDC in standard control systems.
- Complementary NPN Outputs: Provides both normally open and normally closed logic options.
- Integrated Cable Connection: Includes a 2 m (6.5 ft) cable for straightforward installation.
The SM512CV1 delivers the reliability and precision required for short-range convergent photoelectric sensing in industrial automation applications.
