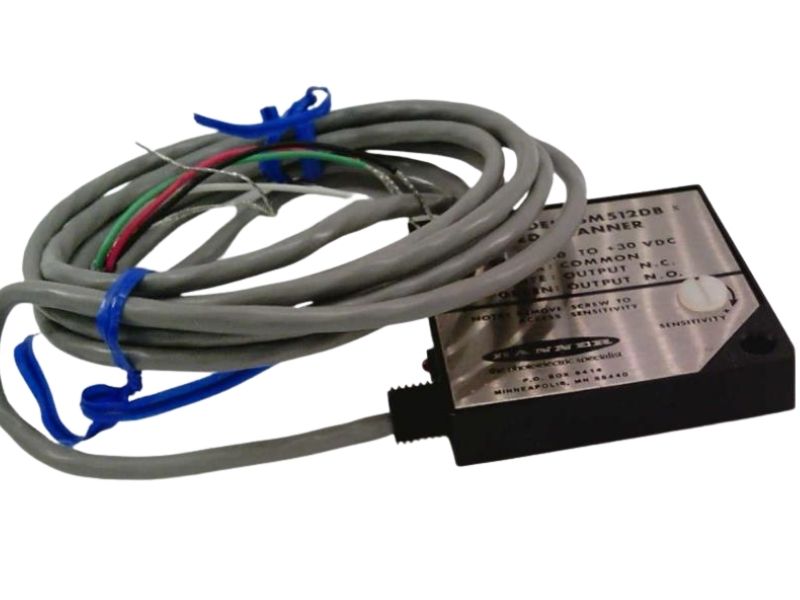

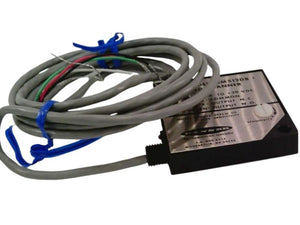

SM512DBX | Banner Engineering Diffuse Photoelectric Sensor High-Power Scanner
- Regular price
- $372.00
- Sale price
- $372.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SM512DBX
Description
The Banner Engineering SM512DBX is a diffuse-mode photoelectric sensor designed for proximity detection in industrial automation systems. This scanner provides higher sensing power than standard models, enabling reliable object detection at extended distances. It is commonly used in machine control and monitoring applications where precise and repeatable sensing is required.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors |
| Part Number | SM512DBX |
| Subcategory | Photoelectric Sensors |
| Sensing Mode | Diffuse Proximity |
| Sensing Range | 15 in (38 cm), up to 24 in with optional lens |
| Response Time | 10 ms |
| Repeatability | 0.3 ms |
| Supply Voltage | 10–30 VDC |
| Output Type | Complementary NPN |
| Housing Material | Die-cast metal |
| Mounting Style | Side mounting |
| Product Status | Discontinued by Manufacturer |
| Weight | 0.56 lbs |
Information About SM512DBX
The SM512DBX is a photoelectric scanner manufactured by Banner Engineering as part of the SM512 sensor series. It features a diffuse proximity sensing mode optimized for detecting objects without reflectors. The sensor is built in a rugged, narrow metal housing suitable for industrial environments and side mounting installations. Its high excess gain and fast, repeatable response make it suitable for precise automation and control tasks.
Key Features:
-
Diffuse sensing mode: Detects objects directly without the need for a reflector
-
Extended sensing range: Standard range up to 15 inches with optional extension to 24 inches
-
High excess gain: Provides stronger detection capability than standard SM512 models
-
Fast response time: 10 ms response supports dynamic automation processes
-
Excellent repeatability: Response repeatability of 0.3 ms for precise positioning
-
Industrial power supply range: Operates from 10 to 30 VDC
-
Rugged metal housing: Die-cast construction designed for industrial use
The SM512DBX delivers the reliability and precision required for industrial photoelectric proximity sensing applications.
