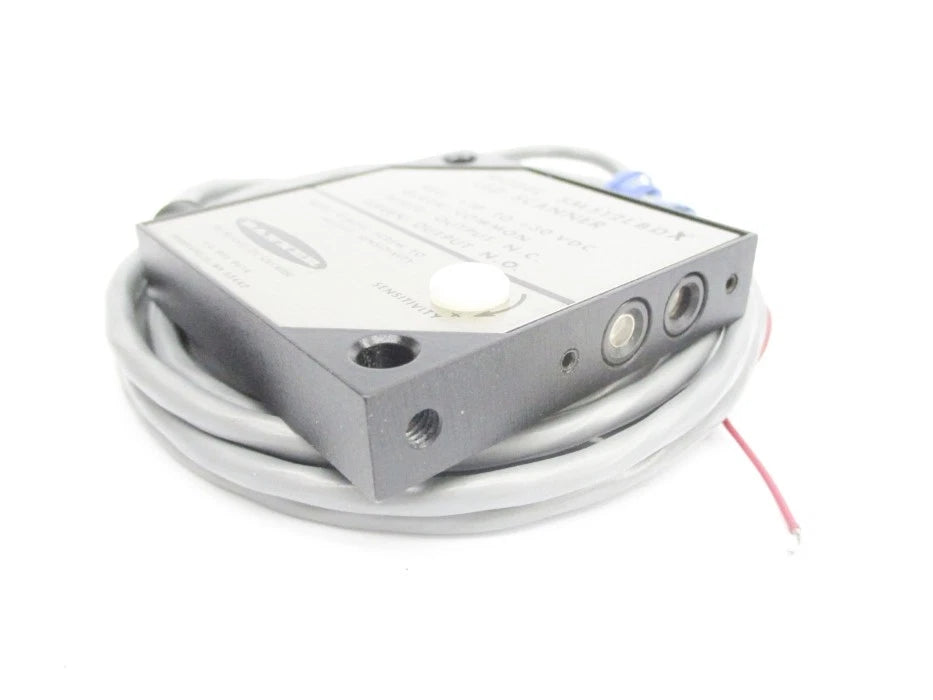

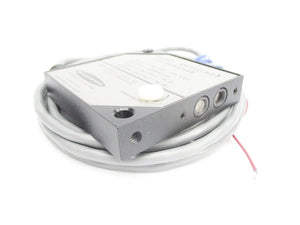

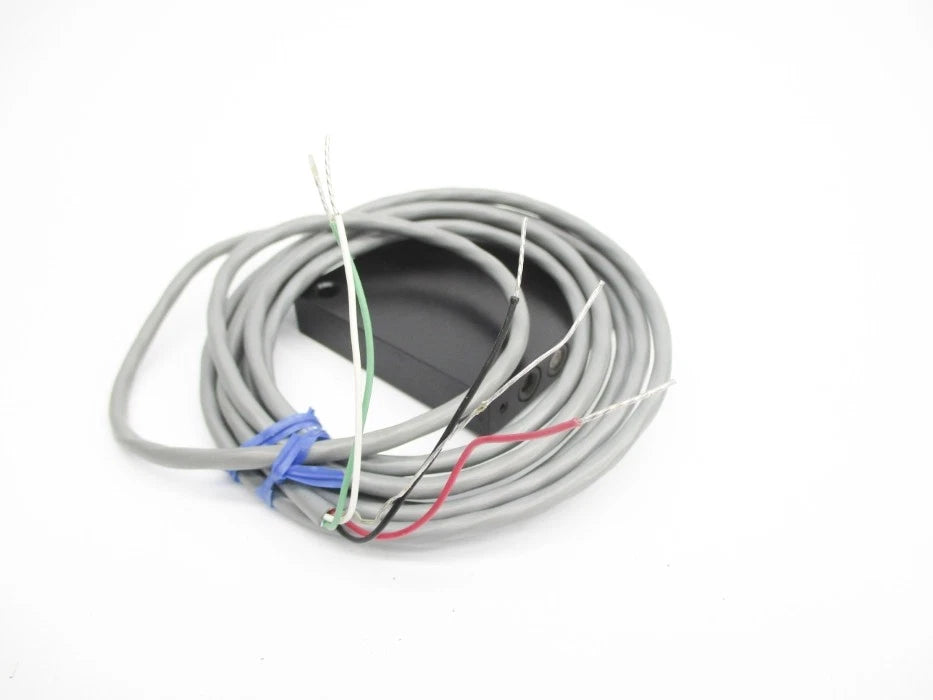

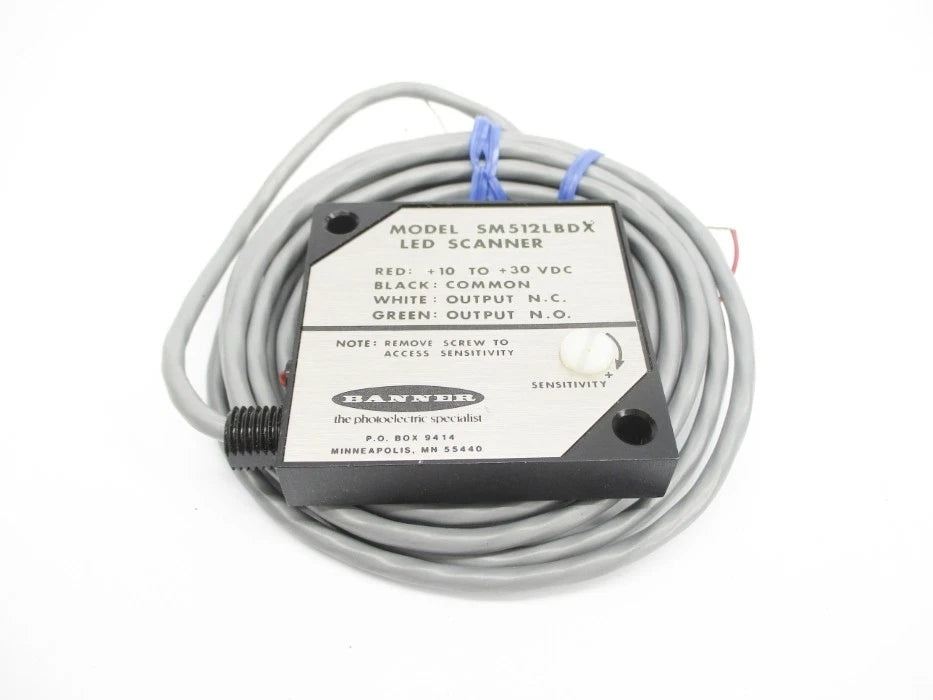

SM512LBDX | Banner Engineering SM512 Diffuse Photoelectric Scanner, 150 mm
- Regular price
- $539.00
- Sale price
- $539.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SM512LBDX
Description
The Banner Engineering SM512LBDX scanner is a diffuse photoelectric sensor designed for reliable short-range object detection in industrial automation systems. Operating with an infrared 880 nm light source, this sensor provides stable complementary NPN output performance for precise detection tasks up to 150 mm.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors |
| Part Number | SM512LBDX |
| Subcategory | Photoelectric Sensors |
| Series | SM512 Series |
| Product Type | Photoelectric Scanner |
| Sensing Mode | Diffuse |
| Light Source | Infrared LED, 880 nm |
| Sensing Range | 150 mm |
| Supply Voltage | 10–30 VDC |
| Output Type | Complementary NPN |
| Connection Type | Integral Cable |
| Cable Length | 2 m (6.5 ft) |
| Application Use | Industrial Object Detection |
| Operating Environment | Industrial |
| Weight | 0.5 lb |
Information About SM512LBDX
The SM512LBDX is part of Banner Engineering’s SM512 Series, developed for dependable photoelectric sensing in compact industrial applications. This scanner uses a divergent diffuse sensing method, allowing direct detection of objects without the need for reflectors. It operates on a 10–30 VDC power supply and features complementary NPN outputs for flexible integration with PLCs and control circuits. Supplied with a 2-meter attached cable, it is designed for straightforward installation and consistent performance in factory automation environments.
Key Features:
- Diffuse Photoelectric Sensing: Detects objects directly within a defined sensing range.
- Infrared Light Source: Uses an 880 nm infrared beam for stable, non-visible detection.
- 150 mm Sensing Range: Optimized for short-range object detection applications.
- Complementary NPN Output: Supports reliable discrete signal switching for control systems.
- Wide DC Supply Range: Operates on 10–30 VDC for industrial compatibility.
- Integrated 2 m Cable: Simplifies wiring and installation in control panels and machinery.
- SM512 Series Design: Compact and proven sensor platform for industrial automation.
The SM512LBDX delivers the reliability and precision required for short-range photoelectric detection in industrial automation and material handling applications.
