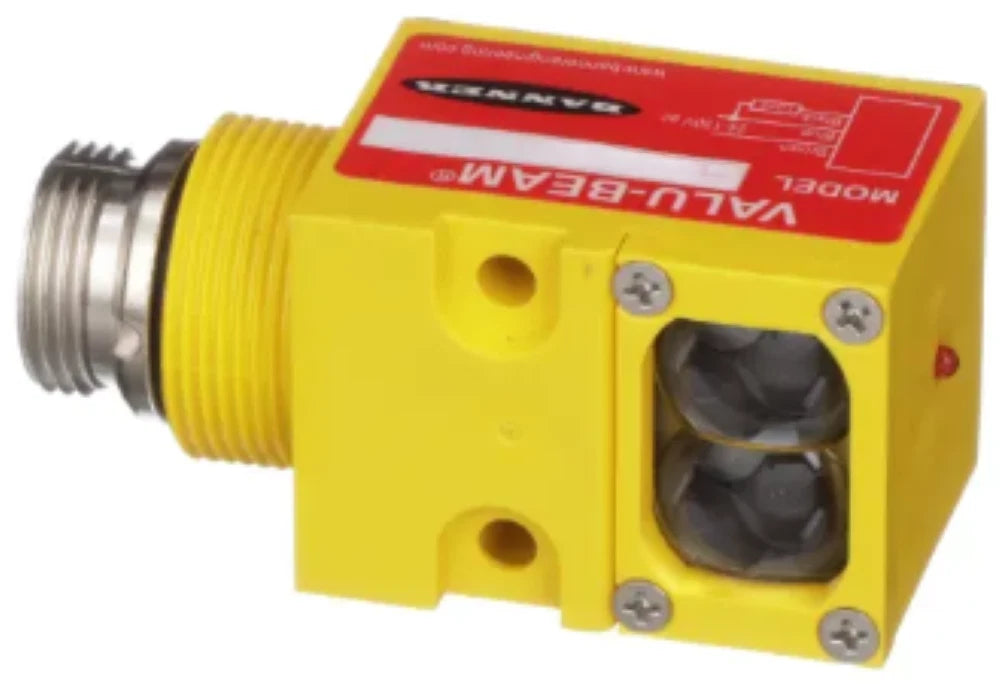

SM91EQDH | Banner Engineering VALU-BEAM 912 Through-Beam Emitter, 4-Pin M12
- Regular price
- $427.00
- Sale price
- $427.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SM91EQDH
Description
The Banner Engineering SM91EQDH is a DC-powered photoelectric emitter designed for through-beam sensing applications. It operates within a 10–30 VDC supply range and connects via a 4-pin M12 quick-disconnect connector. The device is intended for use with a compatible receiver to form a complete opposed-mode sensing system.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors & Switches |
| Part Number | SM91EQDH |
| Subcategory | Photoelectric |
| Series | VALU-BEAM 912 |
| Sensing Mode | Through-Beam (Emitter) |
| Maximum Sensing Range | 60 m (with compatible receiver) |
| Supply Voltage | 10–30 VDC |
| Connection Type | 4-pin M12 Integral Quick Disconnect |
| Housing Material | Reinforced Thermoplastic Polyester (PBT) |
| Environmental Rating | IP66 |
| NEMA Rating | NEMA 1, 2, 3, 3S, 4, 4X, 12, 13 |
| Operating Temperature | -20°C to +70°C |
| Weight | 2 kg |
Information About SM91EQDH
The SM91EQDH is part of the Banner Engineering VALU-BEAM 912 series, developed for long-range through-beam detection in industrial automation environments. This unit functions exclusively as the emitter component and must be paired with a corresponding receiver to complete the sensing circuit. It supports sensing distances up to 60 meters when used with a compatible receiver. The reinforced thermoplastic polyester housing and multiple NEMA/IP ratings allow installation in demanding industrial conditions.
Key Features:
-
Through-beam emitter design: Intended for opposed-mode sensing systems.
-
Long sensing range: Supports distances up to 60 m with matching receiver.
-
DC-only operation: Operates on 10–30 VDC supply voltage.
-
M12 quick-disconnect connector: 4-pin Euro-style connection for simplified wiring.
-
Reinforced thermoplastic housing: Provides durability in industrial environments.
-
High environmental protection: Rated for IP66 and multiple NEMA enclosure types.
-
Wide operating temperature range: Designed for -20°C to +70°C environments.
The SM91EQDH delivers the reliability and precision required for industrial through-beam photoelectric sensing applications.
