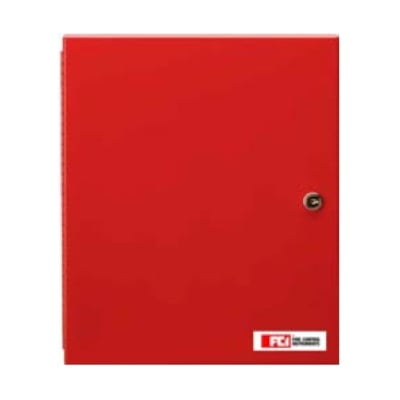

SNAC-6 | Gamewell-FCI Supplementary Notification Appliance Circuit Panel, 6A Output
- Regular price
- $1,699.00
- Sale price
- $1,699.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: SNAC-6
Description
The Gamewell-FCI SNAC-6 is a supplementary notification appliance circuit panel that provides up to 6 amps of power across multiple Class A or Class B circuits. It integrates with existing notification appliance circuits, offering synchronization, temporal pattern outputs, and full supervision for reliable fire alarm signaling.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Gamewell-FCI |
| Category | Fire Alarm Systems |
| Part Number | SNAC-6 |
| Subcategory | NAC Panels |
| Type | Supplementary notification appliance circuit panel |
| Output Capacity | 6 A total |
| Output Circuits | 2 Class A (Style Z), 4 Class B (Style Y), or 1 Class A + 2 Class B |
| Input Source | 1 or 2 existing Class A/B NACs |
| Operating Voltage | 9–32 VDC |
| Operation Modes | Coded or non-coded |
| Temporal Pattern | Programmable ANSI S3.41 temporal Class B output from non-coded input |
| Synchronization | Built-in sync for strobes from 3 manufacturers |
| Ground Fault Detection | Integral supervision with ground fault detection |
| Trouble Reporting | Form “C” contacts, delayed AC failure indication |
| Compliance | UL Listed fire alarm accessory |
| Applications | Expands NAC capacity for FCI and other UL Listed fire alarm systems |
| Dimensions | 16.00 × 12.25 × 3.00 in |
| Weight | 6.5 lbs |
Information About SNAC-6
The SNAC-6 is a UL Listed supplementary notification appliance circuit panel engineered to expand the signaling capabilities of fire alarm systems. It provides up to 6 amps of regulated output that can be distributed across Class A or Class B circuits, depending on installation needs. With the ability to synchronize strobes from three leading manufacturers, it ensures consistent visual signaling across facilities. Additional features include ANSI S3.41 temporal pattern outputs, coded/non-coded operation, ground fault detection, and Form “C” trouble contacts. Designed for compatibility with Gamewell-FCI and other UL Listed control panels, the SNAC-6 enhances both capacity and reliability in life safety applications.
Key Features:
- High current output: Provides 6 amps of total NAC power for supporting multiple notification appliances.
- Flexible circuit configuration: Supports 2 Class A, 4 Class B, or mixed 1 Class A and 2 Class B circuits to fit system requirements.
- Input circuit integration: Activates through one or two existing Class A or B notification appliance circuits for seamless expansion.
- Coded and non-coded operation: Allows flexible control options, including compatibility with coded inputs.
- Programmable temporal outputs: Provides ANSI S3.41-compliant temporal Class B outputs from non-coded inputs.
- Strobe synchronization: Features built-in synchronization for appliances from three major manufacturers.
- Supervised operation: Equipped with ground fault detection to ensure circuit integrity.
- Trouble monitoring: Includes Form “C” trouble contacts with delayed AC failure indication for enhanced system reporting.
- UL Listed accessory: Approved for use with Gamewell-FCI and other UL Listed fire alarm systems.
- Durable enclosure: Measures 16 × 12.25 × 3 inches and weighs 6.5 lbs for dependable installation.
The SNAC-6 delivers the reliability and precision required for expanding NAC capacity and synchronization in commercial and institutional fire alarm systems.
