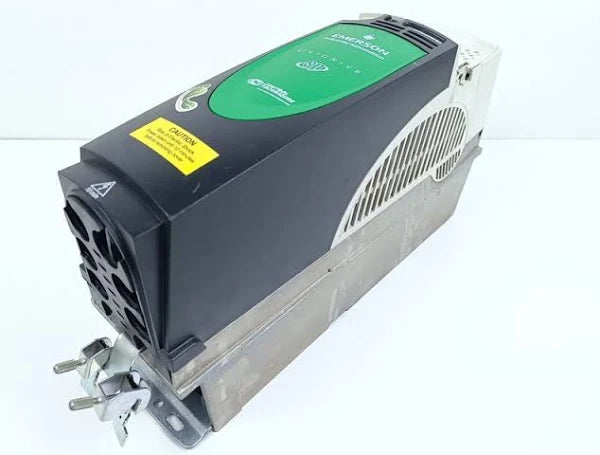

SP1401 | Control Techniques Variable Frequency AC Drive / Servo Drive
- Regular price
- $1,939.00
- Sale price
- $1,939.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: SP1401
Description
The SP1401 by Control Techniques is a versatile Variable Frequency AC Drive/Servo Drive, offering precise control and reliability for industrial applications.
Technical Specifications
| Brand | CONTROL TECHNIQUES |
| Category | Drives |
| Part Number | SP1401 |
| Subcategory | Drive |
| Main function | Variable Speed/Frequency Drive (VSD/VFD) / Inverter |
| Product series / family name | Unidrive SP |
| Network frequency | (Supply input) 48-65 Hz (output) 0-550 Hz |
| Functions | Variable Speed/Frequency Drive (VSD/VFD) |
| Design | single Safe Torque Off (STO) air cooling |
| Supply voltage (AC) | 380Vac-480Vac (400Vac / 415Vac) |
| Type of network | 3-phase input (3P) |
| Rated current | 2.8A (Normal duty) 2.1A (Heavy-duty) |
| Rated active power (kW) | 1.1kW (Normal duty) 0.75kW (Heavy-duty) |
| Rated power (HP) | 1.5HP / 1-1/2HP (Normal duty) 1HP (Heavy-duty) |
| Communication protocol | Modbus RTU RS-485 |
| Mounting mode | wall-mounted |
| Digital inputs | 3 x digital inputs (0-24Vdc) 3 x digital inputs (0-24Vdc) |
| Digital outputs | 3 x digital outputs (0-24Vdc; source) 1 x digital output (2A / 240Vac; source; rly. contact type) |
| Analog inputs | 1 x analog input (-9.8Vdc...9.8Vdc; differential (for single-ended; connect term.6 to term.3); 16-bit) 2 x analog inputs (0-20mA / 4-20mA / -9.8Vdc...9.8Vdc; single-ended; 10-bit conversion resolution) |
| Analog outputs | 2 x analog outputs (0-20mA / 4-20mA / -10Vdc...10Vdc; single-ended; source; 10-bit conversion resolution) |
| Degree of protection | P20 NEMA 1 |
| Ambient air temperature for operation | 0°C...+40 °C |
Information About SP1401
The Unidrive SP1401 by Control Techniques is a high-performance AC drive engineered to deliver precision control in industrial settings. Designed with efficiency and reliability in mind, this drive is a powerhouse in optimizing motor performance across a wide range of applications.
Features:
The Unidrive SP1401 boasts a compact frame size coupled with powerful performance capabilities, making it an ideal choice for industrial applications where space is at a premium. With a typical motor output power of 3 HP and the ability to operate within an input voltage range of 380 to 480VAC, this drive offers versatility and adaptability to various operational requirements. Whether it's normal duty or heavy-duty applications, the SP1401 delivers consistent performance, thanks to its maximum continuous current ratings of 2.8A for normal duty and 2.1A for heavy duty. Additionally, its precise control ensures optimal motor efficiency and reliability, enhancing overall system performance and productivity.
Efficiency and Reliability:
Control Techniques has engineered the Unidrive SP1401 with a focus on efficiency and reliability. By offering precise control over motor output power, the drive minimizes energy wastage, resulting in cost savings and environmental benefits. Its robust construction and advanced features ensure long-term reliability, even in demanding industrial environments where uptime is critical. Furthermore, the SP1401's user-friendly interface and intuitive controls simplify operation and maintenance, reducing downtime and optimizing productivity.
Versatility in Applications:
From conveyor systems and pumps to fans and compressors, the Unidrive SP1401 finds application across a wide range of industrial sectors. Its ability to seamlessly adapt to different motor types and operational conditions makes it a versatile solution for diverse industrial setups. Whether it's regulating motor speed, torque, or direction, the SP1401 excels in providing precise control and optimizing performance, thereby meeting the unique needs of various industrial processes.
Manufacturer information
Control Techniques, a leading manufacturer of electric drive technologies, specializes in innovative motor control solutions. Established in 1973, the company focuses on delivering reliable and high-performance drives for industrial applications worldwide.
