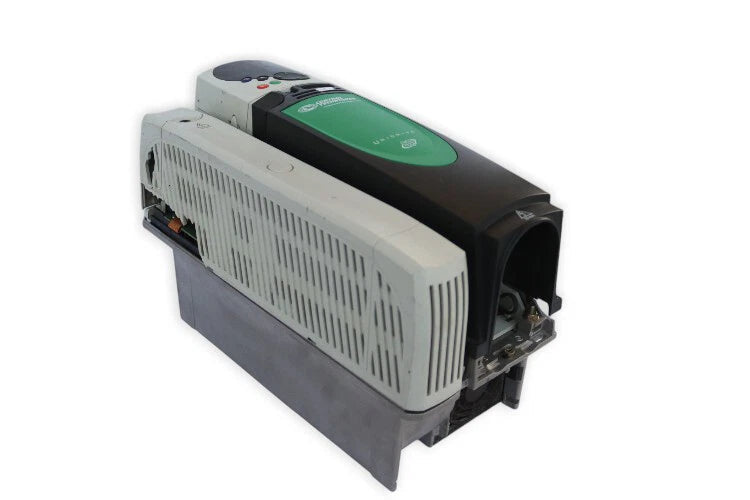

SP2401 | Control Techniques Unidrive SP 10 HP High-Performance AC & Servo Drive
- Regular price
- $1,897.00
- Sale price
- $1,897.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SP2401
Description
The Control Techniques SP2401 is a high-performance AC variable frequency and servo drive from the Unidrive SP series, designed for demanding industrial motion and process control applications. Rated for 10 hp normal duty operation at 380/480 V AC, it supports advanced motor control modes including open-loop vector, closed-loop induction, servo, and regenerative control. The SP2401 delivers precise, flexible drive performance in a compact IP20 enclosure.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Control Techniques (Nidec / Emerson) |
| Category | AC Variable Frequency & Servo Drives |
| Part Number | SP2401 |
| Subcategory | High-Performance AC & Servo Drives |
| Series | Unidrive SP |
| Input Voltage | 380/480 V AC (±10%) |
| Input Phases | 3-phase |
| Input Frequency | 50/60 Hz |
| Normal Duty Power Rating | 10 HP |
| Heavy Duty Power Rating | 7.5 HP |
| Output Current (Normal Duty) | 15.3 A |
| Output Current (Heavy Duty) | 13 A |
| Peak Output Current | Up to 22.7 A |
| Control Modes | Open-loop vector, closed-loop induction, servo, regenerative, V/Hz, rotor flux |
| Feedback Types | Incremental encoder, absolute encoder |
| Onboard PLC | Yes |
| PID Controller | Integrated |
| Communication (Standard) | Modbus RTU |
| Communication (Optional) | CANopen, DeviceNet, EtherCAT, EtherNet/IP, PROFIBUS DP, PROFINET |
| Analog Inputs | 3 |
| Analog Outputs | 2 |
| Digital Inputs | 3 |
| Digital Outputs | 1 |
| Relay Outputs | 1 |
| Enclosure Rating | IP20 |
| Cooling Method | Forced air |
| Operating Temperature | 0 to 50 °C |
| Dimensions (H × W × D) | Approx. 368 × 155 × 219 mm |
| Weight | Approx. 7.0 kg (15.4 lbs) |
Information About SP2401
The SP2401 is part of the Control Techniques Unidrive SP family, engineered to combine servo drive performance with the flexibility of a universal AC drive. This series is widely used in applications requiring accurate torque, speed, and position control across a variety of motor types. The drive integrates onboard PLC functionality, PID control, and extensive I/O to reduce the need for external controllers. With support for multiple feedback devices and a broad range of option modules, the SP2401 can be adapted to complex automation architectures in industries such as packaging, material handling, and process control.
Key Features:
- Unidrive SP Series Platform: Advanced drive technology for high-performance industrial applications.
- 10 HP Normal Duty Rating: Supports demanding motor loads with stable output performance.
- Wide Control Modes: Includes open-loop vector, closed-loop induction, servo, regenerative, rotor flux, and V/Hz control.
- 380/480 V AC Three-Phase Input: Designed for standard industrial power systems.
- Integrated PLC and PID Control: Enables localized automation and process regulation.
- Encoder Feedback Support: Compatible with incremental and absolute encoders for precise control.
- Expandable Communication Options: Supports CANopen, DeviceNet, EtherCAT, EtherNet/IP, PROFIBUS, and PROFINET via option cards.
- Flexible I/O Configuration: Multiple analog and digital inputs/outputs with relay support.
- Compact IP20 Design: Optimized for control cabinet installation with efficient forced-air cooling.
The SP2401 delivers the reliability and precision required for advanced motor control, multi-axis coordination, and high-dynamic industrial automation systems.
