SP4-LOC-FB | Eaton SafePath4 Remote Microphone & Local Operator Console, Flush-Mount

Description

The Eaton SP4-LOC-FB is a remote microphone and local operator console designed for SafePath4 SP40/2 and SP40S voice evacuation panels. It features eight push-button controls with color-coded ON/OFF status for activating digital messages. This unit enables precise, user-friendly operation of facility communication systems in emergency situations.

Technical Specifications

Information About SP4-LOC-FB

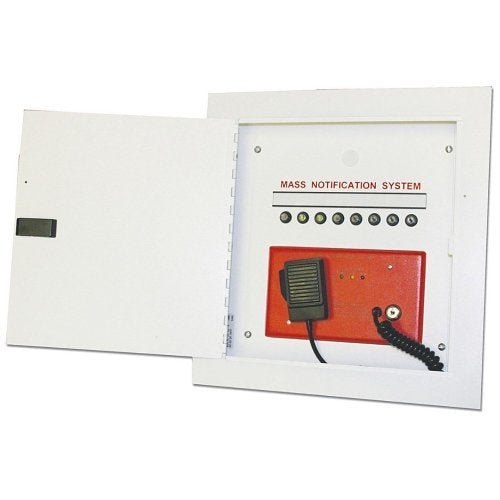

The SP4-LOC-FB is part of Eaton’s SafePath4 SP series and integrates the SPRM Remote Microphone Module for direct system control. It includes a flush-mount console with eight push buttons that change from black (OFF) to green (ON) for clear visual status. The console is powered by 24V DC from the SP40S panel and ensures all output circuitry is power-limited for safety. Designed for facility-wide voice evacuation, it supports optional emergency cut-off functions and message labeling for flexible system management.

Key Features

• Integrated Remote Microphone: Includes SPRM module for voice announcements and system control.
• Push-Button Controls: Eight black Push On / Push Off buttons for message activation.
• Color-Coded Status: Buttons change from black (OFF) to green (ON) for visual clarity.
• Optional Emergency Cutoff: Supports red mushroom push button for HVAC shutoff.
• Pre-Wired Terminal Block: Simplifies installation and wiring connections.
• Power-Limited Output: All output circuitry is power-limited for safety compliance.
• Flush-Mount Design: Designed for clean, professional installation in facility walls.
• SafePath4 Compatibility: Works with SP40/2 and SP40S panels for full voice evacuation integration.

The SP4-LOC-FB delivers the reliability and precision required for effective facility voice evacuation control.
