SPA-1XCHOC12/DS0 | Cisco Channelized OC-12/STM-4 Shared Port Adapter
- Regular price
- $5,390.00
- Sale price
- $5,390.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: SPA-1XCHOC12/DS0
Description

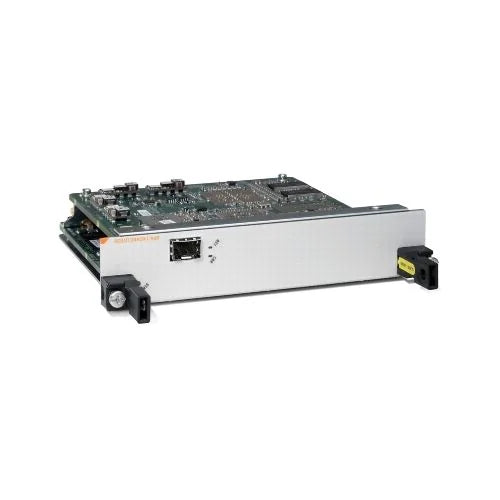

The Cisco SPA-1XCHOC12/DS0 is a high-density channelized OC-12/STM-4 shared port adapter designed for Cisco routers, offering flexible aggregation of DS0, DS1, and DS3 circuits.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Cisco |
| Category |
Networking Hardware
|
| Part Number | SPA-1XCHOC12/DS0 |
| Subcatecory |
WAN Interface Cards and Shared Port Adapters
|
| Form Factor | Plug-in module |
| Compatibility | Cisco 7600 Series |
| Port Type | Channelized OC12 |
| Channelization Capability | OC12 to DS0 |
| Total Ports | 1 |
| Interface Type | Optical |
| Maximum Bandwidth | 622 Mbps (OC12) |
| Protocols Supported | SONET, DS0 |
| Optical Wavelength | 1310 nm |
| Power Consumption | 30W |
| Housing Material | Metal |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Relative Humidity | 5% to 95%, non-condensing |
| MTBF | Over 800,000 hours |
| Fiber Type | Single mode |
| Compliance | RoHS, NEBS Level 3 |
| Dimensions | 1.55 x 7.13 x 7.28 inches |
| Weight | 1.27 lbs |
Information About SPA-1XCHOC12/DS0
The Cisco SPA-1XCHOC12/DS0 is a high-performance channelized shared port adapter designed for service providers and large enterprise networks, delivering flexible aggregation of DS0, DS1, and DS3 circuits over a single OC-12/STM-4 optical link. Engineered for scalability, reliability, and efficient bandwidth utilization, it enables the consolidation of multiple voice, video, and data services, making it an essential component for environments where high-density service aggregation, uptime, and operational efficiency are critical.
Key Features:
-
Compatibility: Specifically designed for Cisco routers with SPA Interface Processors (SIP), including Cisco 7600 Series, ASR 1000 Series, and 12000 Series routers
-
Component Type: Channelized OC-12/STM-4 shared port adapter for SONET/SDH transport
-
Function: Aggregates DS0, T1/E1, and DS3 circuits onto a single high-capacity optical link for efficient service delivery
-
Form Factor: Shared Port Adapter (SPA) module with single-mode fiber SC/PC optical connectors
-
Installation: Standard SPA insertion into supported SIP modules, typically installed and configured by network professionals
-
Reliability: Provides carrier-grade performance with support for SONET/SDH standards and extensive diagnostics and monitoring features
-
Maintenance Use: Ideal for scaling multiservice aggregation, optimizing fiber utilization, and simplifying service delivery networks
-
Use Case: Enables efficient, flexible aggregation for carrier backbones, enterprise WANs, and high-density multiservice networks
-
Operating Environment: Temperature range 0°C to 40°C; relative humidity 10% to 85% non-condensing
This shared port adapter delivers critical aggregation capabilities for multiservice networks, helping organizations maintain efficient, scalable, and resilient transport infrastructures. The Cisco SPA-1XCHOC12/DS0 is a trusted solution for enabling high-density service delivery and optimized bandwidth utilization in demanding carrier and enterprise environments.
