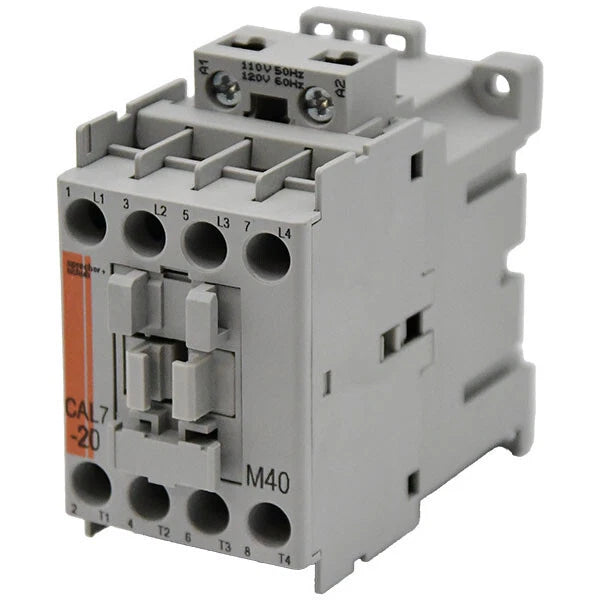

Sprecher + Schuh CAL7-20-M40-120 Lighting Contactor 20A 120VAC Electrically Held DIN Rail Control
- Regular price
- $309.00
- Sale price
- $309.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CAL7-20-M40-120
Description
The Sprecher + Schuh CAL7-20-M40-120 is an electrically held lighting contactor designed for switching a wide range of commercial and industrial lighting loads. It features a 120 VAC coil, four-pole configuration, and 20 A load rating for reliable control of resistive and lighting circuits.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Sprecher + Schuh |
| Category | Motor Control |
| Part Number | CAL7-20-M40-120 |
| Subcategory | Lighting Contactors |
| Series | CAL7 |
| Type | Electrically Held Lighting Contactor |
| Manufacturer Part Number | 22-321-446-33 |
| Coil Voltage | 120 VAC |
| Coil Frequency | 60 Hz |
| Current Rating | 20 A |
| Maximum Load Current | 20 A |
| Number of Poles | 4 |
| Contact Configuration | 4NO / 0NO-0NC |
| Mounting Type | DIN Rail |
| Enclosure Type | Open |
| Termination Type | Screw Terminals |
| Operating Temperature | -13°F to 140°F (-25°C to 60°C) |
| Applications | Lighting loads, resistive loads, automation systems |
| Approvals | cULus |
| Weight | 0.875 lbs (0.40 kg) |
Information About CAL7-20-M40-120
The CAL7-20-M40-120 is part of the Sprecher + Schuh CAL7 series of lighting contactors developed for applications with high inrush current loads such as incandescent, fluorescent, sodium, mercury vapor, and other discharge lighting systems. It uses an electrically held coil design and provides dependable switching through a compact DIN rail mountable construction. The contactor is designed for integration into lighting control panels, automation systems, and commercial electrical installations where reliable load management is required. Its modular design supports efficient installation while maintaining compatibility with Sprecher + Schuh contactor accessories.
Key Features:
- Lighting contactor design: Optimized for controlling high inrush lighting and resistive loads
- 20 A load rating: Supports commercial and industrial lighting applications
- 120 VAC coil operation: Provides compatibility with common control voltage systems
- Electrically held operation: Maintains contact position while coil power is applied
- Four-pole configuration: Allows multi-circuit lighting control capability
- DIN rail mounting: Enables quick installation in electrical control panels
- Screw terminal connections: Provide secure and accessible wiring
- Wide lighting compatibility: Suitable for incandescent, fluorescent, sodium, mercury vapor, and halogen loads
- Compact CAL7 construction: Reduces panel space requirements
- Industrial-grade switching: Designed for reliable repetitive operation
- cULus approval: Meets recognized safety and performance requirements
The CAL7-20-M40-120 delivers the reliability and precision required for commercial and industrial lighting control applications.
