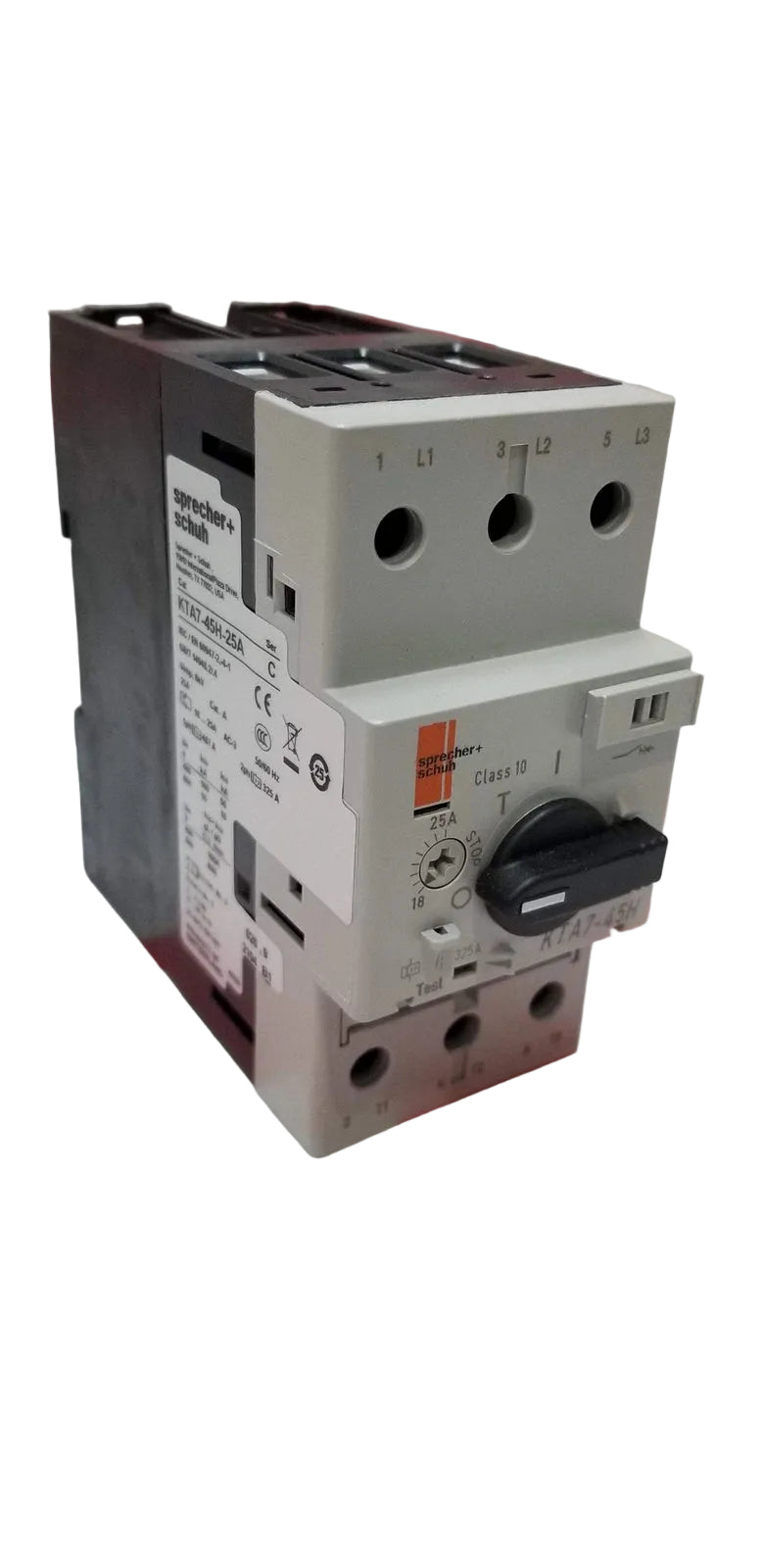

Sprecher + Schuh KTA7-45H-32A Explosion Proof Manual Motor Controller 23–32A Motor Protection (Copy)
- Regular price
- $454.00
- Sale price
- $454.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: KTA7-45H-25A
Description
The Sprecher + Schuh KTA7-45H-25A is an enclosed manual motor circuit controller designed for three-phase motor protection and switching in industrial environments. It provides adjustable overload protection from 18 to 25 A with rapid current-limiting short-circuit protection for reliable motor control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Sprecher + Schuh |
| Category | Motor Control |
| Part Number | KTA7-45H-25A |
| Subcategory | Manual Motor Controllers |
| Series | KTA7 |
| Type | Enclosed Motor Circuit Controller |
| Current Rating | 25 A |
| Adjustable Overload Range | 18 to 25 A |
| Voltage Rating | 277/347 V |
| Frequency Rating | 50/60 Hz |
| Phase | Three Phase |
| Number of Poles | 6 Pole |
| Trip Class | Class 10 |
| Mounting Type | DIN Rail or Base Mounted |
| Terminal Type | Screw Terminals |
| Enclosure Rating | NEMA Type 4/7/9 |
| Hazardous Location Rating | Explosion Proof |
| Short Circuit Protection | Current-Limiting Magnetic Protection |
| Short Circuit Capacity | Up to 65 kA at 480Y/277 V; up to 47 kA at 600Y/347 V |
| Operating Temperature | -20°C to 60°C |
| Dimensions | 10 x 7 x 6 in |
| Motor Application | Industrial Three-Phase Motor Protection |
| Handle Type | Rotary ON/OFF Handle |
| Weight | Approximately 999 g |
Information About KTA7-45H-25A
The KTA7-45H-25A is part of the Sprecher + Schuh KTA7 series of manual motor circuit controllers designed for industrial and hazardous location applications. It combines motor disconnect functionality, adjustable thermal overload protection, and magnetic short-circuit protection in a single compact unit. The controller features Class 10 overload tripping, screw terminals, and a rotary ON/OFF handle for straightforward operation and installation. It supports DIN rail or base mounting and can be equipped with optional auxiliary contacts, undervoltage releases, and shunt trips for expanded motor protection systems.
Key Features:
- Adjustable overload range: Provides motor protection from 18 to 25 A
- Manual motor circuit control: Combines disconnect and protection functions in one device
- Class 10 trip characteristic: Provides overload tripping within 10 seconds or less
- Current-limiting short-circuit protection: Rapid magnetic trip response reduces fault current levels
- Three-phase motor protection: Designed for industrial three-phase motor applications
- Six-pole configuration: Supports flexible motor control system integration
- DIN rail mounting capability: Allows quick installation on standard 35 mm DIN rail
- Screw terminal connections: Provide secure and reliable field wiring
- Rotary ON/OFF handle: Enables simple manual operation and visual status indication
- High interrupting capacity: Provides strong short-circuit protection performance
- Accessory compatibility: Supports optional auxiliary contacts, shunt trips, and undervoltage releases
The KTA7-45H-25A delivers the reliability and precision required for industrial motor protection and switching applications.
