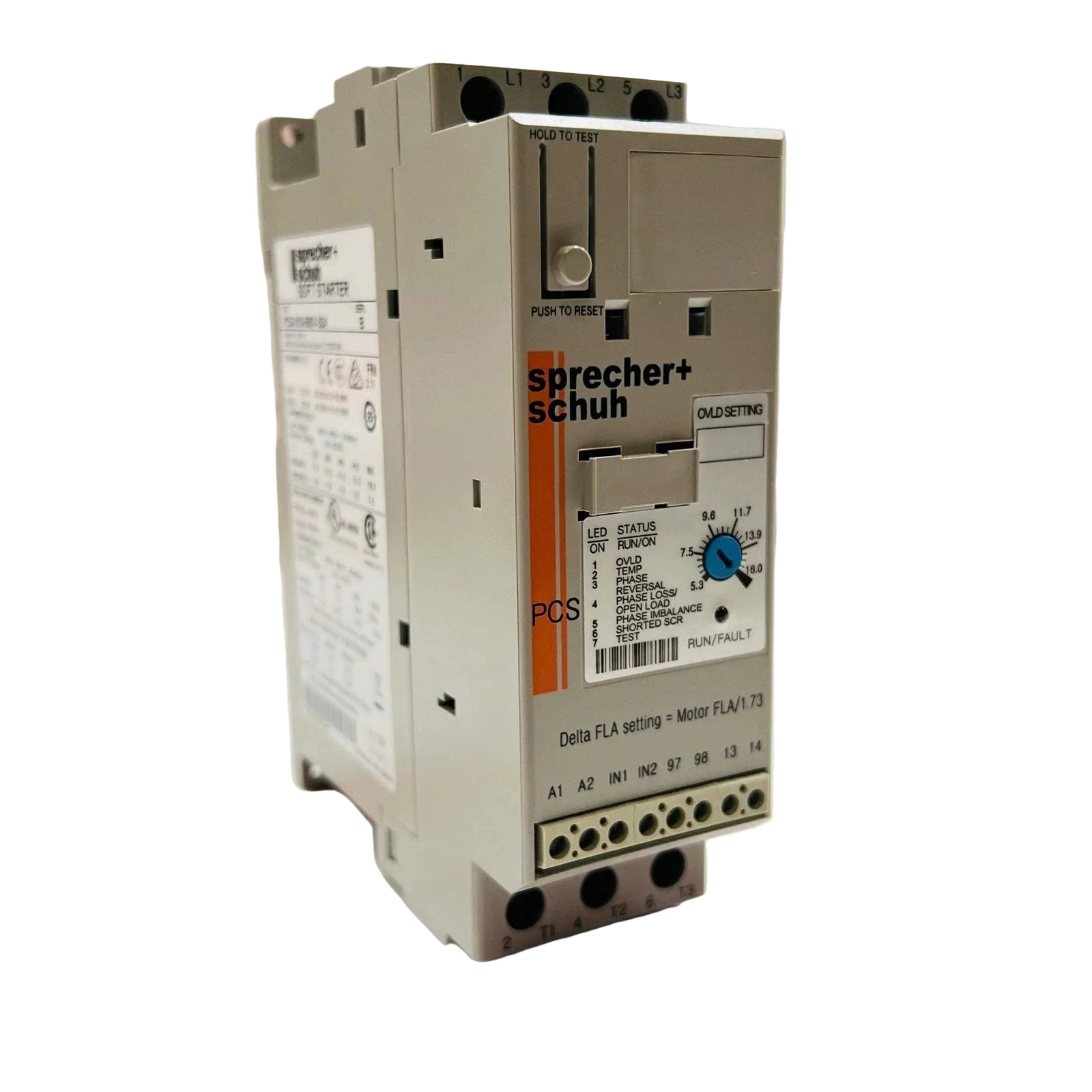

Sprecher + Schuh PCS-037-600V-024 Soft Starter 37A 24VAC/DC Motor Controller with Bypass
- Regular price
- $759.00
- Sale price
- $759.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: PCS-037-600V-024
Description
The Sprecher + Schuh PCS-037-600V-024 is a soft starter designed to provide controlled acceleration and deceleration for three-phase motors up to 37 A. It operates with 24 VAC/DC control voltage and includes integrated motor protection, bypass functionality, and flexible connection options for industrial motor applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Sprecher + Schuh |
| Category | Motor Control |
| Part Number | PCS-037-600V-024 |
| Subcategory | Soft Starters |
| Series | PCS |
| Type | Soft Starter |
| Current Rating | 37 A |
| Control Voltage | 24 VAC / 24 VDC |
| Nominal Load Voltage | 208 VAC, 240 VAC, 380 VAC, 415 VAC, 480 VAC, 575 VAC |
| Motor Phase | Three Phase |
| Connection Type | In-Line, Inside the Delta |
| Bypass Function | Integrated Bypass Relay |
| Overload Protection | Yes |
| Protection Rating | IP20 |
| Mounting Type | DIN Rail / Panel Mount |
| Motor Capacity | 10 HP @ 200 V / 10 HP @ 230 V / 25 HP @ 460 V / 30 HP @ 575 V |
| Operating Temperature | 23°F to 122°F (-5°C to 50°C) |
| Combination Type | Non-Combination |
| Certifications | CE, cULus |
| Application | Pumps, conveyors, compressors, fans, industrial motors |
| Weight | 2.14 lbs (0.97 kg) |
Information About PCS-037-600V-024
The PCS-037-600V-024 belongs to the Sprecher + Schuh PCS soft starter series, developed to reduce mechanical stress and electrical inrush current during motor startup and stopping cycles. It supports a wide range of motor voltages from 208 VAC to 575 VAC and is suitable for applications including pumps, conveyors, fans, and compressors. The unit features built-in overload protection, phase monitoring functions, and an integrated bypass relay to improve system efficiency during normal operation. Its compact IP20-rated open design allows installation inside control panels with DIN rail or panel mounting flexibility.
Key Features:
- Soft start and stop control: Provides smooth motor acceleration and deceleration to reduce mechanical stress
- 37 A current rating: Designed for medium-duty three-phase motor applications
- Wide voltage compatibility: Supports motor voltages from 208 VAC through 575 VAC
- 24 VAC/DC control voltage: Allows flexible integration with industrial control systems
- Integrated overload protection: Helps protect motors from excessive current conditions
- Phase protection functions: Provides monitoring for phase loss and phase imbalance conditions
- Built-in bypass relay: Reduces heat generation and power losses during normal operation
- Compact panel design: Saves installation space in industrial control cabinets
- Multiple connection methods: Supports in-line and inside-the-delta motor connections
- LED status indicators: Simplifies operation monitoring and troubleshooting
- Industrial certifications: Approved to CE and cULus standards
The PCS-037-600V-024 delivers the reliability and precision required for controlled motor starting and protection in industrial automation systems.
