SPSCWL-BP10 | System Sensor L-Series White Wall Speaker Strobe, 25/70V, LED
- Regular price
- $945.00
- Sale price
- $945.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: SPSCWL-BP10
Description

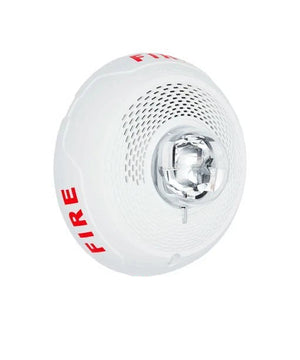

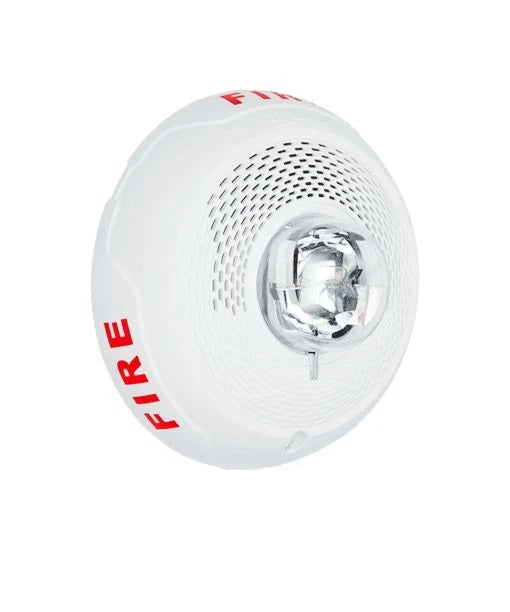

The System Sensor SPSCWL-BP10 is a white wall-mount speaker strobe designed for clear voice evacuation and visible notification in fire alarm and emergency communication systems. It combines a high-fidelity speaker with a synchronized LED strobe for reliable performance in life safety applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | System Sensor |
| Category | Notification Appliances |
| Part Number | SPSCWL-BP10 |
| Subcategory | Speaker Strobe |
| Series | L-Series |
| Product Type | Wall-mount speaker strobe |
| Mounting Type | Wall mount |
| Color | White |
| Voltage | 25 or 70.7 VRMS (selectable) |
| Power Taps | Field-selectable (1/8 W, 1/4 W, 1/2 W, 1 W, 2 W) |
| Strobe Type | LED, synchronized |
| Strobe Candela Rating | 15, 30, 75, 95, 115, 150 cd (model dependent) |
| Speaker Frequency Range | 400–4000 Hz |
| Sound Output | High-fidelity audio for voice evacuation |
| Input Terminals | Plug-in screw terminals for quick wiring |
| Operating Temperature | 32°F to 120°F (0°C to 49°C) |
| Humidity | 10%–93% RH, non-condensing |
| Compliance | UL 1480, UL 1971, NFPA 72, ADA |
| Dimensions | 6.5" H × 5" W × 2.5" D (approx.) |
| Weight | 1.2 lbs (approx.) |
Information About SPSCWL-BP10
The SPSCWL-BP10 is part of System Sensor’s L-Series line of notification appliances, engineered for high intelligibility and energy efficiency. Designed for wall-mount installation, it delivers clear voice messages and tone signals while providing bright, synchronized strobe illumination for visual alerting. The unit supports 25 or 70.7 VRMS operation with field-selectable power taps to suit a wide range of sound output requirements. Featuring a white finish and low-profile design, the SPSCWL-BP10 is ideal for commercial buildings, schools, hospitals, and office facilities requiring both audible and visual notification in compliance with NFPA and ADA standards.
Key Features:
- Integrated Speaker and Strobe: Combines audible and visual signaling for comprehensive notification.
- L-Series Platform: Provides high intelligibility and energy-efficient LED strobe output.
- Selectable Voltage: Operates on 25 or 70.7 VRMS systems.
- Field-Configurable Output: Multiple wattage taps for customized sound levels.
- White Wall Mount Design: Sleek, modern aesthetic suitable for visible installation areas.
- Synchronized Strobe: Meets ADA and NFPA 72 requirements for temporal and visual alerting.
- Durable Construction: Built for long-term reliability in commercial environments.
- Easy Installation: Plug-in design with mounting plate for fast field wiring.
The SPSCWL-BP10 delivers the reliability and precision required for effective fire alarm and emergency voice evacuation notification.
