SPSRL-SP | System Sensor L-Series Wall Mount Speaker Strobe FUEGO
- Regular price
- $189.05
- Sale price
- $189.05
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SPSRL-SP
Description

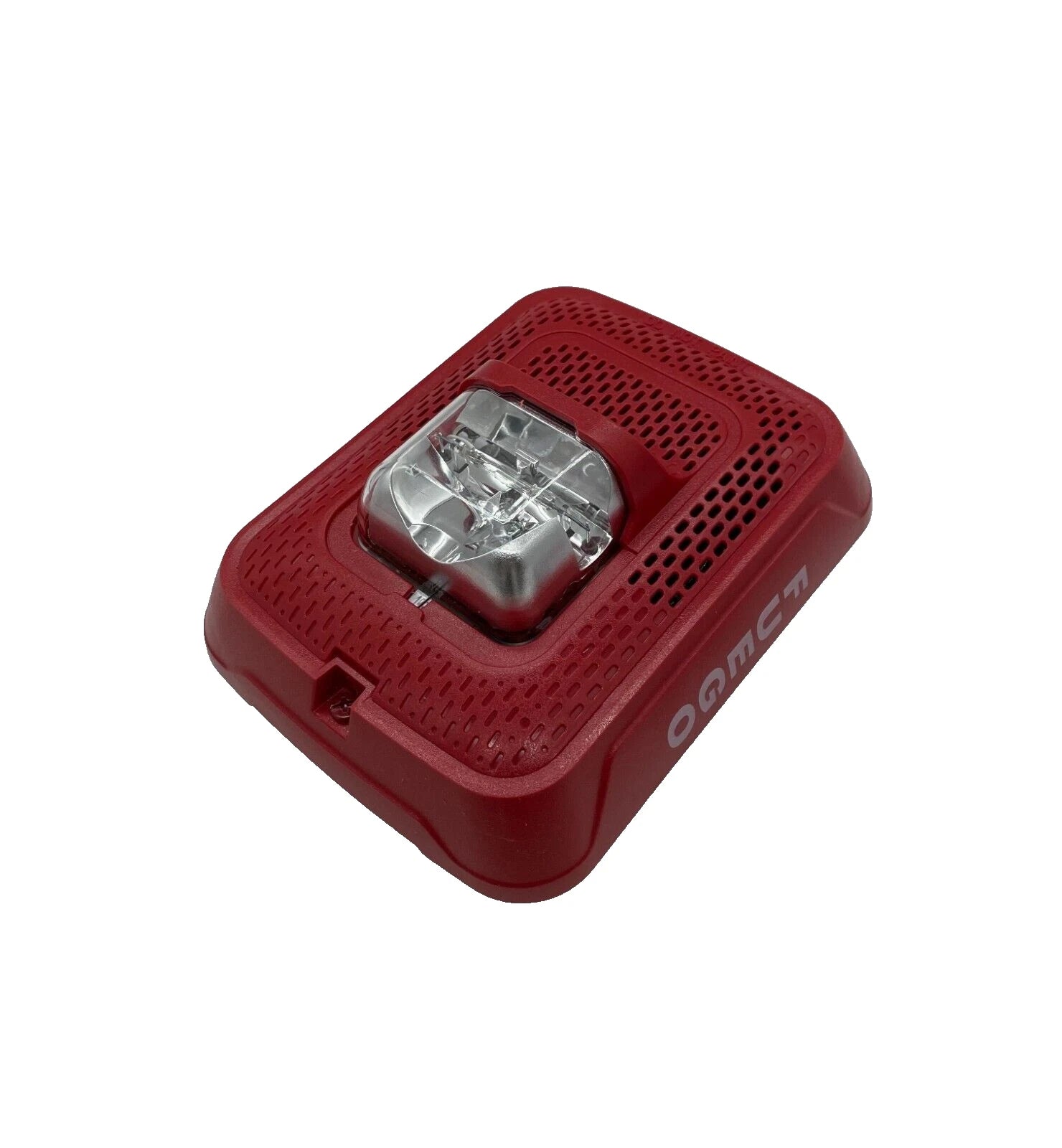

The System Sensor SPSRL-SP is a wall-mounted speaker strobe notification appliance from the L-Series designed for emergency communication and fire signaling applications. It combines audible and visible alerting functions within a single device and features a red housing with a clear lens marked “FUEGO.” Engineered for indoor installations, it supports field-selectable settings and compatibility with standard fire alarm control panels.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | System Sensor |
| Category | Fire Safety |
| Part Number | SPSRL-SP |
| Subcategory | Fire Emergency Light/Beacon |
| Series | L-Series Notification Appliances |
| Device Type | Speaker Strobe |
| Mounting Type | Wall Mount |
| Housing Color | Red |
| Lens Color | Clear |
| Marking | FUEGO |
| Input Voltage | 12/24 VDC (Auto Select at Certain Settings) |
| Speaker Voltage Settings | 25 Vrms / 70.7 Vrms |
| Selectable Wattage | 1/4, 1/2, 1, 2 Watts |
| Candela Settings | 15, 30, 75, 95, 110, 135, 185 |
| Synchronization | System Sensor Protocol Compatible |
| Weight | 1.00 lbs |
Information About SPSRL-SP

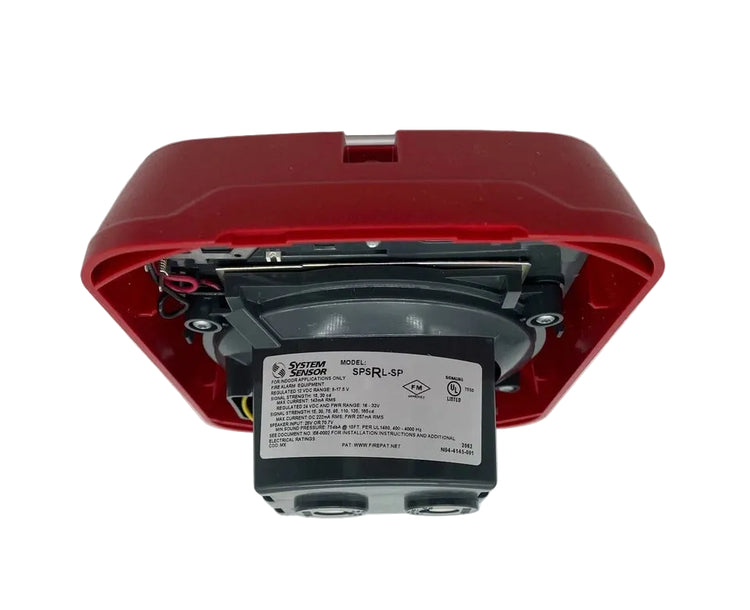

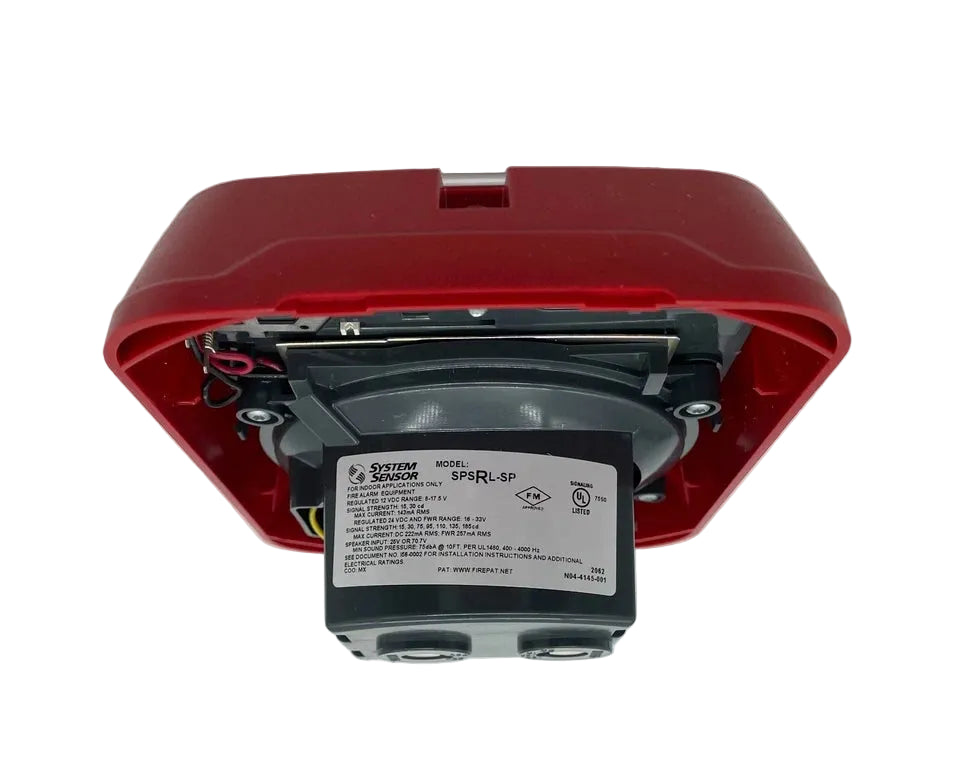

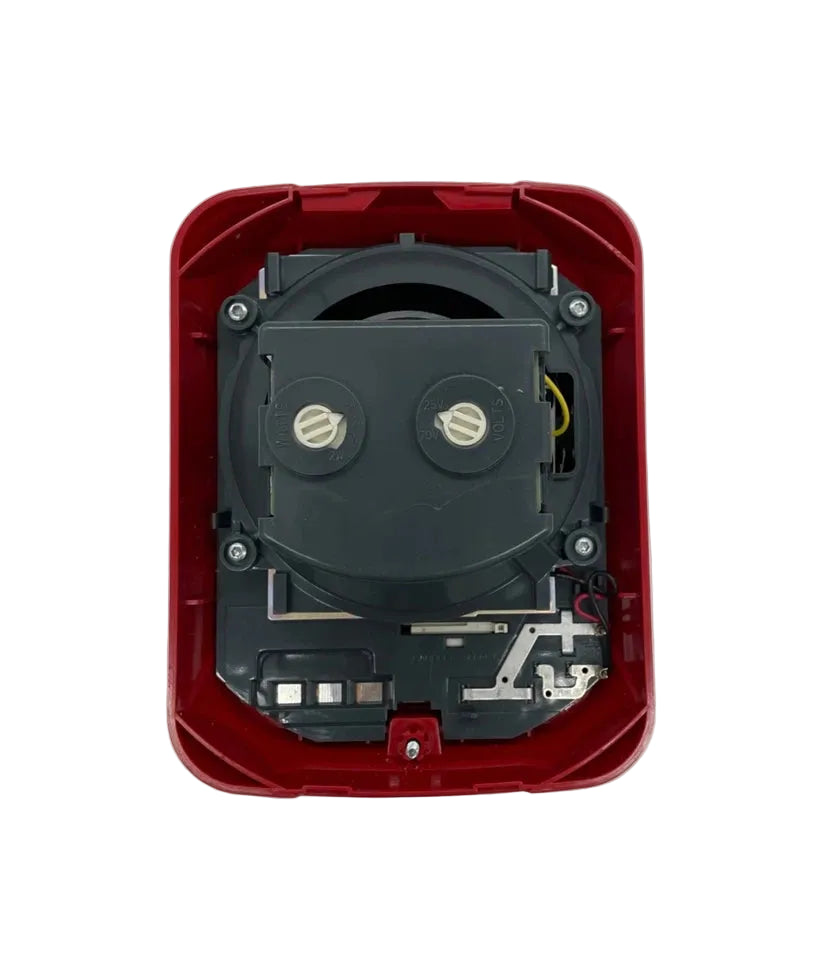

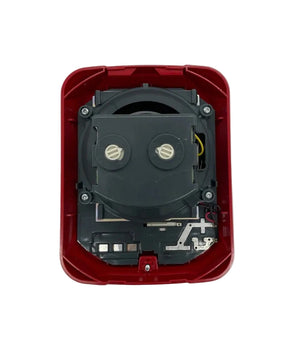

The SPSRL-SP is part of the System Sensor L-Series notification appliances, developed to provide flexible audible and visual signaling in fire alarm and emergency communication systems. This wall-mounted unit integrates a high-output speaker with a strobe light, offering selectable candela and speaker power settings to accommodate varying installation requirements. It utilizes a plug-in design with a universal mounting plate and onboard shorting spring to verify wiring continuity before final installation. Designed for system compatibility, it supports synchronization protocols and operates on regulated 12 or 24 VDC input circuits.
Key Features:
-
Speaker/Strobe Combination: Provides both audible and visual emergency notification.
-
Wall-Mount Design: Suitable for interior wall installations.
-
Field-Selectable Candela: Adjustable light output levels (15–185 cd depending on configuration).
-
Dual Voltage Compatibility: Automatic 12/24 VDC operation at select candela settings.
-
Selectable Speaker Settings: Rotary switch for voltage (25/70.7 Vrms) and wattage adjustment.
-

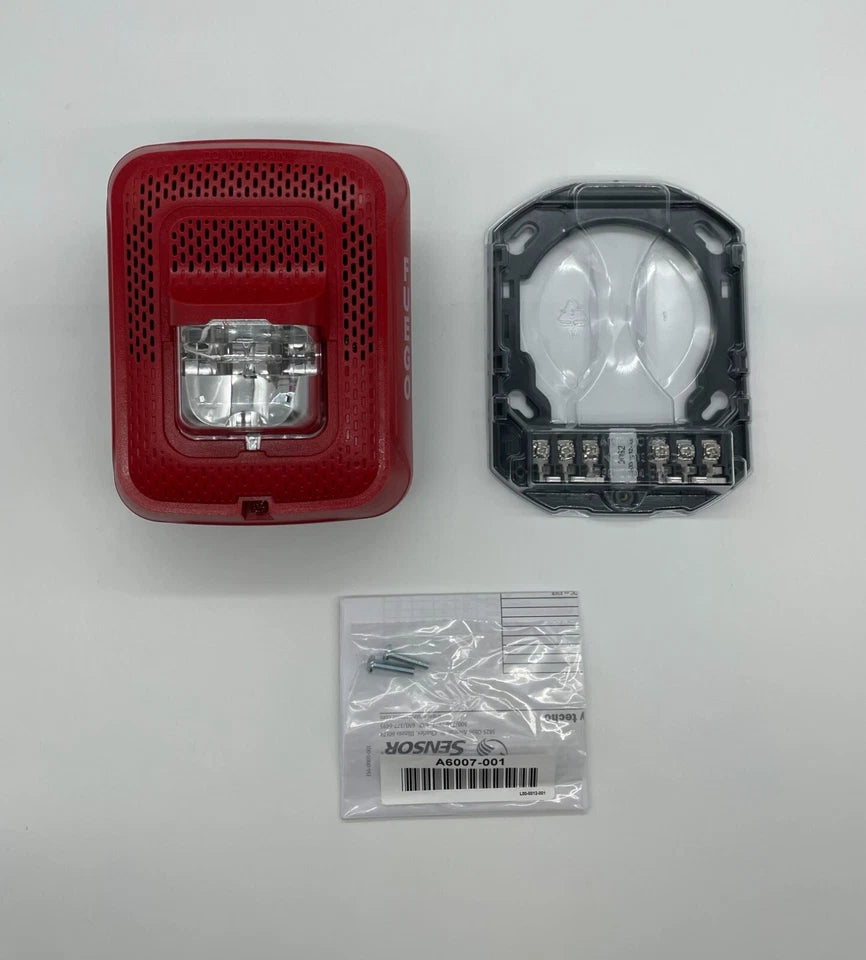

Plug-In Mounting System: Simplifies installation and reduces ground fault risks.
-
FUEGO Marking: Clear lens with Spanish fire labeling for signaling applications.
-
Synchronization Compatible: Supports System Sensor synchronization protocol.
The SPSRL-SP delivers the reliability and precision required for integrated fire alarm audible and visual notification systems.
