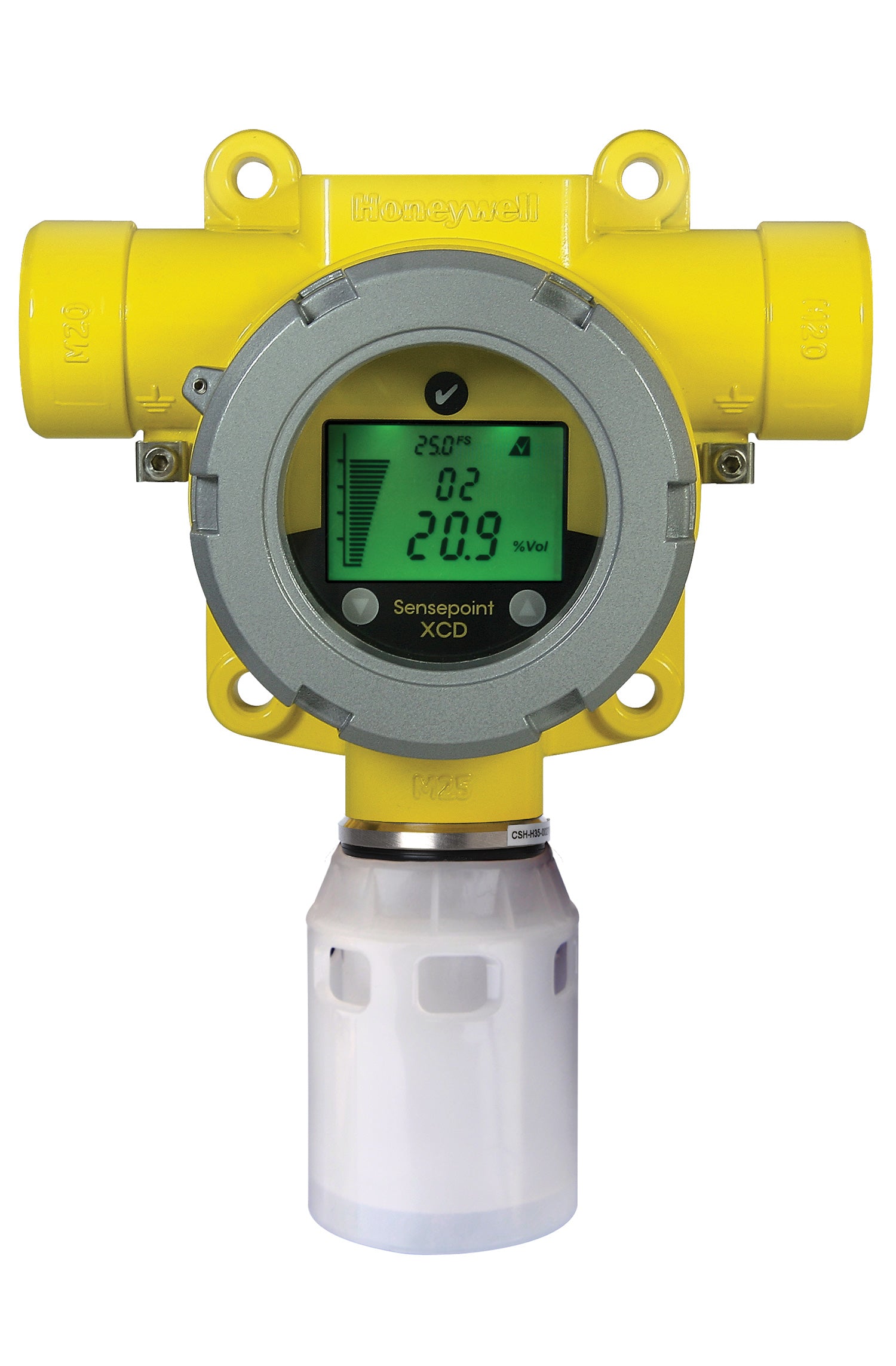

SPXCDULNO1 | Honeywell Sensepoint XCD Oxygen Gas Detector Transmitter 0–25% Vol
- Regular price
- $1,549.00
- Sale price
- $1,549.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: SPXCDULNO1
Description
The Honeywell SPXCDULNO1 is a Sensepoint XCD Gas Detector Transmitter engineered for oxygen (O₂) detection in the 0–25.0%/Vol range. It uses an electrochemical sensor and a tri-color backlit LCD to provide real-time, accurate gas level monitoring in industrial and hazardous environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Gas Detection |
| Part Number | SPXCDULNO1 |
| Subcategory | Fixed Gas Detector |
| Input Voltage Range | 16 to 32VDC (24VDC nominal) |
| Max Power Consumption | 3.7W (electrochemical), 4.9W (catalytic); Inrush current: 800mA @ 24VDC |
| Current Output | Sink or source |
| Relays | 3 × 5A@250VAC, programmable NO/NC |
| Communication | RS485, MODBUS RTU |
| Display | Tri-color backlit LCD |
| Sensor Type | Electrochemical O₂ sensor (0–25%/Vol) |
| Material | LM25 aluminum alloy or 316 stainless steel |
| Mounting | 4 × M8 holes, optional pipe kit Ø1.5–3" |
| Cable Entries | 2 × ¾" NPT (UL/ULC) or 2 × M20 (ATEX/IECEx) |
| IP Rating | IP66 per EN60529:1992 |
| Operating Temperature | -20°C to +55°C (typical) |
| Weight | 4.4 lbs (aluminum), 11 lbs (stainless steel) |
Information About SPXCDULNO1
The SPXCDULNO1 is part of Honeywell’s Sensepoint XCD fixed gas detection series designed for reliable oxygen monitoring in industrial, marine, and hazardous areas. It operates from 16–32VDC and supports RS485 MODBUS RTU communication for seamless system integration. Built with an epoxy-painted LM25 aluminum alloy enclosure, the unit also offers an optional 316 stainless steel version for enhanced corrosion resistance. The device includes three programmable relays rated at 5A@250VAC, configurable for normally open or closed operation, and its IP66-rated housing provides complete protection against dust and water.
Key Features
- Input Voltage Range: Operates from 16–32VDC (24VDC nominal) for flexible installation options.
- Low Power Design: Consumes only 3.7W, ensuring efficient and continuous monitoring.
- Relay Outputs: Three programmable relays rated at 5A@250VAC for alarm and fault signaling.
- Communication Interface: RS485 MODBUS RTU for reliable system integration.
- Rugged Construction: Epoxy-painted LM25 aluminum or 316 stainless steel housing for long-term durability.
- Mounting Options: Includes M8 mounting holes and optional pipe kit for horizontal or vertical installation.
- Cable Entries: Dual conduit options (¾" NPT or M20) maintain IP rating integrity.
- Environmental Protection: IP66 enclosure ensures resistance to dust and water ingress.
The SPXCDULNO1 delivers the reliability and precision required for fixed gas detection and oxygen monitoring in demanding industrial environments.
