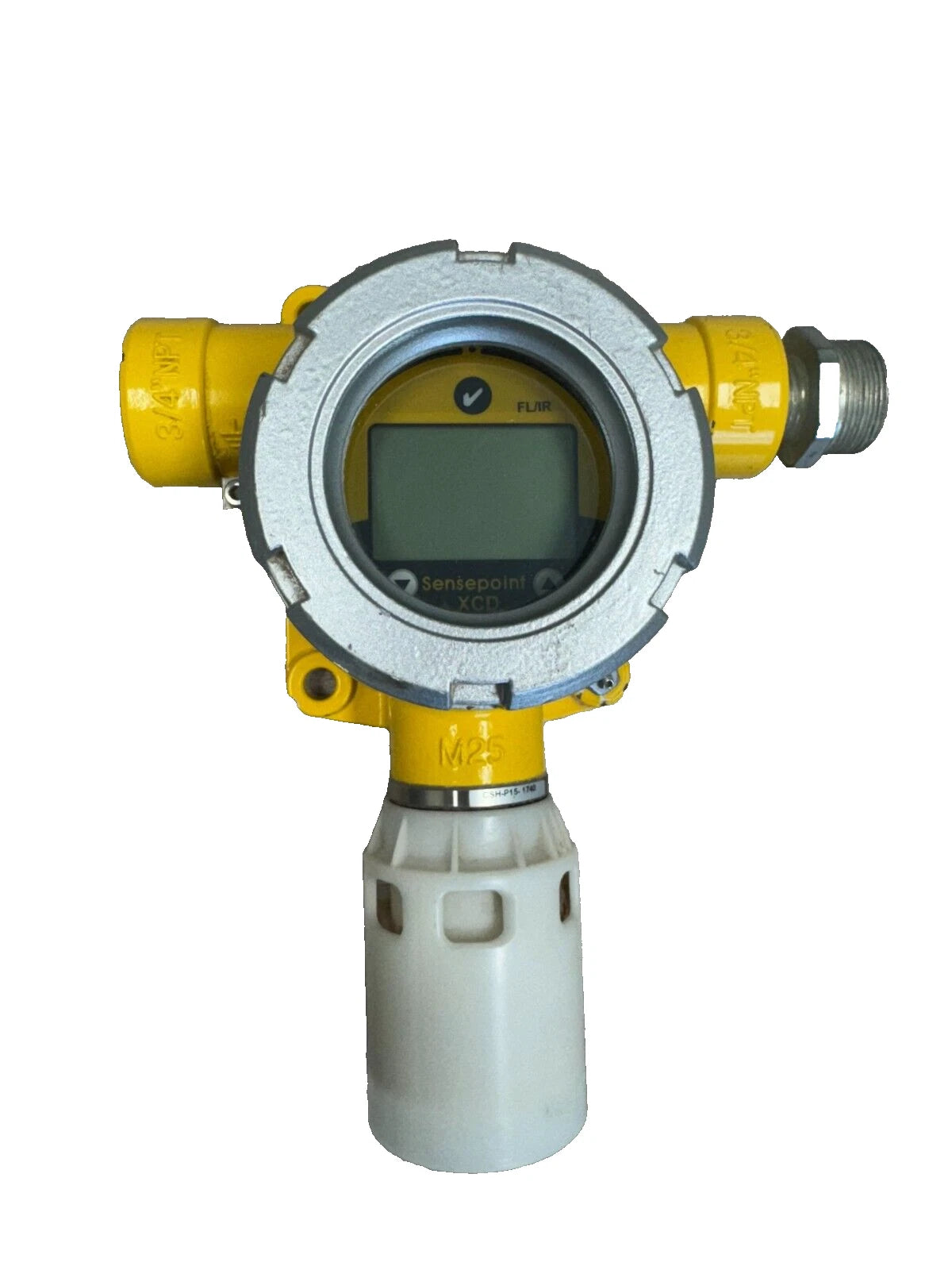

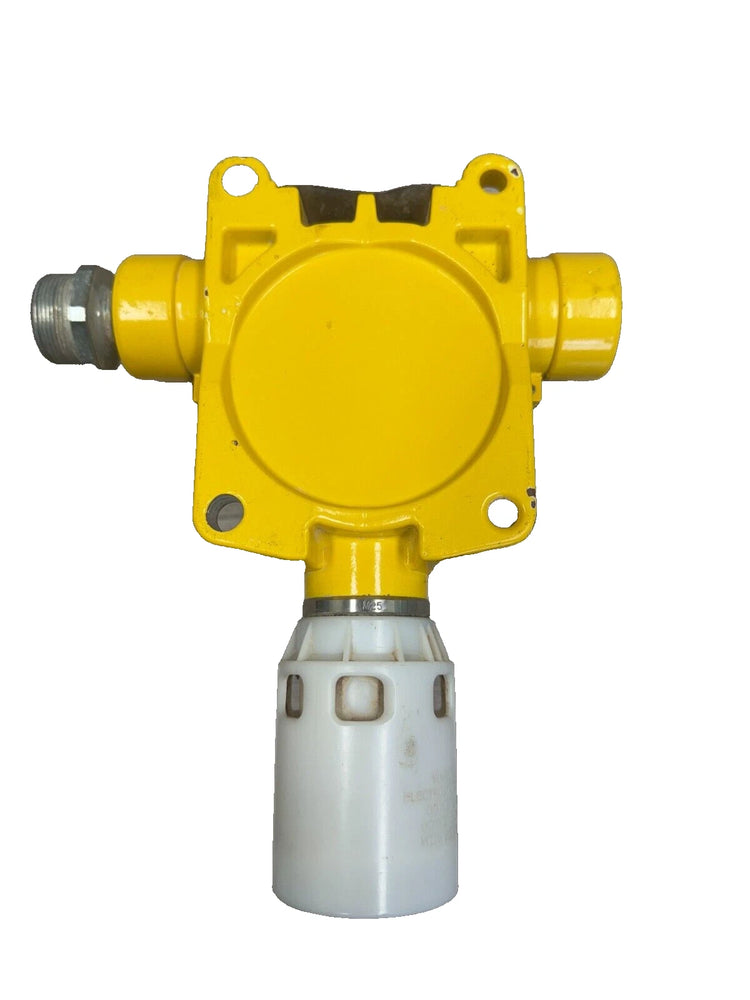

SPXCDULNTXF | Honeywell Analytics Sensepoint XCD IR Flammable Gas Transmitter
- Regular price
- $804.65
- Sale price
- $804.65
- Regular price
-
Couldn't load pickup availability
Product Description P/N: SPXCDULNTXF
Description
The Honeywell Analytics SPXCDULNTXF is an infrared flammable gas transmitter designed for continuous gas detection in hazardous industrial environments. It operates on a 12–32 VDC supply and provides stable 4–20 mA and RS485 Modbus outputs for integration into safety and control systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell Analytics |
| Category | Gas Detection |
| Part Number | SPXCDULNTXF |
| Subcategory | Flammable Gas Transmitters |
| Sensor Type | Infrared (IR) Flammable Gas |
| Supply Voltage | 16–32 VDC |
| Power Consumption | 3 W |
| Inrush Current | 800 mA @ 24 VDC max |
| Output Signal | 4–20 mA (sink or source, selectable) |
| Communication | RS485, Modbus RTU |
| Relay Outputs | 3 × 5A @ 250 VAC, programmable |
| Temperature Code | T4 |
| Operating Temperature | -40 to 65 °C (-40 to 149 °F) |
| Enclosure Rating | NEMA 4, IP66 |
| Housing Material | Epoxy Painted Aluminum Alloy LM25 |
| Conduit Connection | 2 × 3/4 in. NPT |
| Mounting | Integral mounting plate, M8 hardware |
| Dimensions | 8.9 in H × 6.5 in W × 3.9 in D |
| Weight | 4.4 lb (2 kg) |
Information About SPXCDULNTXF
The SPXCDULNTXF is part of the Honeywell Analytics Sensepoint XCD series developed for fixed gas detection in classified hazardous locations. It combines infrared sensing technology with a rugged epoxy-coated aluminum housing to ensure reliable performance in harsh industrial settings. The transmitter supports both analog and digital communication, allowing seamless connection to safety systems and remote diagnostics platforms. Its certified design meets multiple hazardous area classifications, supporting use in oil and gas, chemical processing, and heavy industrial facilities.
Key Features
- Infrared Flammable Gas Detection: Uses IR sensing technology to provide stable and accurate gas measurement unaffected by poisoning or drift.
- Multiple Output Options: Supports 4–20 mA selectable sink or source output alongside RS485 Modbus RTU communication.
- Integrated Display Interface: Tri-colored backlit display with numeric readout, bar graph, and icons for clear local status indication.
- Magnetic Configuration Controls: Fully configurable using magnetic switches without opening the enclosure.
- Built-In Relays: Includes alarm and fault relays with programmable logic for flexible system integration.
- Hazardous Area Certification: Approved for Class I and Class II hazardous locations across multiple gas groups.
- Rugged Industrial Enclosure: Epoxy-painted aluminum housing with IP66/NEMA 4 protection for long-term durability.
The SPXCDULNTXF delivers the reliability and precision required for continuous flammable gas monitoring in hazardous and safety-critical environments.
