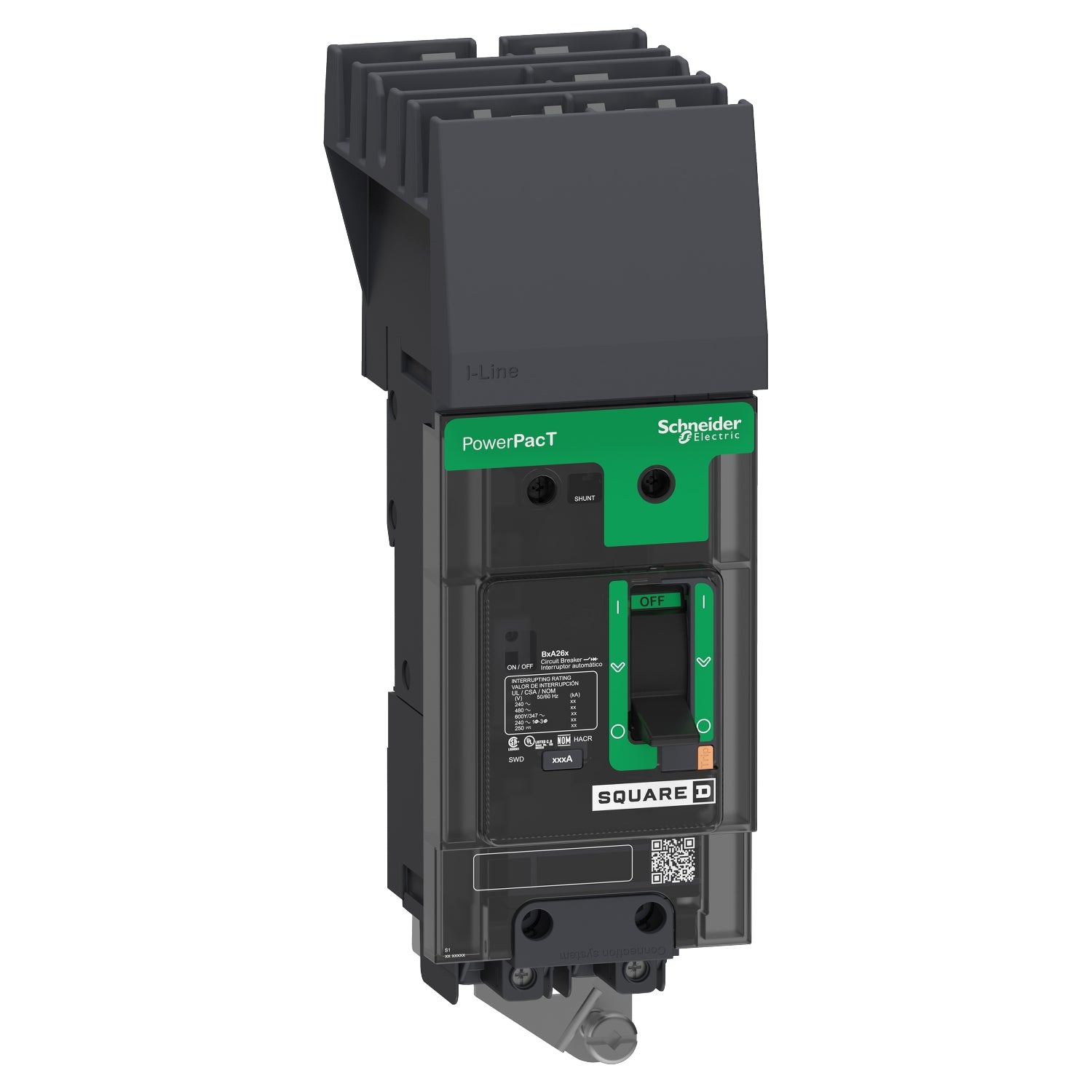

BGA260304 | Square D 30A 2-Pole PowerPact B Thermal-Magnetic I-Line Molded Case Circuit Breaker
- Regular price
- $818.00
- Sale price
- $818.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BGA260304
Description
The Square D BGA260304 is a 2-pole thermal-magnetic molded case circuit breaker designed for dependable overcurrent and short-circuit protection in 600Y/347VAC systems. With a 30A current rating and a 35kA interrupting capacity at 480V, it supports demanding commercial and industrial distribution applications. This breaker features an I-Line style plug-in interface for secure and efficient installation in compatible panelboards.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Protection |
| Part Number | BGA260304 |
| Subcategory | Molded Case Circuit Breaker |
| Series | PowerPact B / BGA Frame |
| Amperage | 30A |
| Voltage Rating | 600Y/347VAC |
| Poles | 2 |
| Phase | 1 |
| Interrupting Rating | 35kA @ 480VAC |
| Trip Unit | Thermal-Magnetic (Long Time, Instantaneous) |
| Connection Type | I-Line Style Plug-In |
| Terminal Connections | Line and Load Lug |
| Wire Range | AWG 14–2/0 Cu/Al |
| Actuator Type | Toggle |
| Color | Gray |
| Standards/Certifications | UL 489, CSA C22.2, IEC, CCC, EAC, NOM, CE, NEMA AB1, RoHS |
| Operating Temperature | –25°C to 70°C (–13°F to 158°F) |
| Dimensions | 2.12 in × 5.39 in |
| Country of Origin | Mexico |
| Weight | 1.44 lb |
Information About BGA260304
The BGA260304 is part of the Square D PowerPact B-Frame series, built with a compact molded case design that integrates thermal-magnetic trip technology for long-time and instantaneous protection. It is engineered for compatibility with I-Line distribution equipment and supports both line and load lug connections. This model accommodates a wide wire range from AWG 14 to AWG 2/0, making it suitable for diverse circuit configurations. Certified to UL, CSA, CE, RoHS, and multiple international standards, it is intended for use in commercial and industrial electrical systems, it is intended for use in commercial and industrial electrical systems requiring reliable fault interruption.
Key Features:
- 30A Current Rating: Supports stable circuit protection in light to medium power applications.
- 600Y/347VAC Operating Voltage: Suitable for high-voltage commercial and industrial power systems.
- 35kA Interrupting Capacity at 480V: Provides strong fault-clearing performance for enhanced system resilience.
- Thermal-Magnetic Trip Unit: Delivers long-time and instantaneous trip functions for balanced overload and short-circuit protection.
- I-Line Plug-In Interface: Ensures quick, secure mounting in compatible I-Line panelboards and switchboards.
- Wide Wire Range: Accepts AWG 14 to AWG 2/0 copper or aluminum conductors for flexible installation.
- Extensive Certifications: Meets UL, CSA, CE, NOM, CCC, EAC, NEMA, and RoHS standards for broad regulatory compliance.
- Durable B-Frame Construction: Designed to perform reliably across industrial temperature and operating conditions.
The BGA260304 delivers the reliability and precision required for molded case circuit protection in commercial and industrial distribution systems.
