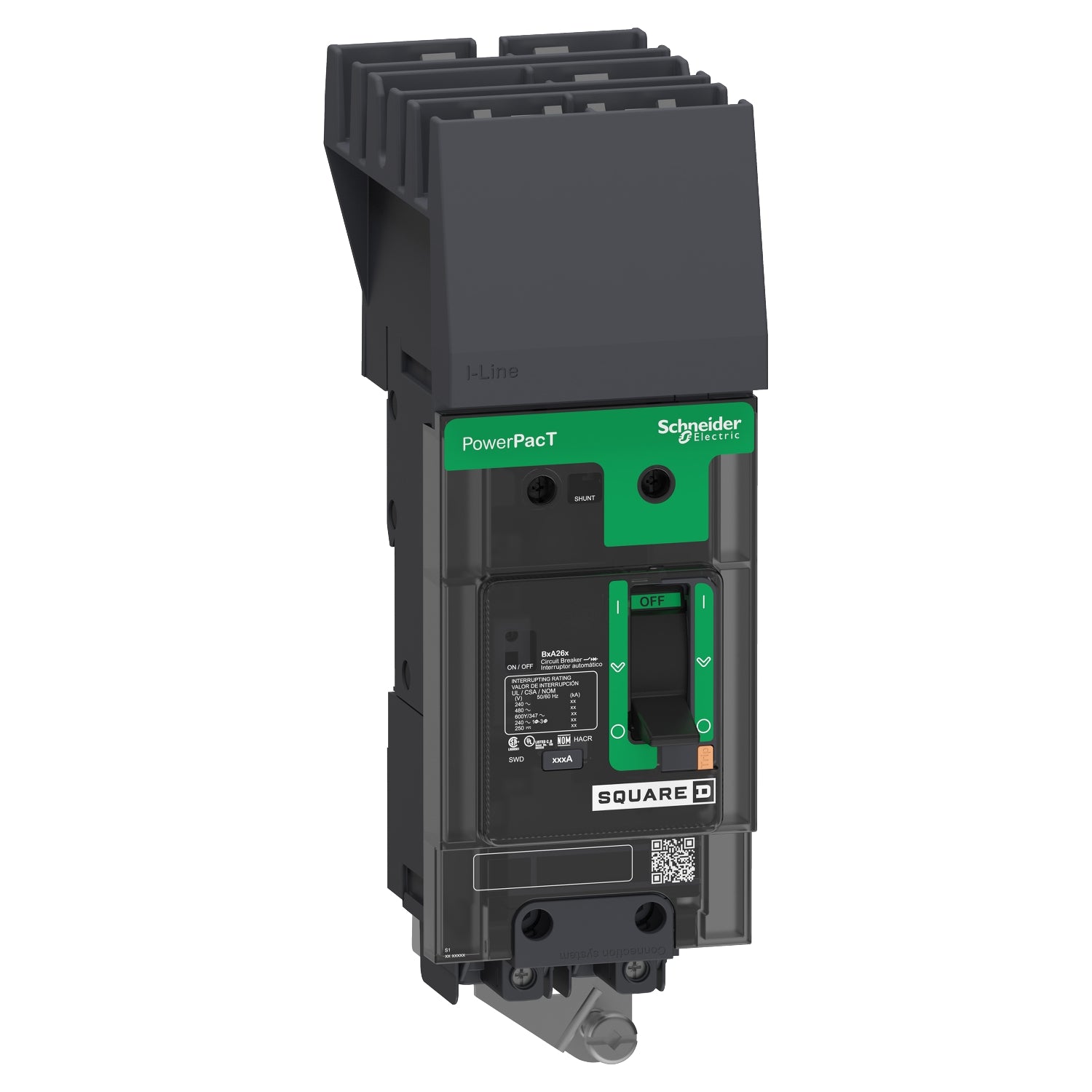

BGA260502 | Square D 50A 2-Pole 600Y/347V I-Line Thermal-Magnetic Molded Case Breaker
- Regular price
- $735.00
- Sale price
- $735.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: BGA260502
Description
The Square D BGA260502 is a two-pole thermal-magnetic molded case circuit breaker engineered to provide dependable overcurrent protection in single-phase distribution systems. Rated for 50 A and 600Y/347 VAC, it offers strong fault-clearing performance suitable for commercial and industrial installations. The BGA260502 uses an I-Line plug-in connection for secure mounting and reliable operation in PowerPact B-Frame applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Breaker |
| Part Number | BGA260502 |
| Subcategory | Molded Case |
| Amperage Rating | 50 A |
| Voltage Rating | 600Y/347 VAC |
| Poles | 2 |
| Phase | Single-phase |
| Interrupting Rating | 35 kA @ 480 V AC |
| Trip Unit Type | Thermal-Magnetic (Long-Time & Instantaneous) |
| Frame Type | BGA / PowerPact B-Frame |
| Mounting Style | I-Line Plug-In |
| Electrical Connections | Line: I-Line plug-in / Load: lugs |
| Conductor Range | AWG 14–2/0 AL/CU |
| Rated Insulation Voltage | 800 V (IEC) |
| Rated Impulse Withstand Voltage | 8 kV |
| Continuous Current Rating | 80% |
| Temperature Range (Operation) | –25°C to 70°C |
| Certifications | UL 489, CSA, NOM, IEC, CCC, EAC, CE |
| Dimensions (H × W × D) | 5.39 in × 2.12 in × 3.5 in |
| Country of Origin | Mexico |
| Weight | 1.43 lb |
Information About BGA260502
The BGA260502 is a PowerPact B-Frame circuit breaker designed to integrate with Square D I-Line panelboards using its plug-in line-side interface and mechanical load-side lugs. It features thermal-magnetic trip technology with long-time and instantaneous functions, enabling accurate response to both overload and short-circuit conditions. Supporting conductor sizes from AWG 14 to AWG 2/0, it accommodates a wide range of wiring configurations in distribution and equipment-protection environments. This breaker meets UL 489, CSA, NOM, IEC, CE, and additional global standards, making it suitable for regulated and safety-critical installations.
Key Features:
- Thermal-Magnetic Trip Unit: Combines long-time overload protection with instantaneous short-circuit interruption.
- High Interrupting Capacity: Rated at 35 kA at 480 V for demanding electrical systems.
- I-Line Plug-In Mounting: Ensures fast, secure installation into compatible distribution panels.
- Wide Conductor Range: Accepts AWG 14–2/0 aluminum or copper wire for flexible wiring options.
- Durable B-Frame Construction: Provides mechanical strength and compact dimensions for dense panel layouts.
- Certified for Global Use: Complies with UL, CSA, NOM, IEC, CCC, EAC, and CE standards.
- Reverse-Feed Capability: Allows installation in applications requiring non-standard feed direction.
- Extended Temperature Rating: Performs reliably from –25°C to 70°C for harsh-environment operation.
The BGA260502 delivers the reliability and precision required for safe and consistent overcurrent protection in modern electrical distribution systems.
