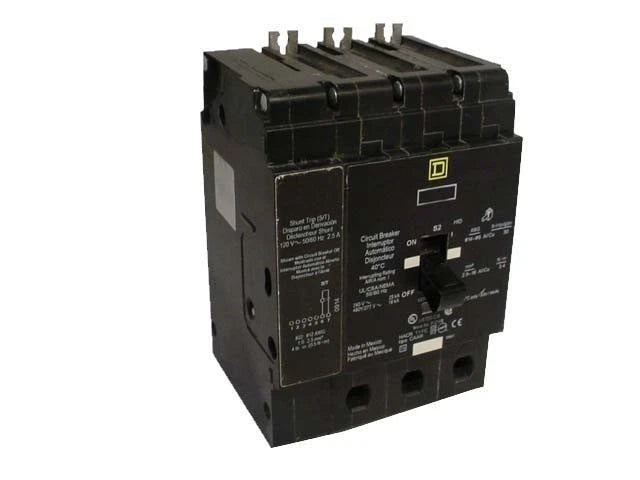

Square D EGB34060SA 60-Ampere 3-Pole 480Y/277-Volt Molded Case Circuit Breaker
- Regular price
- $1,925.00
- Sale price
- $1,925.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EGB34060SA
Description
The Square D by Schneider Electric EGB34060SA is a three-pole E-Frame circuit breaker rated for 60 amperes and 480Y/277 volts alternating current. It provides thermal-magnetic overload and short-circuit protection for electrical distribution systems and is designed for bolt-on installation in compatible Square D NF panelboards.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D by Schneider Electric |
| Category | Circuit Breaker |
| Part Number | EGB34060SA |
| Subcategory | Molded Case Circuit Breaker |
| Series | EGB E-Frame |
| Product Type | Three-Pole Circuit Breaker |
| Rated Current | 60 amperes |
| Number of Poles | 3 |
| Maximum Operating Voltage | 480Y/277 volts alternating current |
| Interrupting Rating at 480Y/277 Volts | 35 kiloamperes |
| Interrupting Rating at 240 Volts | 65 kiloamperes |
| Trip Type | Thermal-Magnetic with Shunt Trip |
| Mounting Type | Bolt-On |
| Frequency Rating | 50/60 hertz |
| Panelboard Compatibility | Square D NF Panelboards |
| Dimensions | 5.8 × 2.94 × 4.05 inches |
| Weight | 4.00 lbs |
Information About EGB34060SA
The EGB34060SA is a Square D EGB Series E-Frame circuit breaker manufactured by Schneider Electric for commercial electrical distribution and lighting panelboard applications. The unit combines a three-pole configuration, 60-ampere continuous current rating, thermal-magnetic protection, and an integrated shunt-trip function in a bolt-on enclosure. It is designed for 480Y/277-volt alternating-current systems and provides an interrupting rating of 35 kiloamperes at 480Y/277 volts and 65 kiloamperes at 240 volts. The breaker is intended for compatible Square D NF panelboards and incorporates Visi-Trip indication to provide a visible indication when the device has tripped.
Key Features:
- 60-Ampere Rating: Provides a rated continuous current capacity of 60 amperes for compatible branch and distribution circuits.
- Three-Pole Configuration: Simultaneously protects three conductors in compatible three-phase electrical distribution applications.
- 480Y/277-Volt Operation: Designed for electrical systems with a maximum operating voltage of 480Y/277 volts alternating current.
- Thermal-Magnetic Protection: Uses thermal and magnetic trip functions to respond to sustained overloads and high-current short-circuit conditions.
- High Interrupting Capacity: Rated at 35 kiloamperes at 480Y/277 volts and 65 kiloamperes at 240 volts alternating current.
- Shunt-Trip Function: Includes a shunt-trip accessory for electrically initiated breaker tripping from an external control circuit.
- Bolt-On Mounting: Uses a bolted connection for secure installation in compatible Square D NF panelboards.
- Trip Indication: Incorporates Visi-Trip local indication to simplify identification of a tripped circuit breaker.
The EGB34060SA delivers the reliability and precision required for overload, short-circuit, and remotely initiated circuit interruption in commercial electrical distribution systems.
