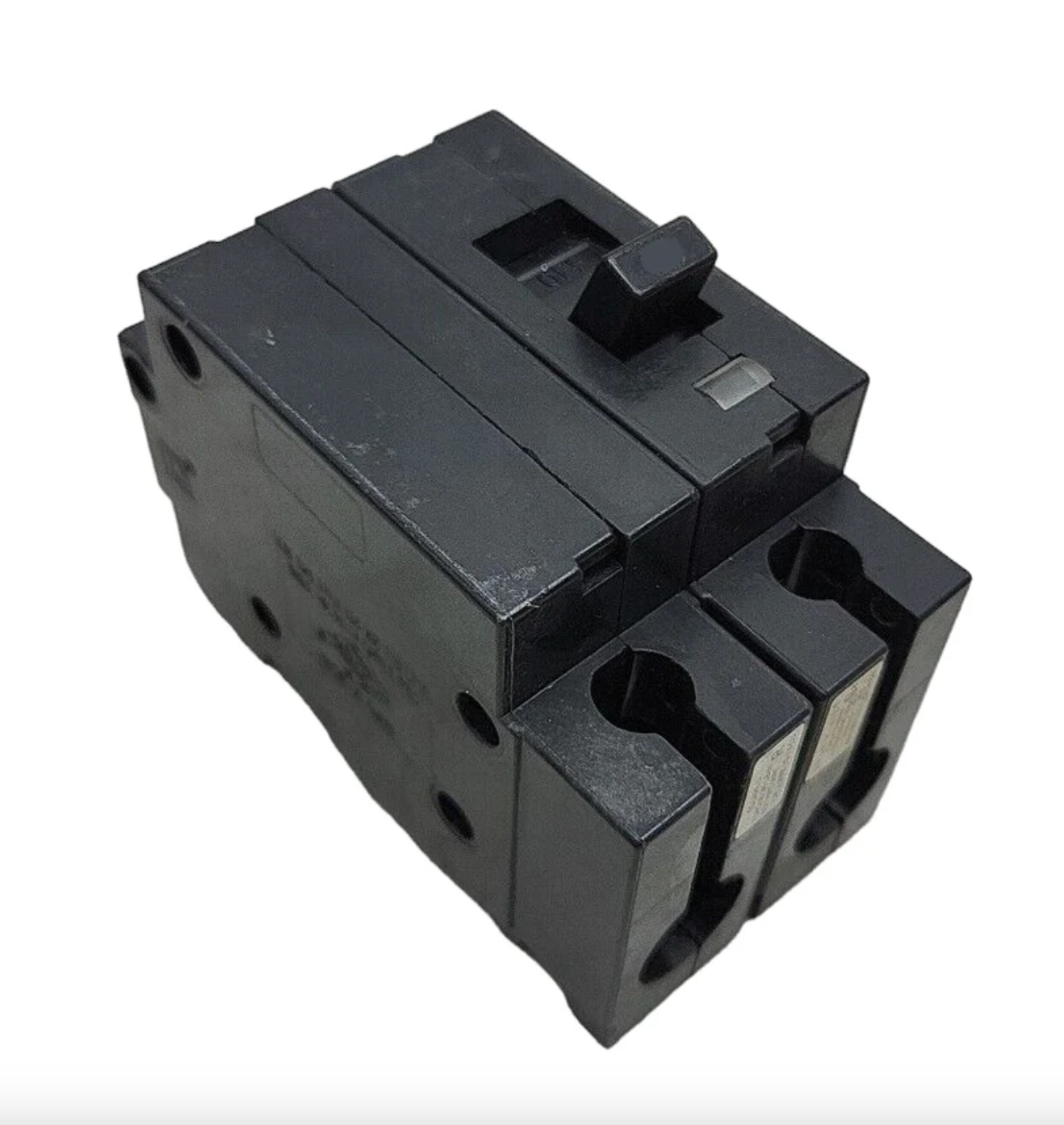

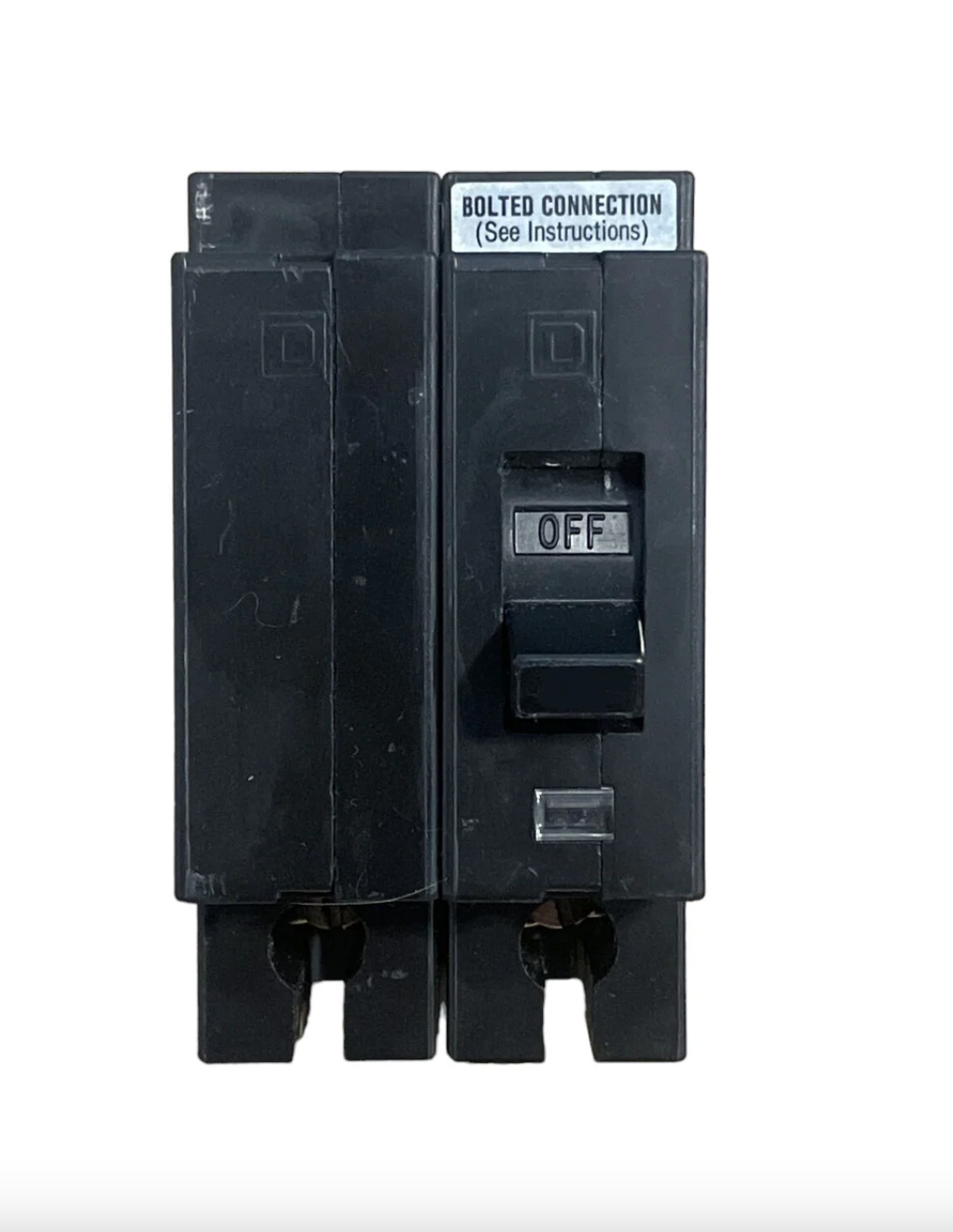

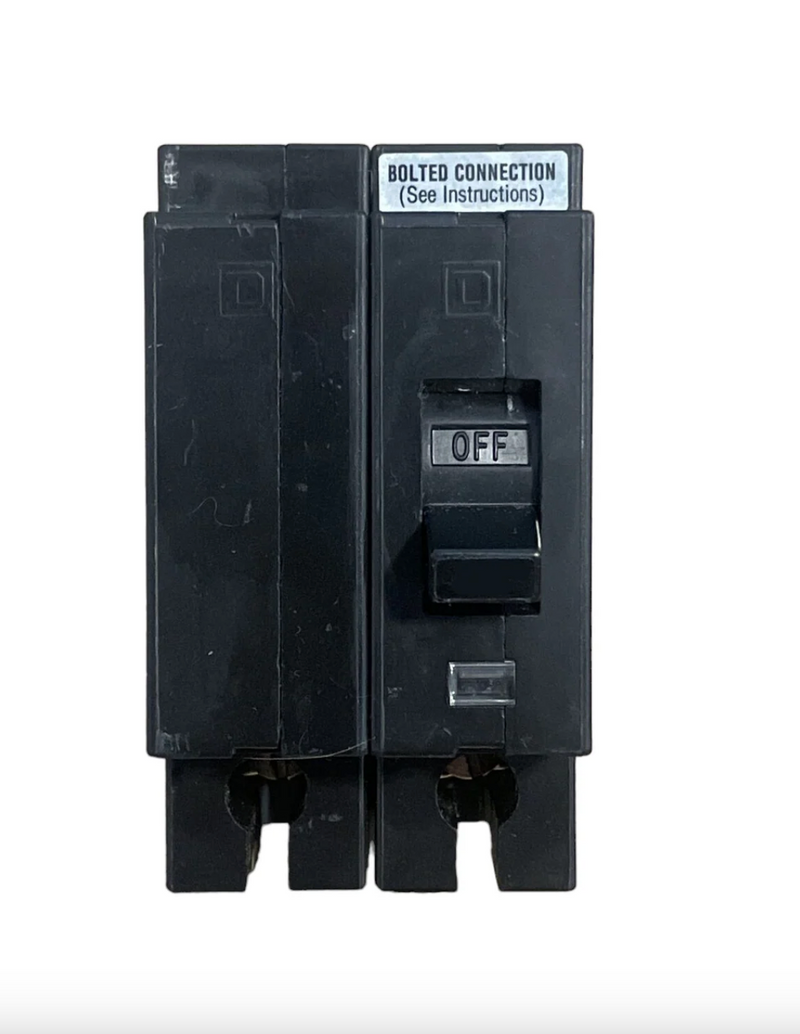

EHB24060 | Square D 60A 2-Pole 277/480VAC Molded Case Circuit Breaker
- Regular price
- $1,699.00
- Sale price
- $1,699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EHB24060
Description
The Square D EHB24060 is a 2-pole molded case circuit breaker engineered for reliable overcurrent protection in commercial and industrial electrical systems. With a 60 amp rating and support for 277/480 VAC applications, this breaker uses a thermal magnetic trip mechanism to provide dependable long-time and instantaneous fault protection. Designed for bolt-on installation, the Square D EHB24060 ensures secure integration into compatible panelboards.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Breakers |
| Part Number | EHB24060 |
| Subcategory | Molded Case Circuit Breakers |
| Series | EHB |
| Frame Type | EH |
| Current Rating | 60 A |
| Voltage Rating | 277/480 VAC |
| Number of Poles | 2 |
| Phase | Single Phase |
| Interrupting Rating | 14 kAIC at 277 V |
| Trip Unit Type | Thermal Magnetic |
| Trip Functions | Long-Time and Instantaneous (LI) |
| Mounting Type | Bolt-On |
| Certifications | UL Listed, CSA Certified |
| Operating Temperature | -25 °C to 70 °C |
| Weight | 1 lb |
Information About EHB24060
The EHB24060 is a Square D EHB series molded case circuit breaker built on the EH frame platform for compact and efficient power distribution. It is designed for use in NEHB panelboards and other compatible Square D systems requiring a 2-pole configuration. The breaker incorporates thermal magnetic protection technology to safeguard circuits against overloads and short circuits under standard operating conditions. UL Listed and CSA Certified, it is suitable for commercial and industrial environments where consistent performance and compliance are required.
Key Features:
- EHB Series Construction: Designed within the Square D EHB family for dependable molded case protection.
- 60 Amp Current Rating: Supports moderate-load branch circuits and feeder applications.
- 277/480 VAC Voltage Rating: Suitable for common commercial and industrial power systems.
- 2-Pole Configuration: Provides protection for single-phase, two-pole circuits.
- Thermal Magnetic Protection: Combines overload and short-circuit protection in one trip unit.
- LI Trip Function: Includes long-time and instantaneous trip response for fault conditions.
- Bolt-On Mounting: Ensures a secure and stable electrical connection.
The EHB24060 delivers the reliability and precision required for commercial and industrial power distribution protection.
