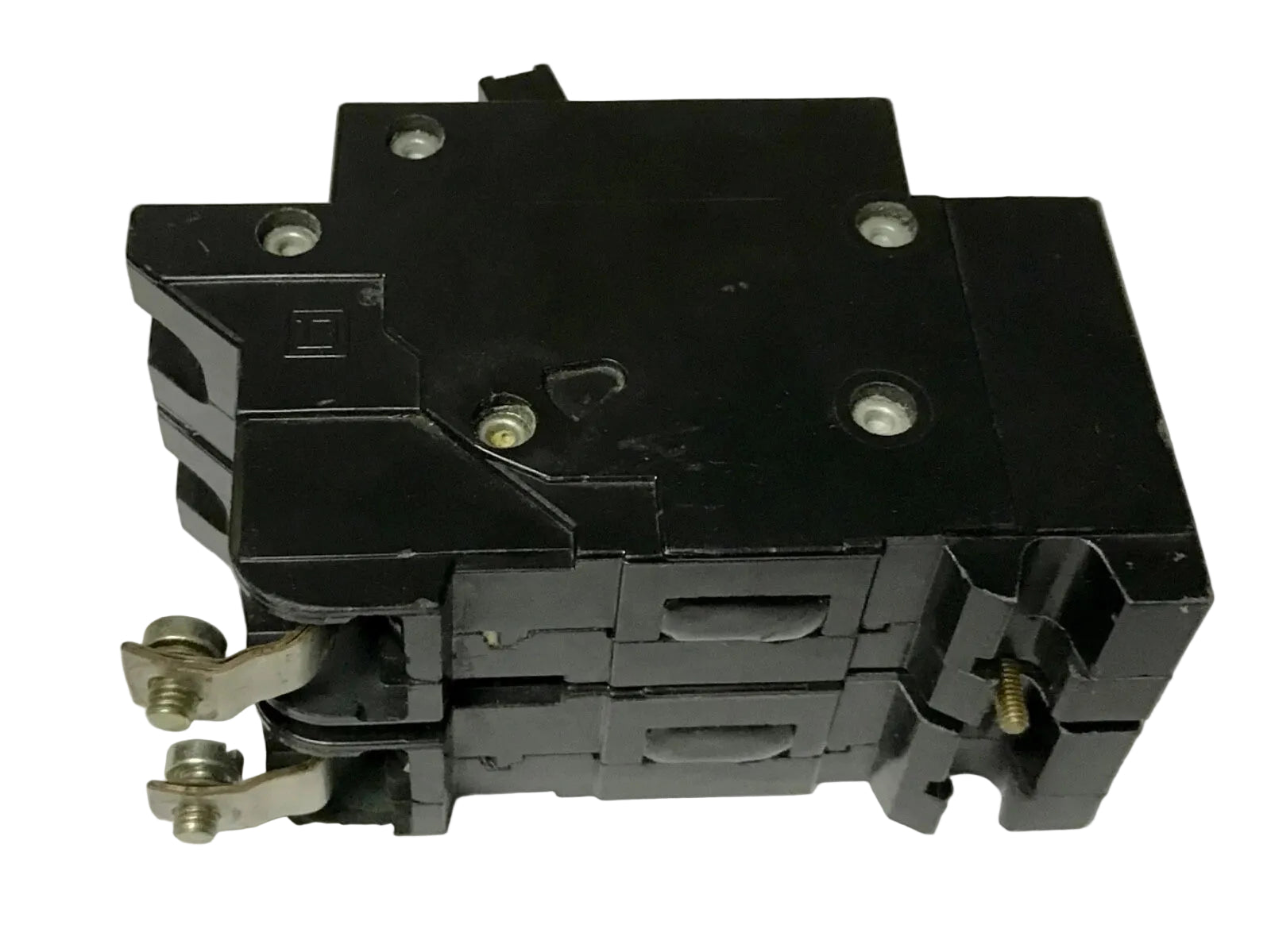

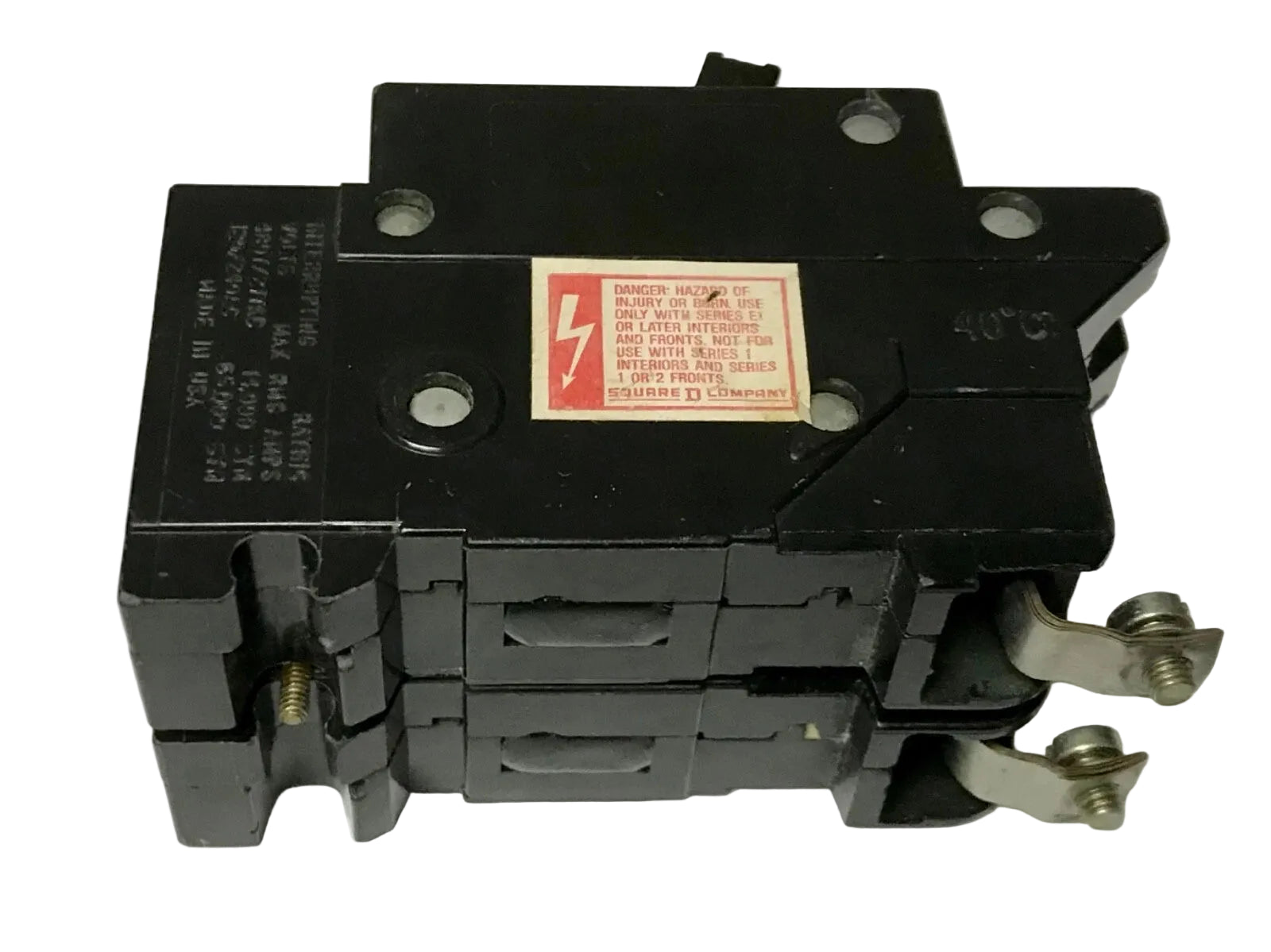

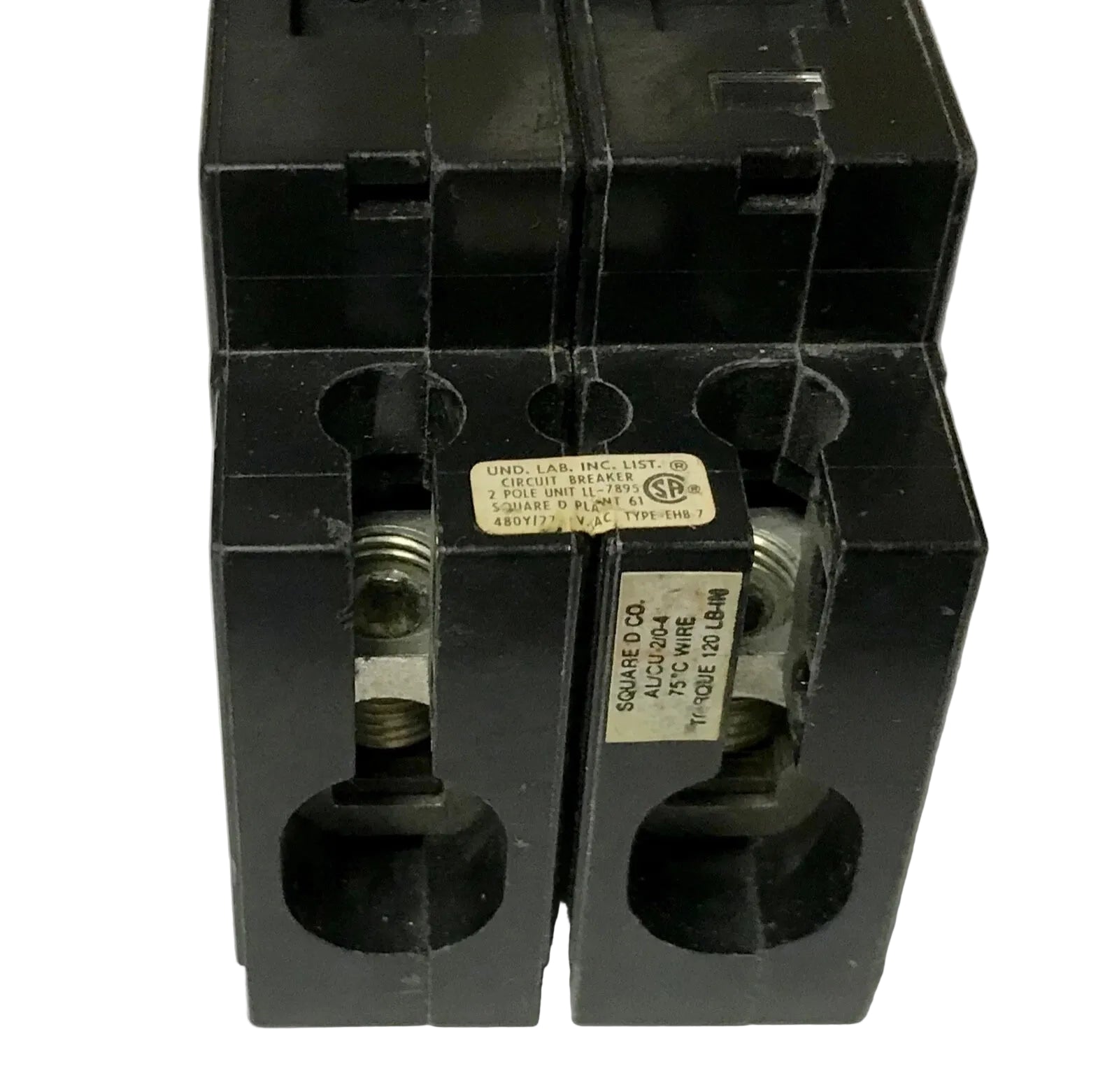

EHB24070 | Square D by Schneider Electric 2-Pole 70A Molded Case Circuit Breaker
- Regular price
- $1,144.00
- Sale price
- $1,144.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EHB24070
Description
The Schneider Electric EHB24070 is a two-pole molded case circuit breaker designed to provide reliable thermal-magnetic protection in commercial and industrial electrical systems. It is rated for 70 amps and operates at 277/480 VAC, making it suitable for branch circuit protection in panelboard applications. This breaker is engineered for bolt-on mounting and dependable overcurrent protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric / Square D |
| Category | Circuit Protection |
| Part Number | EHB24070 |
| Subcategory | Molded Case Circuit Breakers |
| Series | EHB |
| Product Type | Circuit Breaker |
| Rated Current | 70 A |
| Number of Poles | 2 |
| Rated Voltage | 277/480 VAC |
| Phase | Single Phase |
| Trip Unit Type | Thermal-Magnetic |
| Trip Functions | Long-Time, Instantaneous (LI) |
| Interrupting Rating | 14 kAIC @ 277 VAC |
| Mounting Type | Bolt-On |
| Frame Type | EH |
| Approvals | UL, CSA |
| Application | Panelboard Circuit Protection |
| Temperature Rating | 40°C |
| Weight | 2.4 lb |
Information About EHB24070
The EHB24070 is part of Square D by Schneider Electric’s EHB series of molded case circuit breakers. It is designed for use in compatible NEHB panelboards and provides long-time and instantaneous (LI) trip functions for effective overload and short-circuit protection. The breaker utilizes a thermal-magnetic trip mechanism to ensure consistent performance under varying load conditions. Its bolt-on construction supports secure installation and stable electrical connections in distribution systems.
Key Features
- EHB Series Circuit Breaker: Designed for branch circuit protection in panelboard systems.
- Thermal-Magnetic Protection: Provides long-time and instantaneous trip functionality.
- Two-Pole Configuration: Suitable for single-phase electrical applications.
- 70 Amp Current Rating: Supports moderate-load power distribution requirements.
- Bolt-On Mounting Design: Ensures secure installation and reliable connectivity.
- High Interrupting Capacity: Rated 14 kAIC at 277 VAC for fault protection.
- Certified Compliance: UL and CSA approved for regulated electrical installations.
The EHB24070 delivers the reliability and precision required for safe and efficient circuit protection in commercial and industrial power distribution systems.
