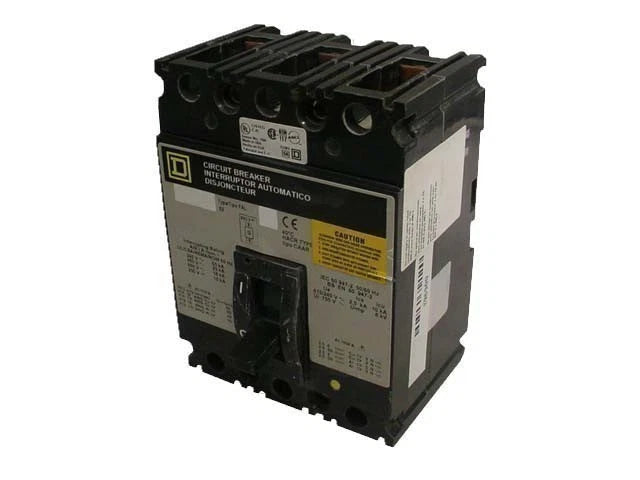

Square D FAL32070 70 Ampere Three-Pole Thermal-Magnetic Molded Case Circuit Breaker
- Regular price
- $685.00
- Sale price
- $685.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FAL32070
Description
The Square D FAL32070 is a Schneider Electric molded case circuit breaker designed to protect commercial and industrial electrical distribution circuits against overload and short-circuit conditions. It provides a 70-ampere rating, three-pole construction, 240-volt alternating-current and 250-volt direct-current capability, and fixed thermal-magnetic protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Breaker |
| Part Number | FAL32070 |
| Subcategory | Molded Case Circuit Breaker |
| Manufacturer | Schneider Electric |
| Product Family | FAL Series |
| Frame Type | F Frame |
| Current Rating | 70 amperes |
| Number of Poles | 3 |
| Voltage Rating | 240 volts alternating current / 250 volts direct current |
| Interrupting Rating | 10,000 amperes at 240 volts alternating current; 5,000 amperes at 250 volts direct current |
| Protection Type | Thermal-Magnetic |
| Trip Functions | Long-Time and Instantaneous |
| Mounting Type | Unit Mount |
| Electrical Connection | Line-Side and Load-Side Lugs |
| Terminal Type | AL100FA |
| Conductor Range | 14 through 1/0 American Wire Gauge Copper; 12 through 1/0 American Wire Gauge Aluminum |
| Dimensions | 6.40 × 4.50 × 4.13 inches |
| Production Status | Discontinued by Manufacturer |
| Weight | 4.96 lbs |
Information About FAL32070
The FAL32070 is a Square D FAL Series molded case circuit breaker manufactured by Schneider Electric with an F-frame construction for unit-mounted electrical distribution applications. Its thermal-magnetic trip mechanism combines long-time overload protection with instantaneous response to high-current faults. The breaker uses lug connections on both the line and load sides and accepts copper conductors from 14 through 1/0 American Wire Gauge or aluminum conductors from 12 through 1/0 American Wire Gauge. It is a discontinued manufacturer reference intended primarily for maintaining compatible legacy panelboards, switchboards, enclosures, and other electrical distribution equipment.
Key Features:
- 70-Ampere Current Rating: Provides a rated current of 70 amperes for three-phase branch and distribution circuit protection.
- Three-Pole Construction: Uses three poles with an ABC phase connection for compatible three-phase electrical systems.
- Dual Voltage Capability: Rated for 240 volts alternating current and 250 volts direct current.
- Thermal-Magnetic Protection: Uses a fixed thermal-magnetic trip mechanism for overload and short-circuit protection.
- Interrupting Capacity: Provides a 10,000-ampere interrupting rating at 240 volts alternating current and 5,000 amperes at 250 volts direct current.
- Long-Time and Instantaneous Functions: The thermal element responds to sustained overloads while the magnetic element provides instantaneous operation during high-current faults.
- Lug Connections: Uses AL100FA terminals with lug connections on both the line and load sides.
- Unit-Mount Configuration: Designed for unit mounting in compatible Square D electrical distribution equipment rather than an I-Line plug-on connection.
The FAL32070 delivers the reliability and precision required for overload and short-circuit protection in compatible commercial and industrial electrical distribution systems.
