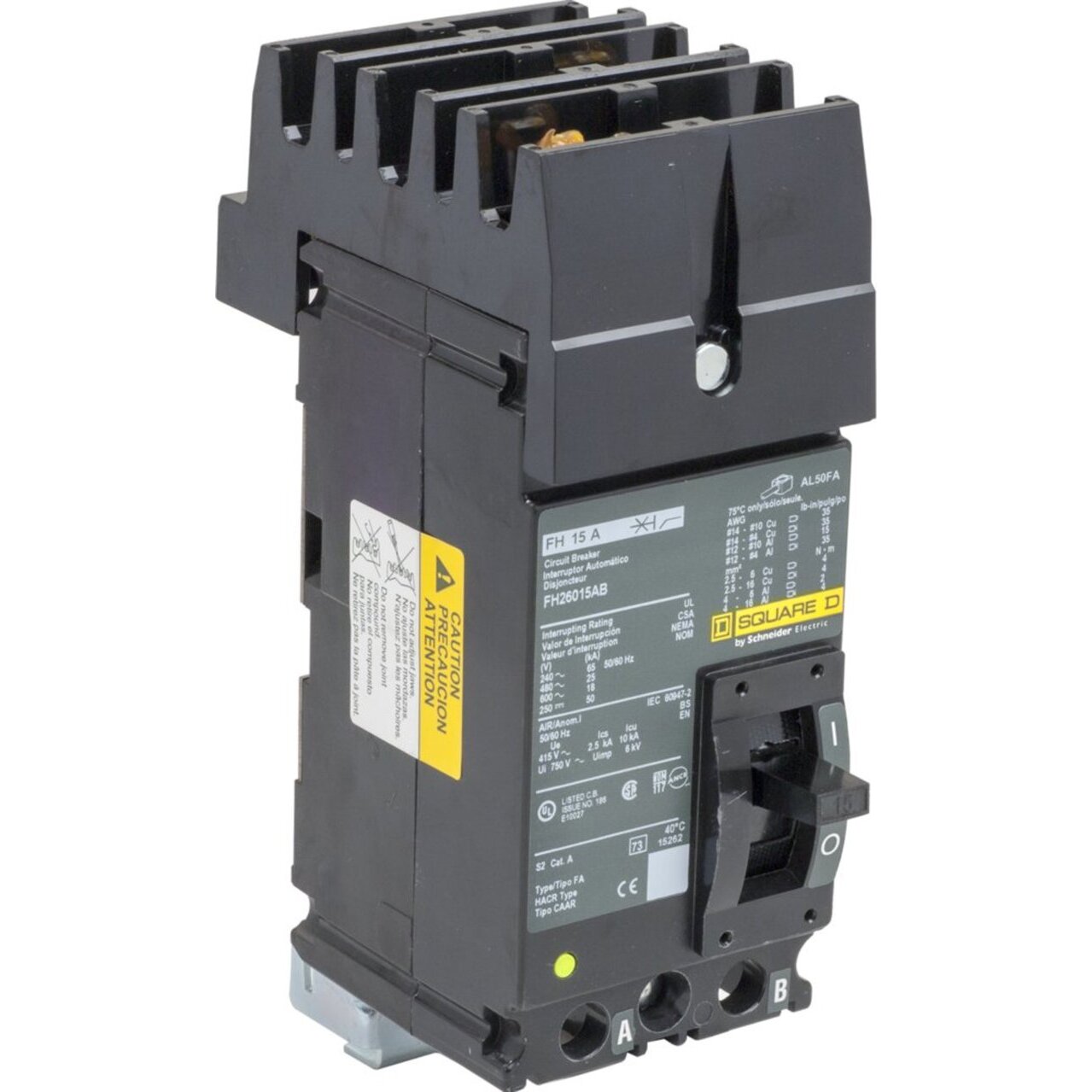

FH26015AB | Square D 15A 2-Pole 600V F-Frame Thermal-Magnetic I-Line Circuit Breaker
- Regular price
- $725.00
- Sale price
- $725.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: FH26015AB
Description
The Square D FH26015AB is a 2-pole thermal-magnetic molded case circuit breaker designed to provide reliable overcurrent protection in 600V AC systems. With a 15A rating and high interrupting performance, it supports safe operation in commercial and industrial distribution panels. Its I-Line plug-in interface allows fast installation and secure integration into compatible power distribution equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Breaker |
| Part Number | FH26015AB |
| Subcategory | Molded Case |
| Frame Type | F-Frame |
| Amperage | 15A |
| Voltage Rating | 600V AC |
| Poles | 2 |
| Phase Connection | A–B Phase |
| Trip Unit | Thermal-Magnetic (Long-Time & Instantaneous) |
| Interrupting Rating | 25kA @ 480V |
| Connection Type | I-Line Plug-In (line) / Lug (load) |
| Magnetic Hold Current | 275A |
| Magnetic Trip Current | 600A |
| Mounting Mode | I-Line |
| Certified Standards | UL Listed, CSA |
| Dimensions | 6.4" H × 3" W × 4.13" D |
| Country of Origin | Mexico |
| Weight | 1.89 lb |
Information About FH26015AB
The FH26015AB is part of the Square D PowerPact F-Frame family, engineered to deliver dependable circuit protection within I-Line panelboard systems. It uses a thermal-magnetic trip unit that combines long-time overload response with instantaneous short-circuit interruption for consistent performance. Designed for A–B phase configurations, it includes an I-Line plug-in connection on the line side and lug terminations on the load side to accommodate varied installation requirements. Built to UL and CSA standards, this breaker is suitable for commercial, HVAC, and general distribution applications requiring robust protection in a compact form factor.
Key Features:
- 15A Current Rating: Designed for light-duty branch circuits within 600V AC power systems.
- High Interrupting Capacity: Rated at 25kA at 480V for enhanced fault-clearing performance.
- Thermal-Magnetic Trip Technology: Provides accurate protection against overloads and short circuits.
- I-Line Plug-In Mounting: Enables rapid, tool-efficient installation into I-Line panelboards.
- F-Frame Construction: Ensures mechanical strength and long-term durability in industrial environments.
- Defined Magnetic Trip Range: 275A magnetic hold and 600A magnetic trip ensure precise fault response.
- Load-Side Lug Termination: Supports secure, code-compliant wiring connections.
- UL and CSA Certified: Meets recognized safety and performance criteria for broad application use.
The FH26015AB delivers the reliability and precision required for molded-case circuit protection in commercial and industrial distribution systems.
