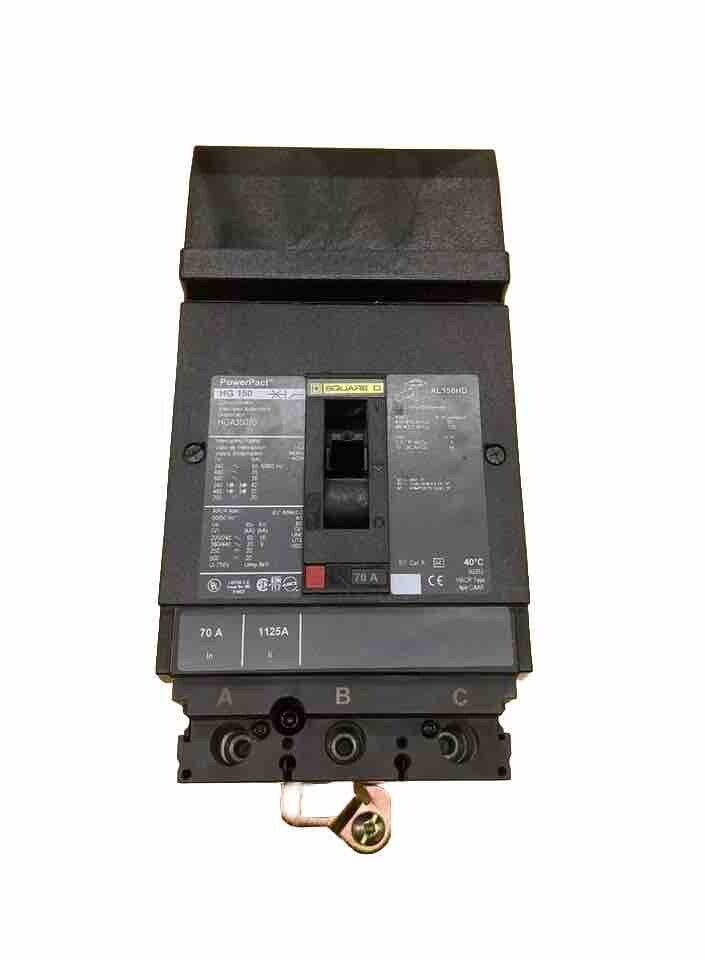

Square D HGA36070 PowerPact H-Frame 70A 3-Pole I-Line Circuit Breaker
- Regular price
- $1,612.00
- Sale price
- $1,612.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HGA36070
Description
The Square D HGA36070 is a high-performance molded case circuit breaker designed to deliver robust overcurrent and short-circuit protection in commercial switchboards. This 70-amp, three-pole component utilizes advanced thermal-magnetic tripping mechanisms to rapidly disconnect power during abnormal electrical loads. By maintaining strict voltage regulation, the breaker ensures continuous operational safety across heavy-duty industrial distribution networks.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D (Schneider Electric) |
| Category | Electrical Distribution |
| Part Number | HGA36070 |
| Subcategory | Circuit Breakers |
| Amperage Rating | 70 A |
| Voltage Rating | 600 VAC / 250 VDC |
| Number of Poles | 3 |
| Frame Type | H-Frame |
| Trip Unit Type | Thermal-Magnetic |
| Interrupting Rating | 35 kA at 480 VAC (G-Class) |
| Mounting Style | I-Line (Plug-On) |
| Phase Connection | ABC |
| Weight | 4.2 lbs |
Information About HGA36070
The HGA36070 is a vital protective device housed within a compact PowerPact H-frame enclosure, optimized for space-saving integration into modern panel assemblies. It features an I-Line plug-on mounting design that establishes a secure, direct mechanical connection to the switchboard bus system without complex wiring. Industrial facility operators deploy this unit to manage critical three-phase branch circuits that require a robust 35 kA interrupting capacity at 480 VAC. The breaker is constructed with a resilient thermoset composite casing that safely contains electrical arc flashes while maintaining rigorous compliance with commercial safety standards.
Key Features:
● Thermal-Magnetic Trip Unit: Detects sustained electrical overloads and instantaneous short circuits to immediately halt power distribution.
● I-Line Plug-On Mounting: Allows for rapid, secure physical installation directly onto the busbars of compatible electrical panels.
● High Interrupting Capacity: Delivers a reliable 35 kA interrupting rating at 480 VAC to safely isolate severe electrical faults.
● H-Frame Enclosure: Features a compact, high-dielectric strength molded case that minimizes the spatial footprint within crowded switchboards.
● Three-Pole Architecture: Engineered specifically to regulate and protect three-phase alternating current electrical infrastructure.
● Phase Isolation Barriers: Suppresses internal electrical arcing during a trip to prevent dangerous phase-to-phase flashovers.
The HGA36070 delivers the reliability and precision required for robust power management and fault prevention in demanding industrial environments.
