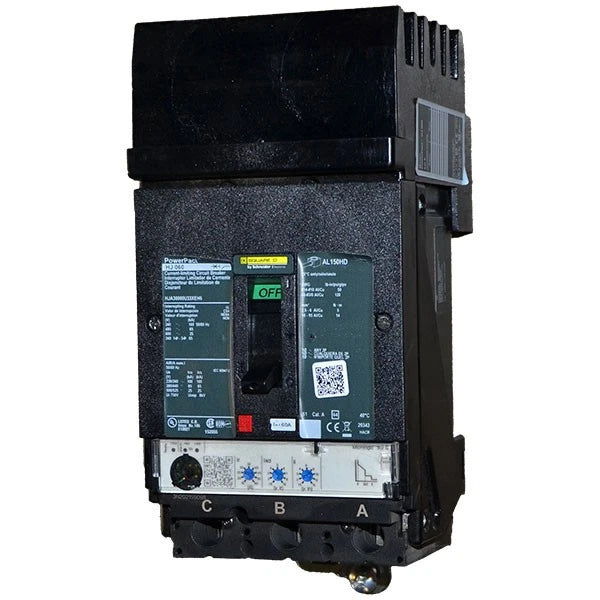

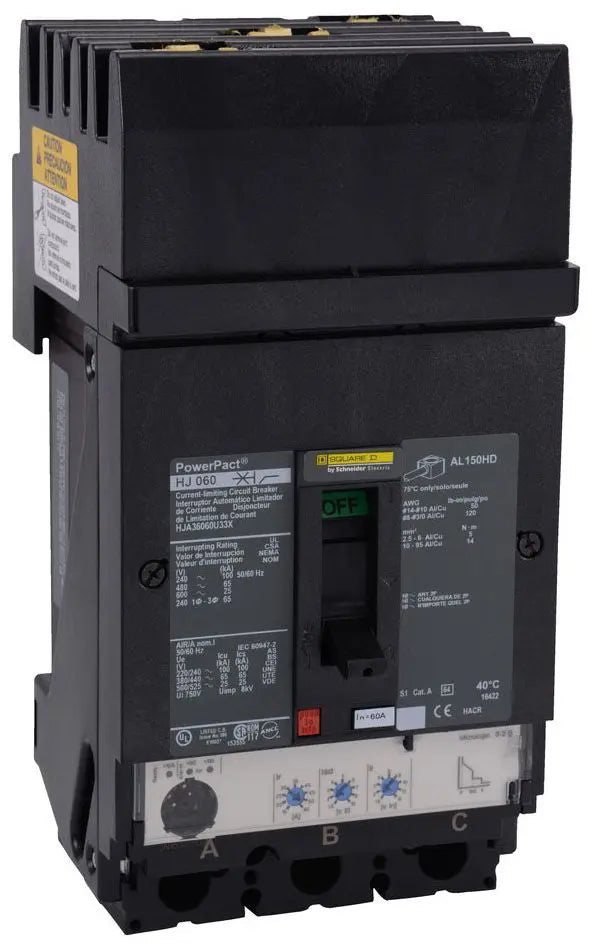

Square D HJA36060U33X PowerPact H 60 Ampere Three-Pole Electronic Molded Case Circuit Breaker
- Regular price
- $1,919.00
- Sale price
- $1,919.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HJA36060U33X
Description
The Square D HJA36060U33X is a Schneider Electric PowerPact H molded case circuit breaker designed for controlled protection of commercial and industrial power distribution circuits. It provides a 60-ampere rating, three-pole configuration, 600-volt alternating-current capability, and a Micrologic 3.2S electronic trip unit for long-time, short-time, and instantaneous protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Breaker |
| Part Number | HJA36060U33X |
| Subcategory | Molded Case Circuit Breaker |
| Manufacturer | Schneider Electric |
| Product Family | PowerPact H |
| Frame Type | H Frame |
| Rated Current | 60 amperes |
| Number of Poles | 3 |
| Rated Operational Voltage | 600 volts alternating current |
| Interrupting Capacity | 100,000 amperes at 240 volts; 65,000 amperes at 480 volts; 25,000 amperes at 600 volts alternating current |
| Trip Unit | Micrologic 3.2S Electronic Trip Unit |
| Protection Functions | Long-Time, Short-Time, and Instantaneous |
| Continuous Current Rating | 80 percent |
| Mounting Type | I-Line |
| Electrical Connection | I-Line Connection on Line Side; Mechanical Lugs on Load Side |
| Conductor Range | 14 American Wire Gauge through 3/0 American Wire Gauge, Aluminum or Copper |
| Phase Connection | ABC |
| Operating Temperature Rating | 40 degrees Celsius |
| Dimensions | 9.73 × 4.48 × 4.80 inches |
| Country of Origin | United States |
| Weight | 8.00 lbs |
Information About HJA36060U33X
The HJA36060U33X is a Square D PowerPact H Series molded case circuit breaker manufactured by Schneider Electric with an H-frame construction and I-Line mounting arrangement. Its solid-state Micrologic 3.2S electronic trip unit provides long-time, short-time, and instantaneous protective functions for more configurable circuit protection than a conventional thermal-magnetic mechanism. The breaker uses an I-Line connection on the line side and mechanical load-side lugs that accept aluminum or copper conductors from 14 American Wire Gauge through 3/0 American Wire Gauge. It is intended for compatible Square D panelboards and switchboards and carries an 80-percent continuous current rating with an ABC phase connection.
Key Features:
- 60-Ampere Current Rating: Provides a rated current of 60 amperes for commercial and industrial branch, feeder, and distribution circuits.
- Three-Pole Configuration: Uses three poles with an ABC phase connection for three-phase electrical distribution applications.
- 600-Volt Operation: Rated for electrical systems operating at up to 600 volts alternating current.
- Electronic Trip Protection: Incorporates a Micrologic 3.2S solid-state electronic trip unit for circuit protection and fault response.
- Three Protection Functions: Provides long-time overload, short-time fault, and instantaneous short-circuit protection.
- High Interrupting Capacity: Rated for 100,000 amperes at 240 volts, 65,000 amperes at 480 volts, and 25,000 amperes at 600 volts alternating current.
- I-Line Mounting: Uses Square D I-Line construction for installation in compatible panelboards and switchboards.
- Certified Construction: Listed or certified to applicable UL, CSA, International Electrotechnical Commission, CE, and CCC requirements.
The HJA36060U33X delivers the reliability and precision required for overload, short-circuit, and high-fault-current protection in commercial and industrial electrical distribution systems.
