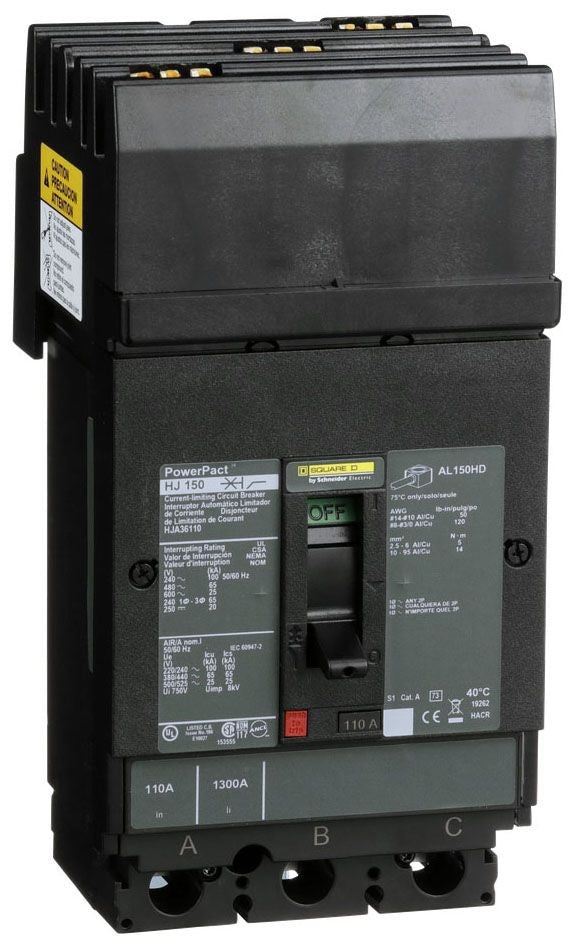

Square D HJA36110 PowerPact H 110 Ampere Three-Pole 600 Volt Molded Case Circuit Breaker
- Regular price
- $2,177.00
- Sale price
- $2,177.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HJA36110
Description
The Square D HJA36110 is a Schneider Electric PowerPact H molded case circuit breaker designed to protect commercial and industrial electrical distribution circuits from overloads and short circuits. It provides a 110-ampere rating, three-pole construction, a maximum 600-volt alternating-current rating, and thermal-magnetic protection for I-Line panelboard and switchboard applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Breaker |
| Part Number | HJA36110 |
| Subcategory | Molded Case Circuit Breaker |
| Manufacturer | Schneider Electric |
| Product Family | PowerPact H |
| Breaker Type | HJA |
| Frame Size | H Frame |
| Current Rating | 110 amperes |
| Number of Poles | 3 |
| Voltage Rating | 600 volts alternating current; 250 volts direct current |
| Interrupting Capacity | 100,000 amperes at 240 volts; 65,000 amperes at 480 volts; 25,000 amperes at 600 volts alternating current |
| Protection Type | Thermal-Magnetic |
| Trip Functions | Long-Time and Instantaneous |
| Continuous Current Rating | 80 percent |
| Mounting Type | I-Line Plug-On |
| Terminal Configuration | I-Line Connection on Line Side; Mechanical Lugs on Load Side |
| Phase Connection | ABC |
| Conductor Range | 14 American Wire Gauge through 3/0 American Wire Gauge, Aluminum or Copper |
| Temperature Rating | 40 degrees Celsius |
| Weight | 5.85 lbs |
Information About HJA36110
The HJA36110 is a Square D PowerPact H Series molded case circuit breaker manufactured by Schneider Electric with an H-frame construction and I-Line mounting arrangement. Its fixed thermal-magnetic trip system provides long-time overload and instantaneous short-circuit protection, while dual-break rotating contacts help limit peak current during fault conditions. The breaker has an I-Line connection on the line side and mechanical lugs on the load side for aluminum or copper conductors from 14 American Wire Gauge through 3/0 American Wire Gauge. It is intended for compatible three-phase distribution equipment and carries an 80-percent continuous current rating with an ABC phase connection.
Key Features:
- 110-Ampere Current Rating: Provides a 110-ampere continuous current rating for feeder and distribution circuit protection.
- Three-Pole Construction: Uses three poles with an ABC phase connection for three-phase electrical systems.
- 600-Volt Rating: Supports alternating-current distribution systems operating at up to 600 volts.
- Thermal-Magnetic Protection: Provides fixed long-time overload and instantaneous short-circuit protection without an electronic trip unit.
- High Interrupting Capacity: Rated for 100,000 amperes at 240 volts, 65,000 amperes at 480 volts, and 25,000 amperes at 600 volts alternating current.
- I-Line Installation: Uses an I-Line plug-on line connection for installation and removal in compatible Square D distribution equipment.
- Load-Side Lug Connection: Accepts aluminum or copper conductors from 14 American Wire Gauge through 3/0 American Wire Gauge.
- Standards Compliance: The PowerPact H configuration is listed or certified to applicable UL, CSA, NOM, and International Electrotechnical Commission requirements and is CE marked.
The HJA36110 delivers the reliability and precision required for overload protection, short-circuit interruption, and circuit isolation in commercial and industrial power distribution systems.
Description
The Square D HJA36110 is a Schneider Electric PowerPact H molded case circuit breaker designed to protect commercial and industrial electrical distribution circuits from overloads and short circuits. It provides a 110-ampere rating, three-pole construction, a maximum 600-volt alternating-current rating, and thermal-magnetic protection for I-Line panelboard and switchboard applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Breaker |
| Part Number | HJA36110 |
| Subcategory | Molded Case Circuit Breaker |
| Manufacturer | Schneider Electric |
| Product Family | PowerPact H |
| Breaker Type | HJA |
| Frame Size | H Frame |
| Current Rating | 110 amperes |
| Number of Poles | 3 |
| Voltage Rating | 600 volts alternating current; 250 volts direct current |
| Interrupting Capacity | 100,000 amperes at 240 volts; 65,000 amperes at 480 volts; 25,000 amperes at 600 volts alternating current |
| Protection Type | Thermal-Magnetic |
| Trip Functions | Long-Time and Instantaneous |
| Continuous Current Rating | 80 percent |
| Mounting Type | I-Line Plug-On |
| Terminal Configuration | I-Line Connection on Line Side; Mechanical Lugs on Load Side |
| Phase Connection | ABC |
| Conductor Range | 14 American Wire Gauge through 3/0 American Wire Gauge, Aluminum or Copper |
| Temperature Rating | 40 degrees Celsius |
| Weight | 5.85 lbs |
Information About HJA36110
The HJA36110 is a Square D PowerPact H Series molded case circuit breaker manufactured by Schneider Electric with an H-frame construction and I-Line mounting arrangement. Its fixed thermal-magnetic trip system provides long-time overload and instantaneous short-circuit protection, while dual-break rotating contacts help limit peak current during fault conditions. The breaker has an I-Line connection on the line side and mechanical lugs on the load side for aluminum or copper conductors from 14 American Wire Gauge through 3/0 American Wire Gauge. It is intended for compatible three-phase distribution equipment and carries an 80-percent continuous current rating with an ABC phase connection.
Key Features:
- 110-Ampere Current Rating: Provides a 110-ampere continuous current rating for feeder and distribution circuit protection.
- Three-Pole Construction: Uses three poles with an ABC phase connection for three-phase electrical systems.
- 600-Volt Rating: Supports alternating-current distribution systems operating at up to 600 volts.
- Thermal-Magnetic Protection: Provides fixed long-time overload and instantaneous short-circuit protection without an electronic trip unit.
- High Interrupting Capacity: Rated for 100,000 amperes at 240 volts, 65,000 amperes at 480 volts, and 25,000 amperes at 600 volts alternating current.
- I-Line Installation: Uses an I-Line plug-on line connection for installation and removal in compatible Square D distribution equipment.
- Load-Side Lug Connection: Accepts aluminum or copper conductors from 14 American Wire Gauge through 3/0 American Wire Gauge.
- Standards Compliance: The PowerPact H configuration is listed or certified to applicable UL, CSA, NOM, and International Electrotechnical Commission requirements and is CE marked.
The HJA36110 delivers the reliability and precision required for overload protection, short-circuit interruption, and circuit isolation in commercial and industrial power distribution systems.
