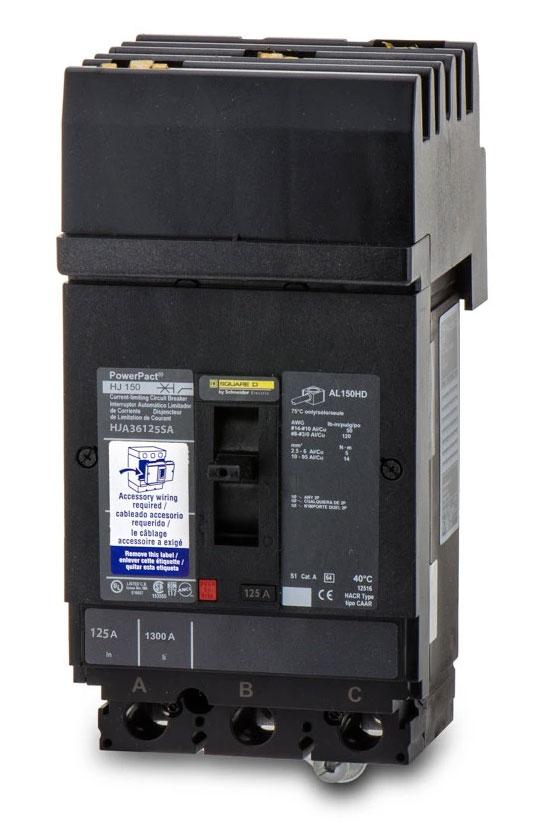

Square D HJA36125SA PowerPact H 125 Ampere Three-Pole Molded Case Circuit Breaker with Shunt Trip
- Regular price
- $2,069.00
- Sale price
- $2,069.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HJA36125SA
Description
The Square D HJA36125SA is a Schneider Electric PowerPact H molded case circuit breaker designed for overload and short-circuit protection in commercial and industrial power distribution systems. It provides a 125-ampere continuous current rating, three-pole protection, a maximum 600-volt alternating-current rating, and a factory-installed 120-volt alternating-current shunt trip for remote tripping.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Breaker |
| Part Number | HJA36125SA |
| Subcategory | Molded Case Circuit Breaker |
| Manufacturer | Schneider Electric |
| Product Family | PowerPact H |
| Breaker Type | HJA |
| Frame Size | H Frame |
| Continuous Current Rating | 125 amperes |
| Number of Poles | 3 |
| Maximum Voltage | 600 volts alternating current |
| Interrupting Capacity | 100,000 amperes at 240 volts; 65,000 amperes at 480 volts; 25,000 amperes at 600 volts alternating current |
| Trip Protection | Thermal-Magnetic, Long-Time and Instantaneous |
| Shunt Trip | Factory-Installed 120-Volt Alternating-Current Shunt Trip |
| Continuous Rating | 80 percent |
| Mounting Type | I-Line Plug-In |
| Phase Connection | ABC |
| Load-Side Connection | Mechanical Lugs |
| Conductor Range | 14 American Wire Gauge through 3/0 American Wire Gauge, Aluminum or Copper |
| Dimensions | 6.4 × 4.09 × 3.4 inches |
| Standards | UL 489, CSA, NOM, International Electrotechnical Commission 60947-2 |
| Country of Origin | United States |
| Weight | 6.00 lbs |
Information About HJA36125SA
The HJA36125SA is a Square D PowerPact H Series molded case circuit breaker manufactured by Schneider Electric for I-Line electrical distribution equipment. Its H-frame construction combines a non-interchangeable thermal-magnetic trip mechanism with dual-break rotating contacts and an 80-percent continuous current rating. The breaker uses an I-Line connection on the line side and mechanical load-side lugs accepting aluminum or copper conductors from 14 American Wire Gauge through 3/0 American Wire Gauge. It is suitable for compatible panelboards and switchboards and includes a factory-installed 120-volt alternating-current shunt trip that allows the breaker to be opened by an external control signal.
Key Features:
- 125-Ampere Current Rating: Provides a continuous current rating of 125 amperes for commercial and industrial distribution circuits.
- Three-Pole Configuration: Provides simultaneous circuit protection across three phases with an ABC phase connection.
- 600-Volt Maximum Rating: Designed for alternating-current applications up to 600 volts.
- Thermal-Magnetic Protection: Uses fixed thermal and magnetic trip elements to provide long-time overload and instantaneous short-circuit protection.
- High Interrupting Capacity: Rated to interrupt 100,000 amperes at 240 volts, 65,000 amperes at 480 volts, and 25,000 amperes at 600 volts alternating current.
- I-Line Plug-In Connection: Uses the Square D I-Line mounting system for installation and removal within compatible distribution equipment.
- 120-Volt Shunt Trip: Includes a factory-installed 120-volt alternating-current shunt trip for electrically initiated remote opening.
- Standards Compliance: PowerPact H breakers in this configuration comply with UL, CSA, NOM, and International Electrotechnical Commission requirements.
The HJA36125SA delivers the reliability and precision required for overload protection, short-circuit interruption, and remotely controlled circuit isolation in commercial and industrial power distribution systems.
