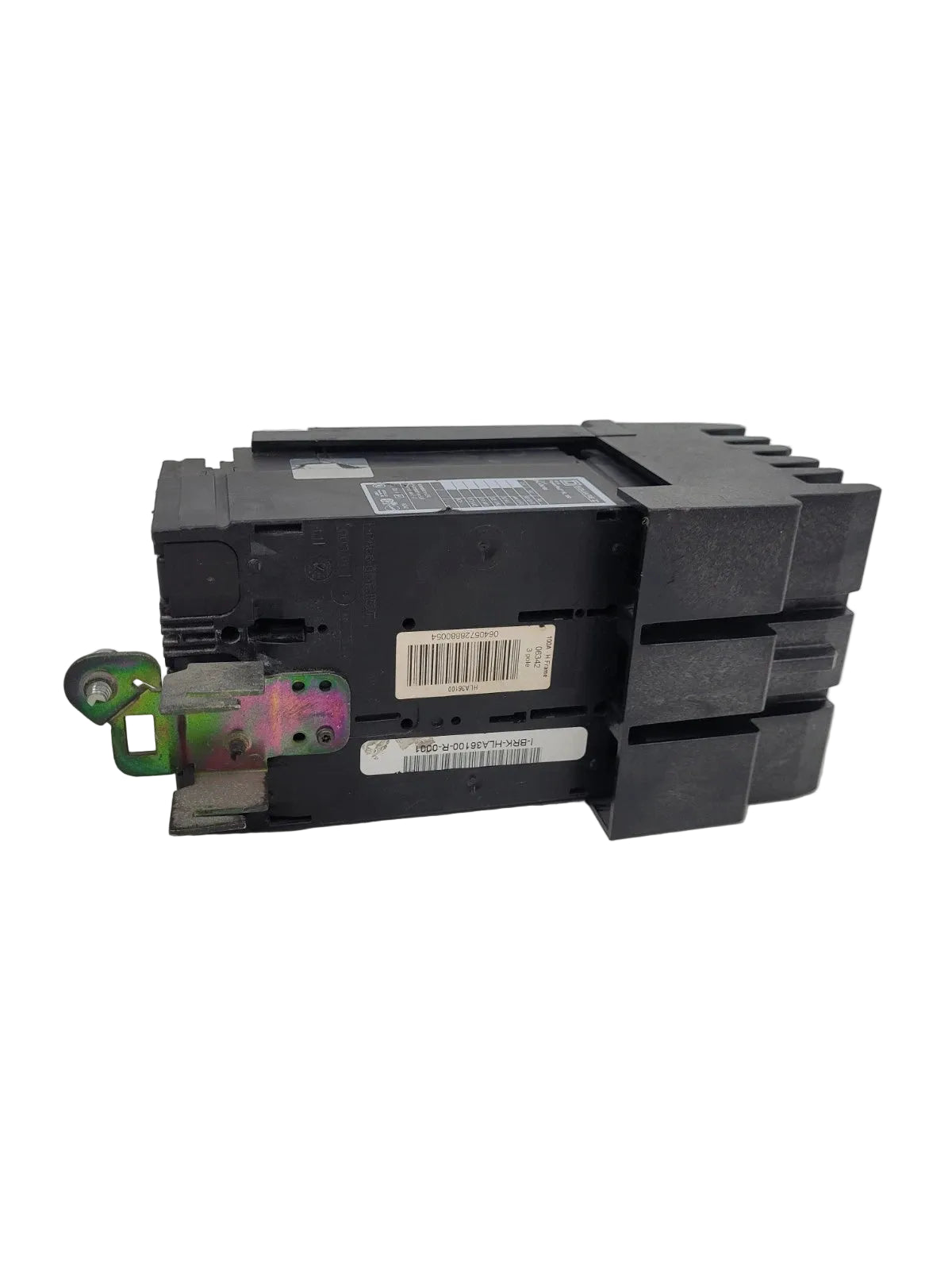

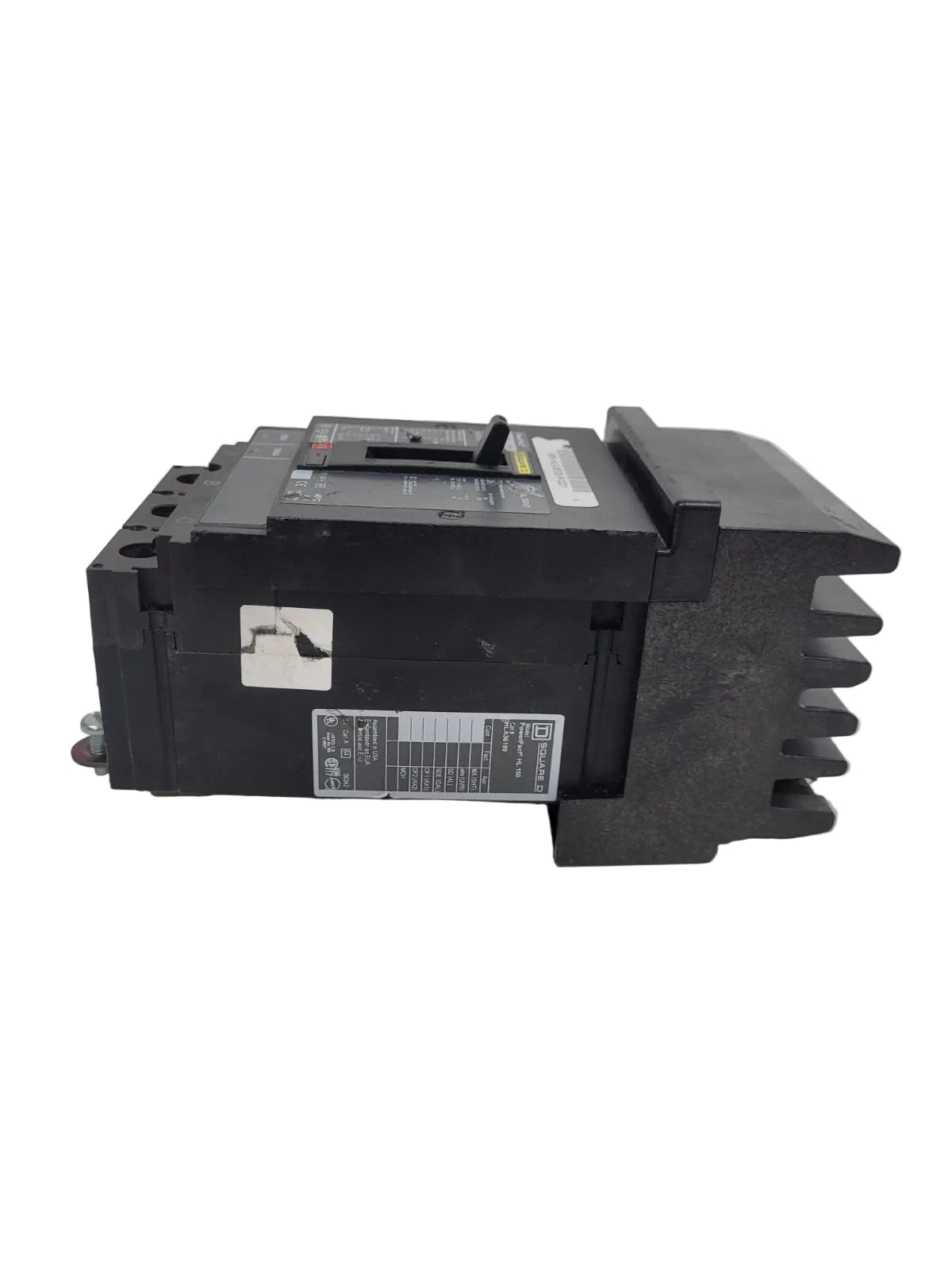

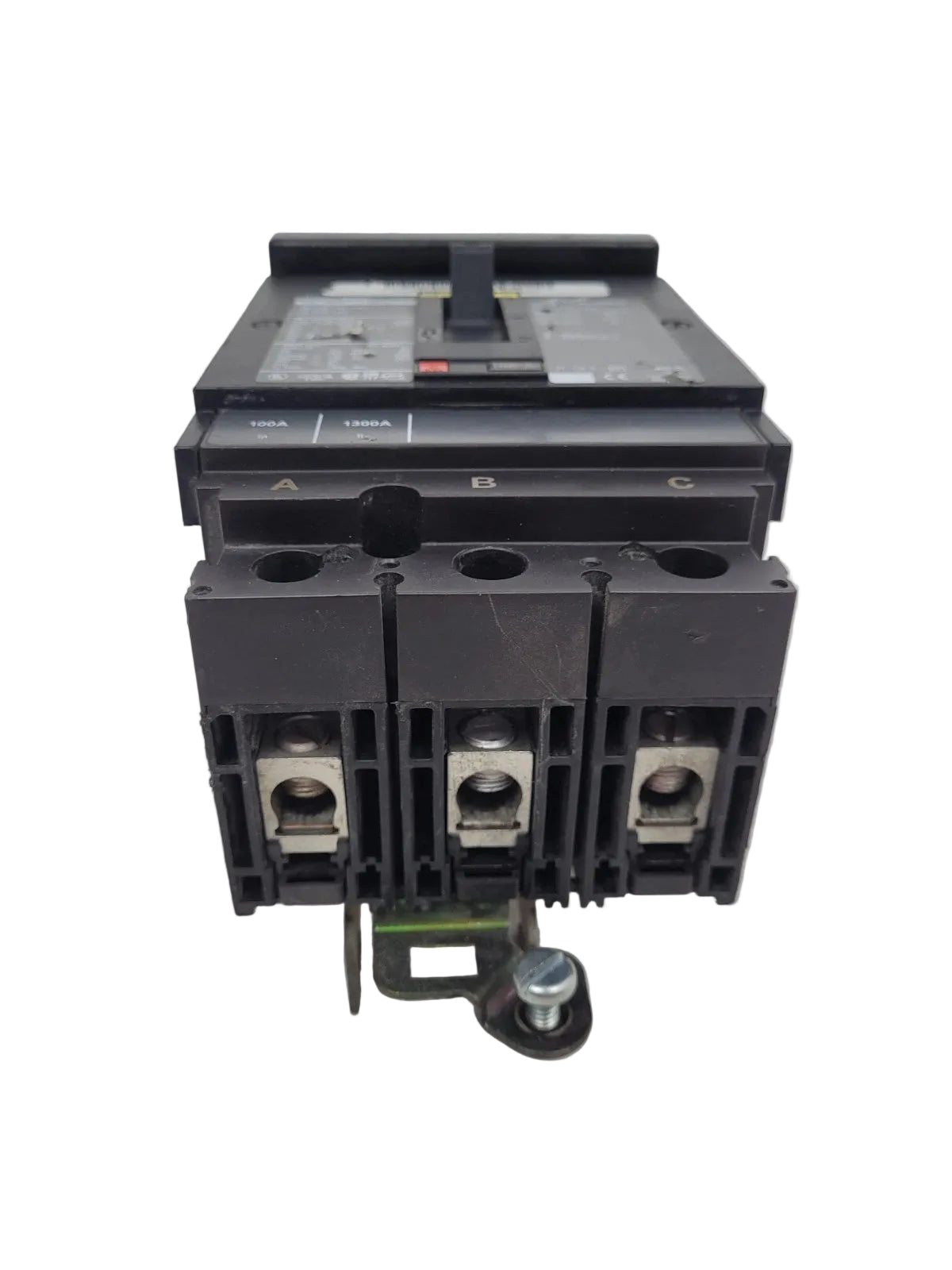

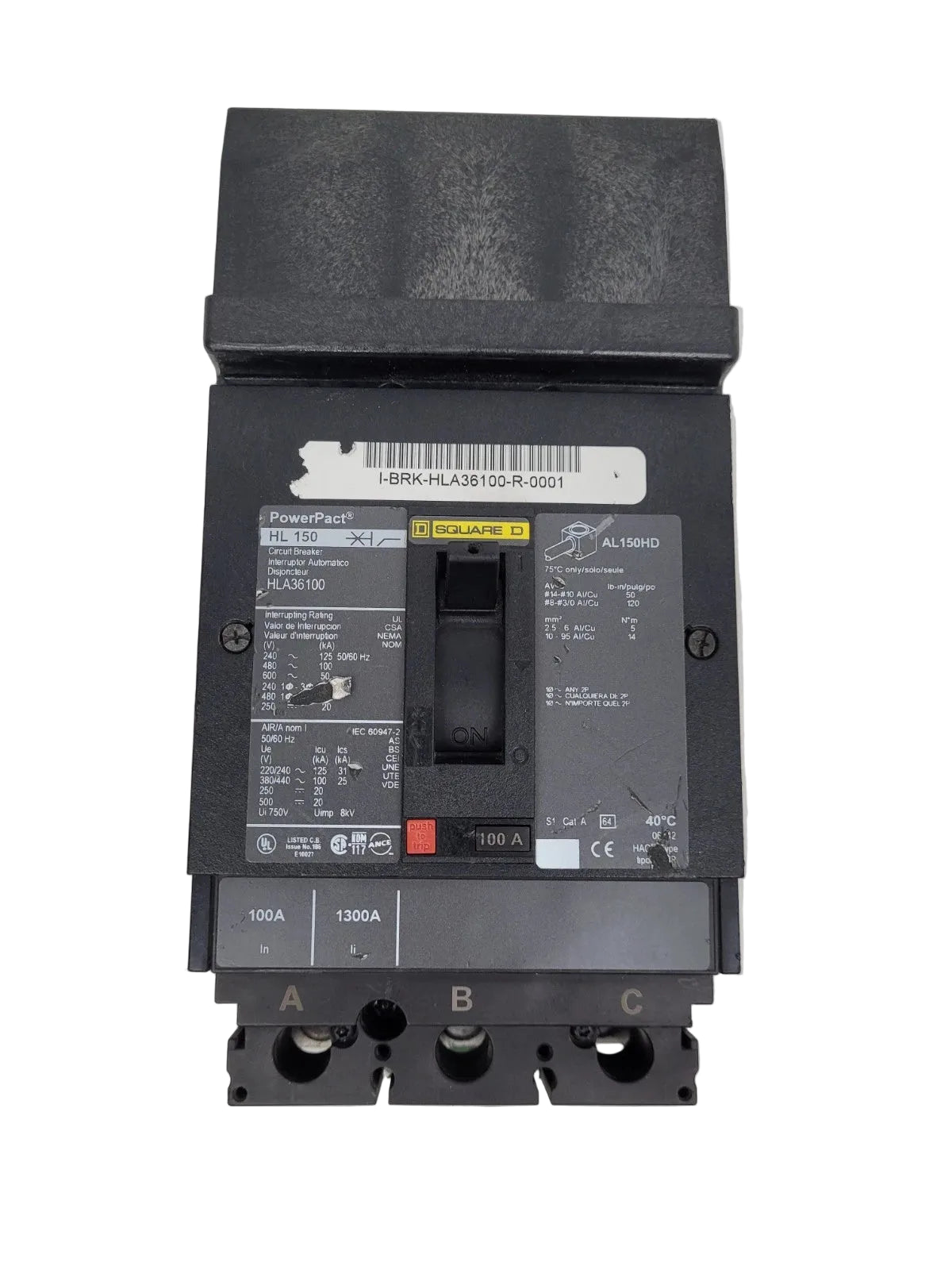

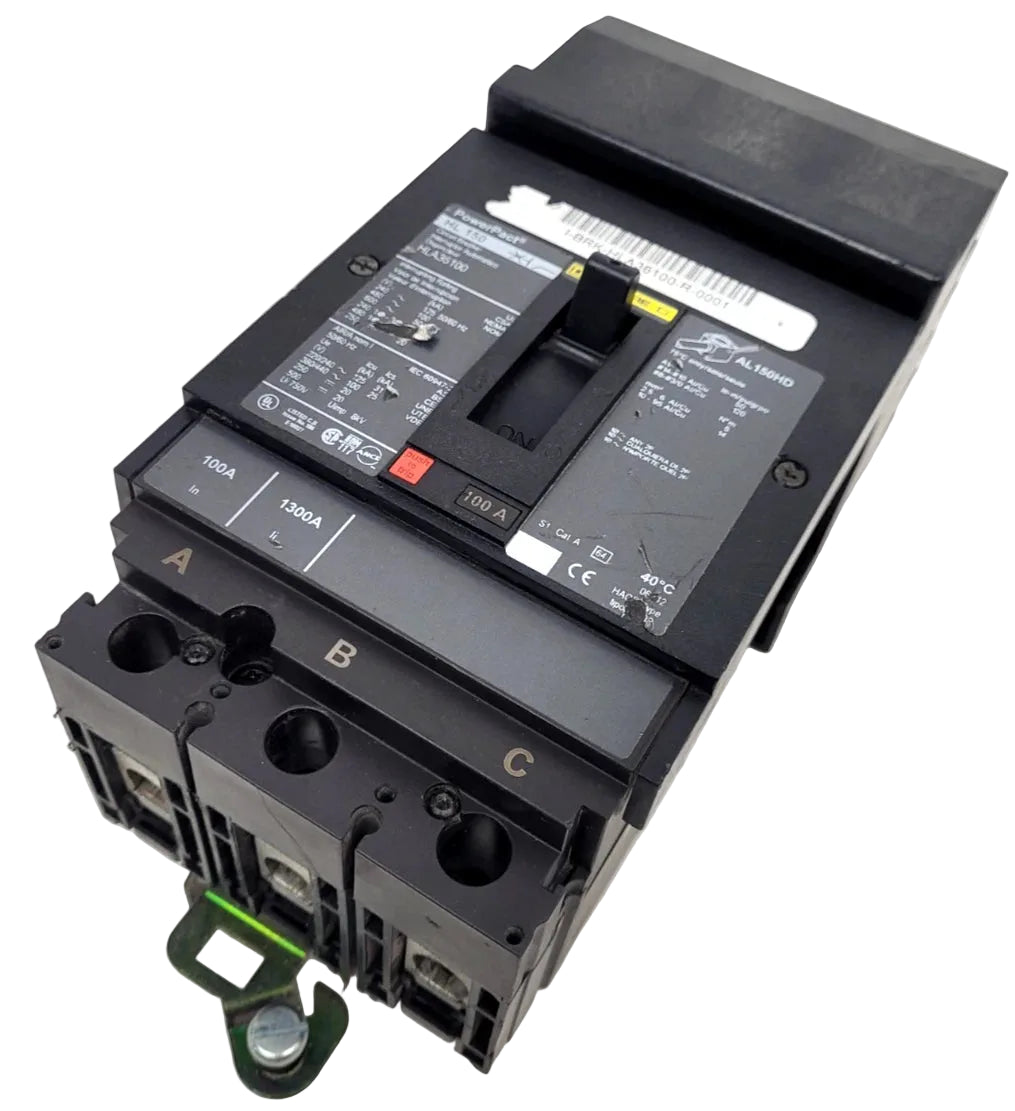

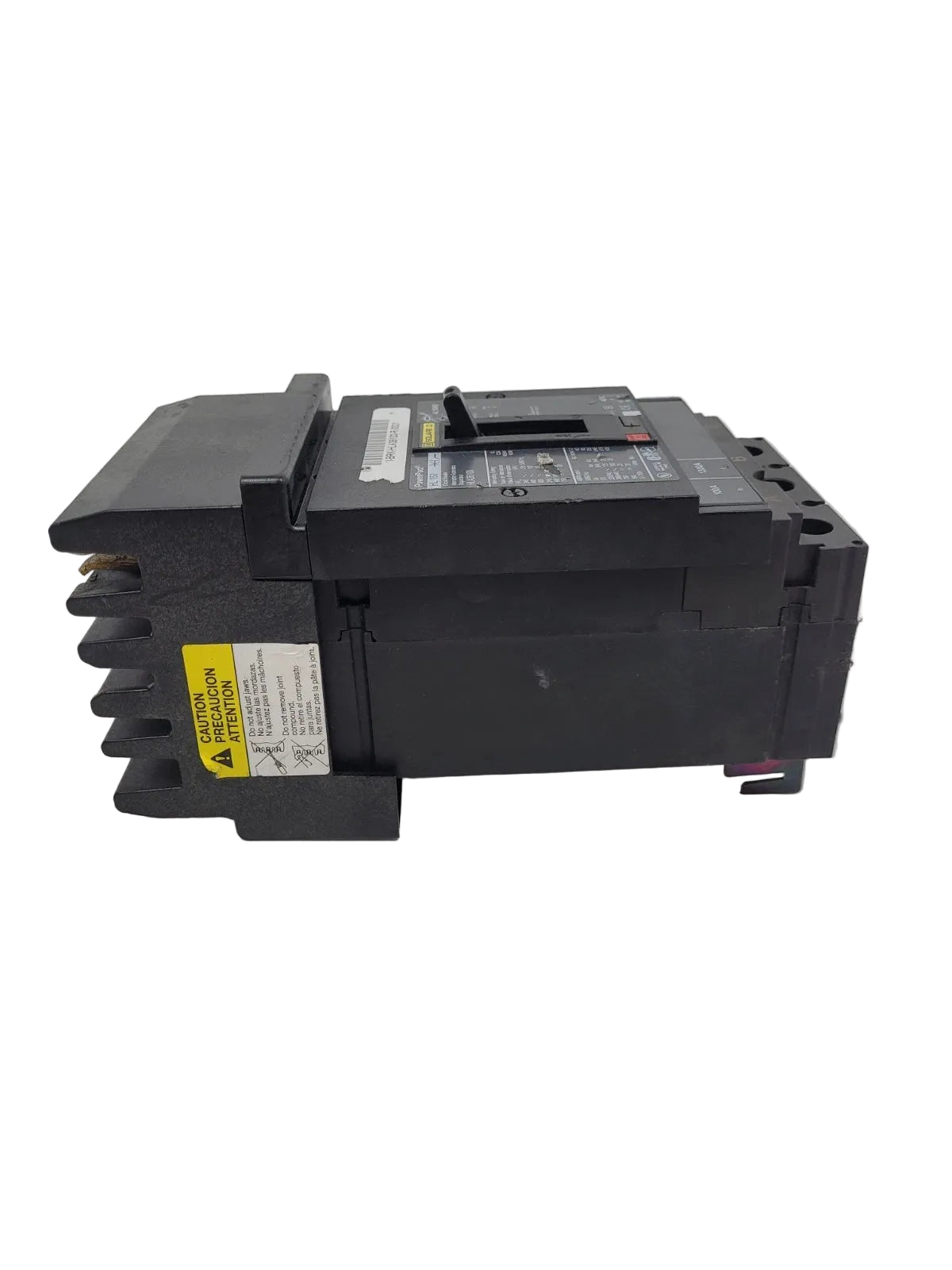

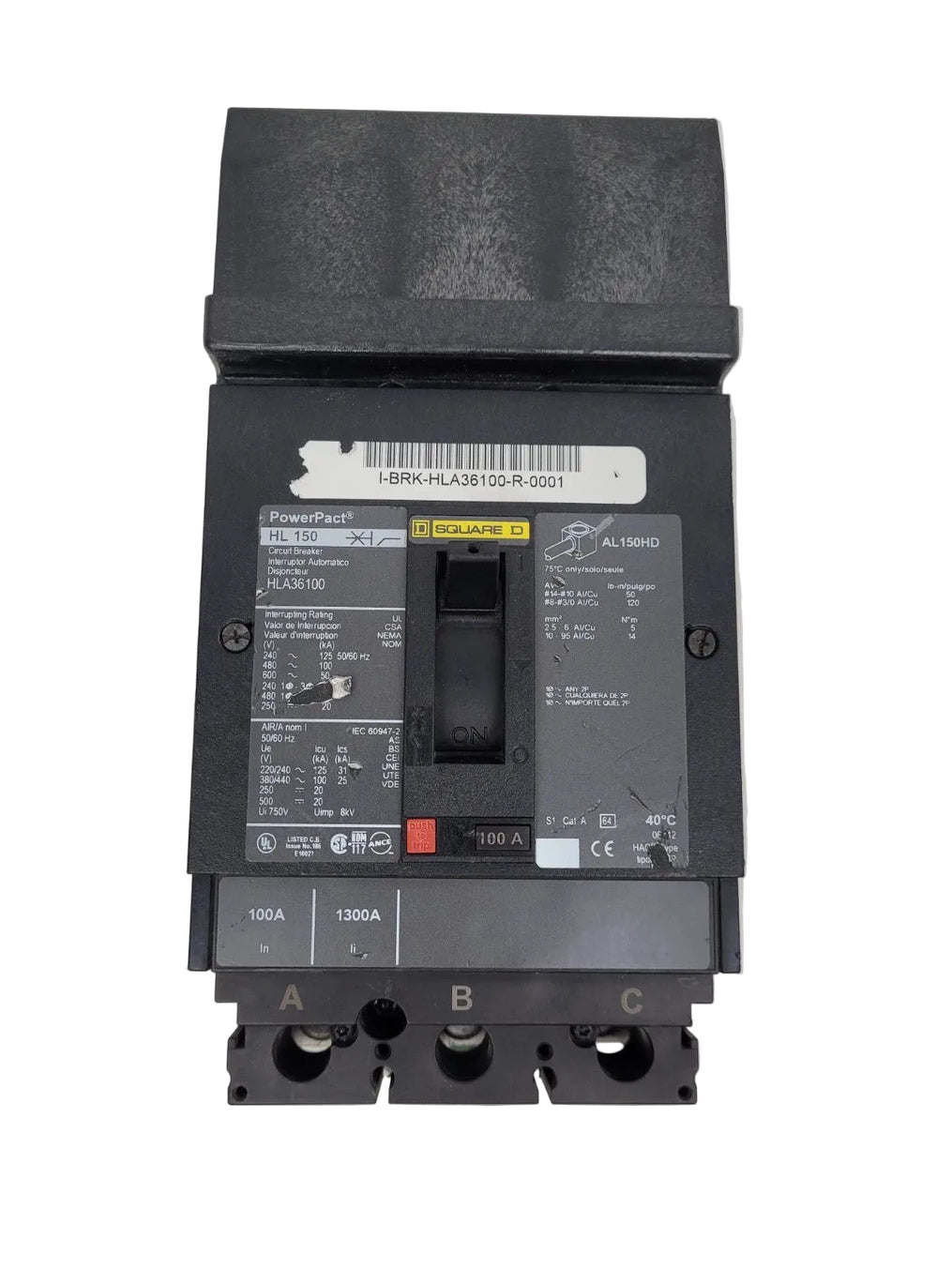

HLA36100 | Square D by Schneider Electric 3-Pole 100A Molded Case Circuit Breaker
- Regular price
- $1,854.00
- Sale price
- $1,854.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: HLA36100
Description
The Square D by Schneider Electric HLA36100 is a three-pole molded case circuit breaker designed for high-capacity power distribution and circuit protection. It provides thermal-magnetic protection with long-time and instantaneous trip functions for reliable fault interruption. This breaker is engineered for I-Line style plug-in installation in commercial and industrial electrical systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D by Schneider Electric |
| Category | Circuit Protection |
| Part Number | HLA36100 |
| Subcategory | Molded Case Circuit Breakers |
| Product Family | PowerPact |
| Breaker Type | HLA |
| Rated Current | 100 A |
| Number of Poles | 3 |
| Phase | Three Phase |
| Rated Voltage | 600 VAC |
| Trip Unit Type | Thermal-Magnetic |
| Trip Functions | Long-Time, Instantaneous (LI) |
| Interrupting Rating | 100 kA @ 480 VAC |

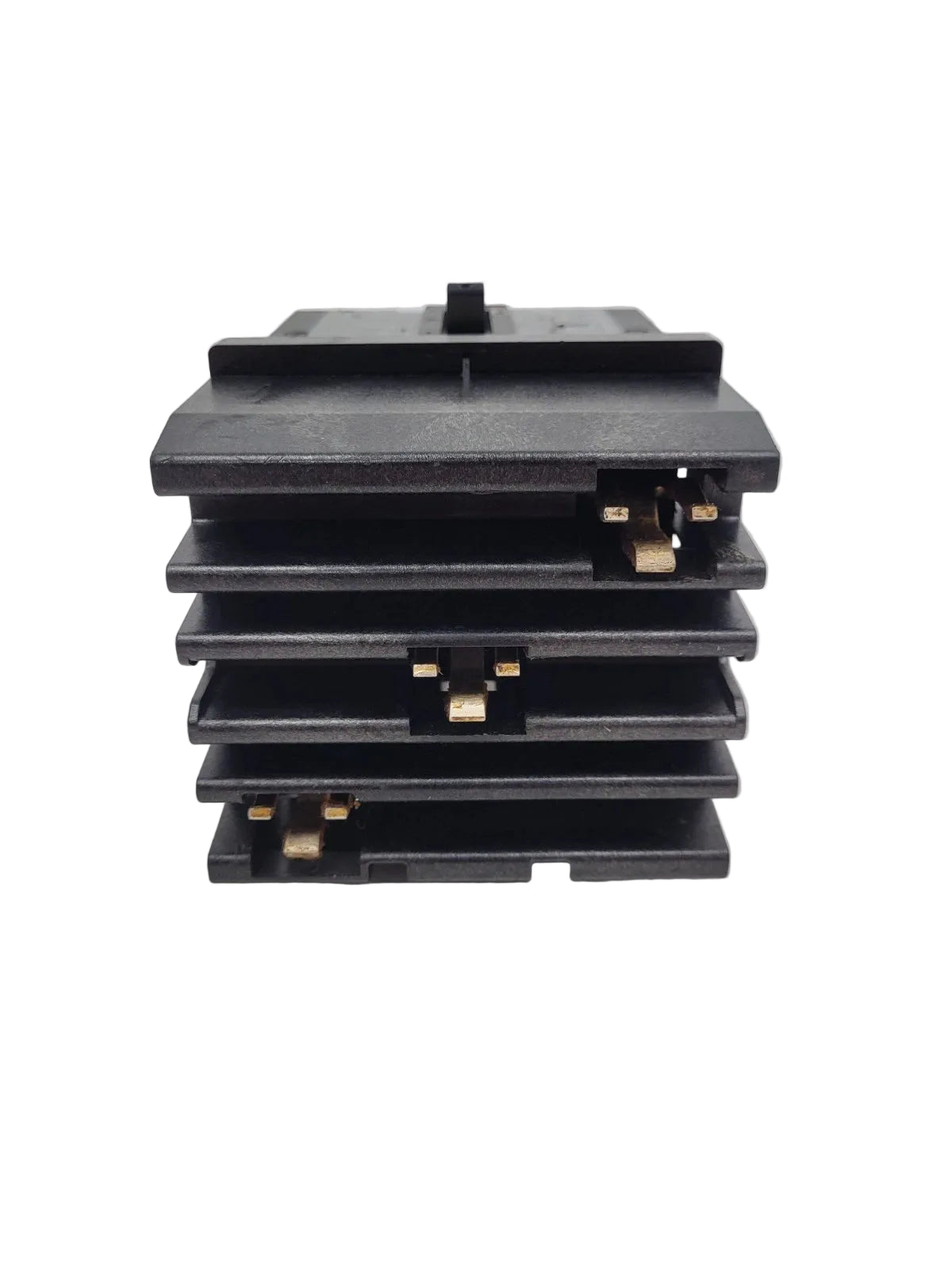

| Connection Type | I-Line Style Plug-In |
| Dimensions (H x W x D) | 9.73 in x 4.48 in x 4.36 in |
| Weight | 4.85 lb |
Information About HLA36100
The HLA36100 is part of Schneider Electric’s PowerPact HLA family, developed to deliver high interrupting capacity and dependable protection in demanding distribution environments. It is designed for three-phase systems operating up to 600 volts and supports secure I-Line plug-in mounting for efficient panelboard installation. The breaker uses thermal-magnetic trip technology to protect against overloads and short circuits under varying load conditions. Its construction is suited for use in power distribution equipment requiring consistent performance and compliance with electrical standards.
Key Features
- PowerPact HLA Series Design: Built for high-performance commercial and industrial power distribution.
- Thermal-Magnetic Protection: Provides long-time and instantaneous trip functionality.
- High Interrupting Rating: Rated up to 100 kA at 480 VAC for robust fault protection.
- Three-Pole Configuration: Supports three-phase electrical system applications.
- I-Line Plug-In Connection: Enables fast, secure installation in compatible panelboards.
- 100 Amp Current Rating: Suitable for medium-capacity distribution circuits.
- Rugged Molded Case Construction: Designed for long service life in demanding environments.
The HLA36100 delivers the reliability and precision required for safe, high-capacity circuit protection in power distribution systems.
