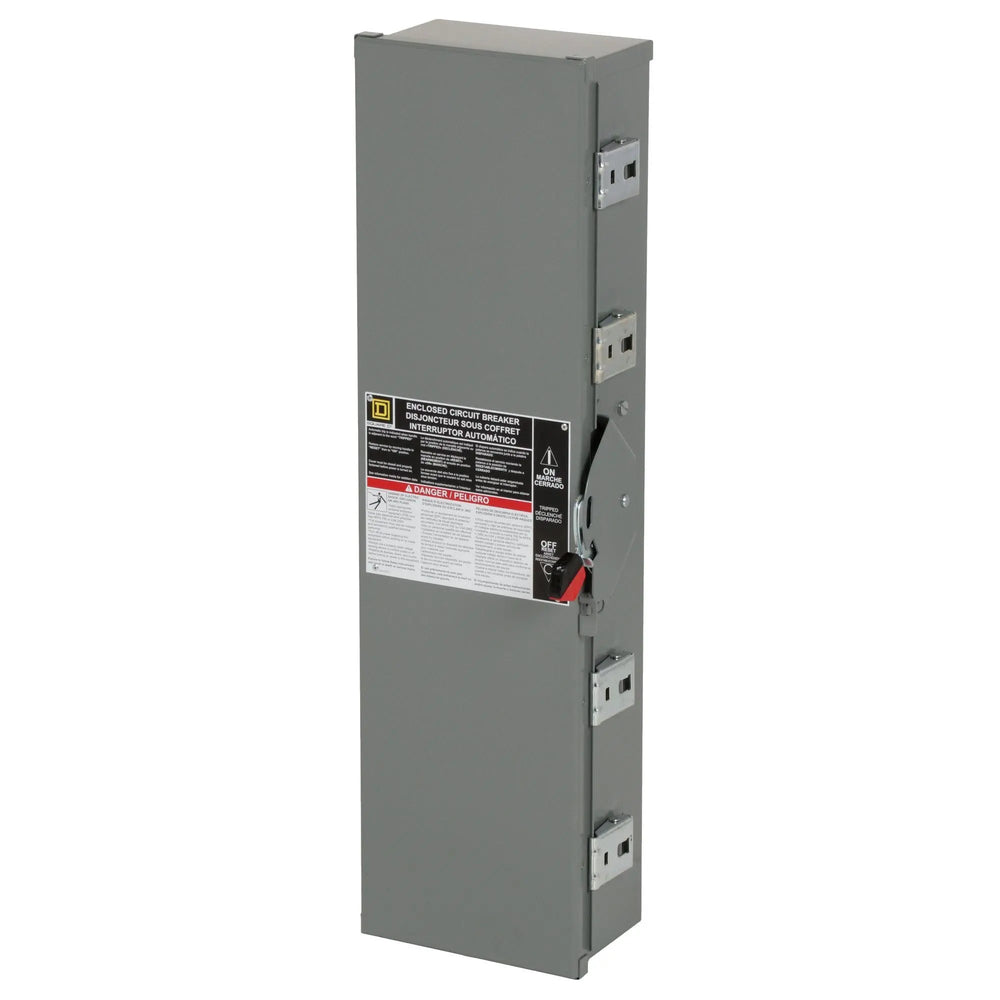

Square D J250AWK PowerPact H and J Circuit Breaker Enclosure for 15 to 250 Ampere Breakers
- Regular price
- $799.00
- Sale price
- $799.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: J250AWK
Description
The Square D J250AWK is a Schneider Electric PowerPact circuit breaker enclosure designed to house compatible H-frame and J-frame molded case circuit breakers rated from 15 to 250 amperes. Its steel construction and NEMA 3R, 5, and 12 enclosure ratings support surface-mounted circuit protection installations in indoor and outdoor commercial or industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Breaker |
| Part Number | J250AWK |
| Subcategory | Circuit Breaker Enclosure |
| Manufacturer | Schneider Electric |
| Product Family | PowerPact |
| Product Type | Circuit Breaker Enclosure |
| Compatible Breaker Frames | HDL, HGL, HJL, HLL, JDL, JGL, JJL, JLL |
| Compatible Current Range | 15 to 250 amperes |
| Compatible Pole Configuration | 2 or 3 poles |
| Enclosure Rating | NEMA 3R, 5, and 12 |
| Mounting Type | Surface Mount |
| Enclosure Material | Steel |
| Knockouts | Without Knockouts |
| Dimensions | 32.26 × 9.72 × 7.94 inches |
| Country of Origin | Mexico |
| Weight | 24.71 lbs |
Information About J250AWK
The J250AWK is a Square D PowerPact enclosure manufactured by Schneider Electric for compatible two-pole and three-pole H-frame and J-frame circuit breakers. Its steel cabinet measures approximately 32.26 inches high, 9.72 inches wide, and 7.94 inches deep and is supplied without knockouts. The enclosure accommodates HDL, HGL, HJL, HLL, JDL, JGL, JJL, and JLL breaker families covering ratings from 15 through 250 amperes. It provides NEMA 3R, 5, and 12 environmental protection and can be used as service equipment in the United States when the appropriate solid neutral assembly is installed.
Key Features:
- PowerPact Compatibility: Designed for Square D PowerPact H-frame and J-frame circuit breakers rated from 15 through 250 amperes.
- Two- or Three-Pole Support: Accommodates compatible circuit breakers with either two-pole or three-pole construction.
- Multiple Enclosure Ratings: Provides NEMA 3R, 5, and 12 protection for installations requiring environmental separation from energized equipment.
- Steel Construction: Uses a rigid steel enclosure suitable for commercial and industrial electrical distribution equipment.
- Surface Installation: Designed for surface mounting with a hinged enclosure cover for breaker access.
- Broad Frame Compatibility: Supports HDL, HGL, HJL, HLL, JDL, JGL, JJL, and JLL circuit breaker frames.
- Service Equipment Capability: Can be marked suitable for use as service equipment in the United States when the specified solid neutral assembly is installed.
- Separate Breaker Installation: J250AWK is the enclosure only; the compatible molded case circuit breaker is selected and installed separately.
The J250AWK delivers the reliability and precision required for enclosing and supporting compatible molded case circuit breakers in commercial and industrial electrical distribution systems.
