Square D KA36175 175 Ampere Three-Pole 600 Volt I-Line Molded Case Circuit Breaker
- Regular price
- $2,242.00
- Sale price
- $2,242.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: KA36175
Description

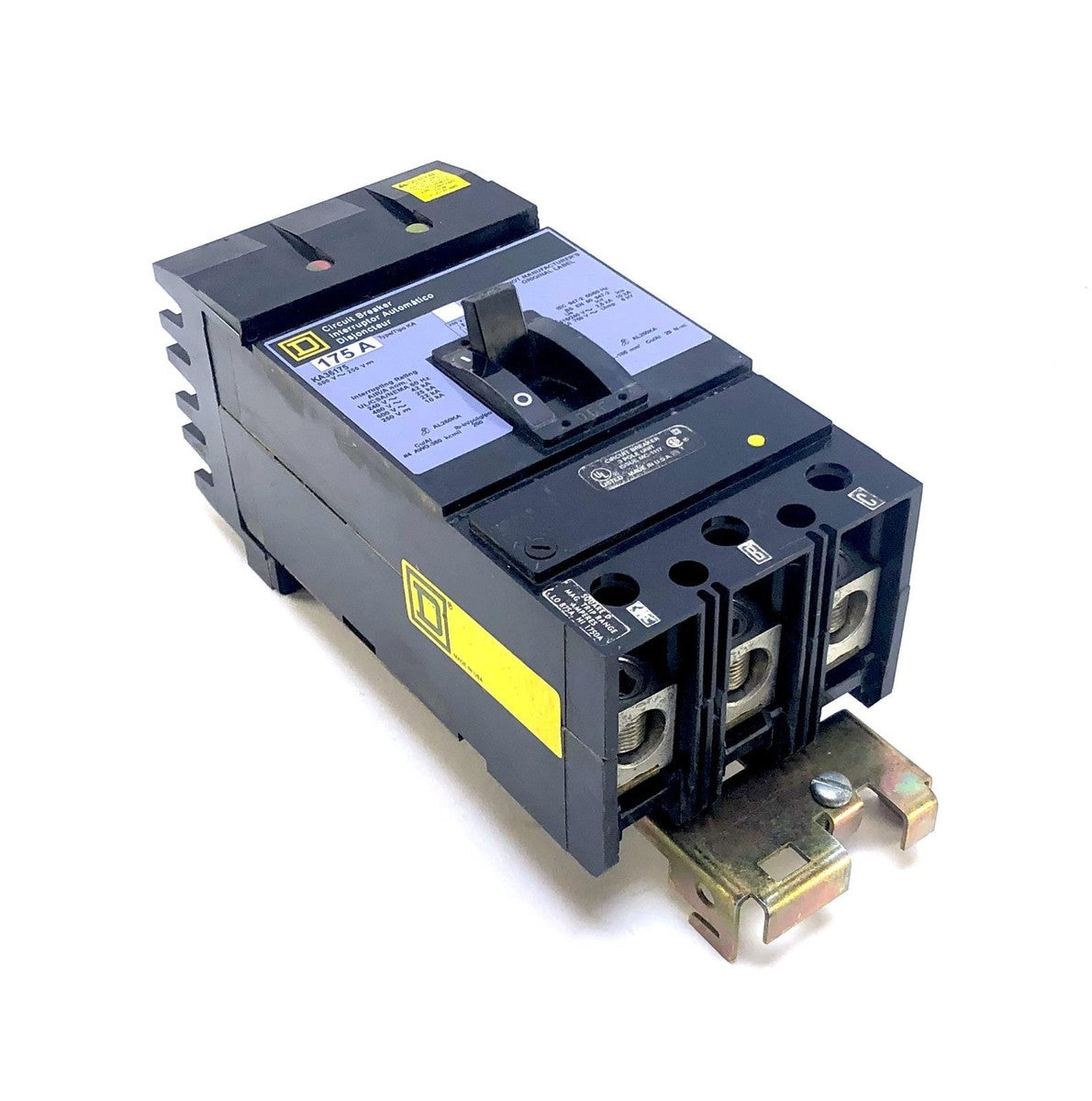

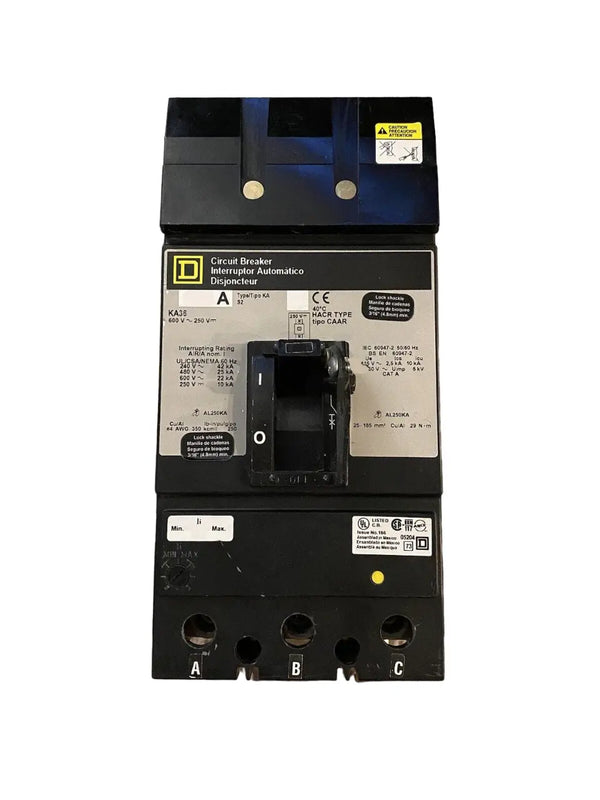

The Square D KA36175 is a three-pole molded case circuit breaker designed for overload and short-circuit protection in commercial and industrial power distribution systems. Rated at 175 amperes and up to 600 volts alternating current, it combines thermal-magnetic protection with an I-Line plug-in connection for installation in compatible Square D distribution equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Breaker |
| Part Number | KA36175 |
| Subcategory | Molded Case Circuit Breaker |
| Manufacturer | Schneider Electric |
| Product Family | I-Line |
| Frame Type | K Frame |
| Current Rating | 175 amperes |
| Number of Poles | 3 |
| Phase | Three Phase |
| Maximum Voltage Rating | 600 volts alternating current / 250 volts direct current |
| Interrupting Rating | 42,000 amperes at 240 volts; 25,000 amperes at 480 volts; 22,000 amperes at 600 volts alternating current |
| Direct-Current Interrupting Rating | 10,000 amperes at 250 volts direct current |
| Protection Type | Thermal-Magnetic |
| Trip Functions | Long-Time and Instantaneous |
| Mounting Type | I-Line Style Plug-In |
| Load Connection | Load-Side Lugs |
| Rated Current Temperature | 175 amperes at 40 degrees Celsius |
| Production Status | Obsolete / Discontinued by Manufacturer |
| Weight | 13.00 lbs |
Information About KA36175
The KA36175 is a Square D legacy K-frame circuit breaker from the I-Line family, designed for three-phase electrical distribution applications. Its non-interchangeable thermal-magnetic trip mechanism provides long-time protection against sustained overloads and instantaneous operation during high-current faults. The breaker connects directly to a compatible I-Line bus structure and incorporates load-side lugs, making it suitable for existing Square D I-Line panelboards and switchboards. Schneider Electric identifies the KA frame as obsolete and specifies JGA36175 as the suggested functional replacement for KA36175 in applicable installations.
Key Features:
- 175-Ampere Rating: Provides a 175-ampere current rating at 40 degrees Celsius for commercial and industrial distribution circuits.
- Three-Pole Configuration: Uses three poles for switching and protection of compatible three-phase electrical circuits.
- 600-Volt Rating: Supports alternating-current systems operating at voltages up to 600 volts.
- Thermal-Magnetic Protection: Uses a non-interchangeable thermal-magnetic trip mechanism for overload and short-circuit protection.
- Long-Time and Instantaneous Functions: Provides long-time response to sustained overloads and instantaneous response to high-current faults.
- Multiple Interrupting Ratings: Rated for 42,000 amperes at 240 volts, 25,000 amperes at 480 volts, and 22,000 amperes at 600 volts alternating current.
- I-Line Connection: Uses the Square D I-Line plug-in arrangement with load-side lugs for installation in compatible distribution equipment.
- Legacy Replacement Application: The KA frame is obsolete, and Schneider Electric identifies JGA36175 as the suggested replacement for KA36175.
The KA36175 delivers the reliability and precision required for overload and short-circuit protection in legacy commercial and industrial I-Line power distribution systems.
