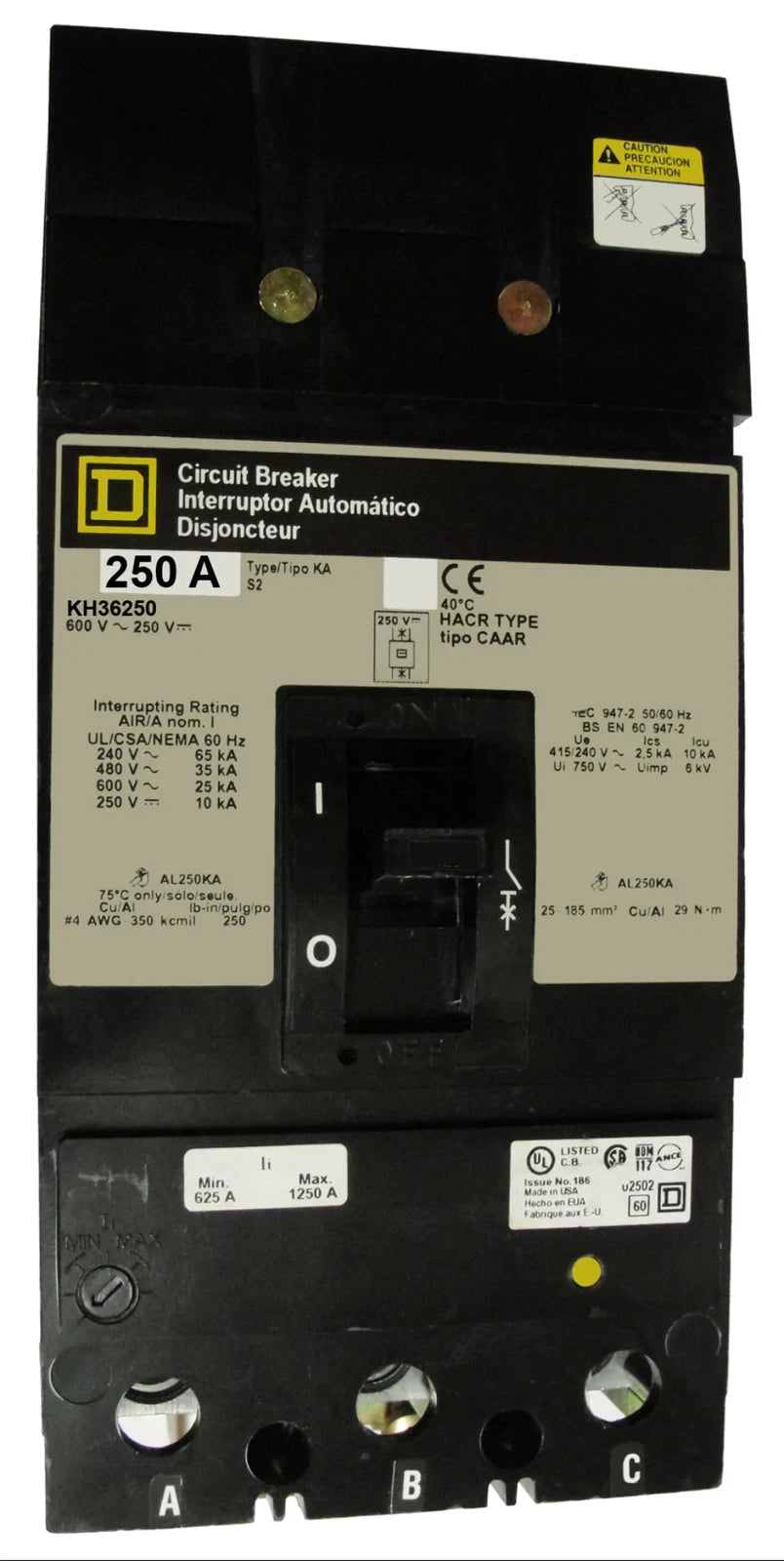

Square D KH36250 250A 3-Pole 600V I-Line Molded Case Circuit Breaker
- Regular price
- $4,269.00
- Sale price
- $4,269.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: KH36250
Description
The Square D KH36250 is a 250 Amp, 3-pole molded case circuit breaker designed for three-phase electrical systems. It provides reliable thermal-magnetic protection for circuits up to 600 VAC or 250 VDC. This I-Line style plug-in breaker is suitable for industrial and commercial panelboards and switchboards.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Breaker |
| Part Number | KH36250 |
| Subcategory | Molded Case Circuit Breaker |
| Series | KH |
| Poles | 3 |
| Current Rating | 250 Amp |
| Voltage Rating | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | Three-Phase |
| Trip Type | Thermal-Magnetic |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Mounting Type | I-Line Plug-In |
| Terminal Type | Lugs |
| Wire Range | 4 AWG – 350 kcmil |
| Interrupting Rating | 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC |
| Optional Features | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, NEMA AB 1, UL 489 |
| Approvals | CE, CSA, UL |
| Operating Temperature | 40°C |
| Construction Features | HACR Rated, High Interrupting Capacity |
| Weight | 12 lbs |
Information About KH36250
The KH36250 is part of Square D’s KH series of circuit breakers, built for high-current industrial applications. It features thermal-magnetic trip technology with long-time and instantaneous (LI) functions. The breaker supports wire sizes from 4 AWG to 350 kcmil for both aluminum and copper conductors. Optional features include shunt trip, auxiliary switch, undervoltage release, and alarm switch for flexible installation and enhanced safety.
Key Features:
- Series: KH Series molded case breaker for industrial use.
- Poles: 3-pole configuration for three-phase systems.
- Current Rating: 250 Amp continuous load capacity.
- Voltage Rating: 240VAC, 480VAC, 600VAC, 250VDC compatible.
- Mounting Style: I-Line plug-in for secure panelboard installation.
- Trip Mechanism: Thermal-magnetic with long-time and instantaneous (LI) protection.
- Interrupting Capacity: 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC, 10kA @ 250VDC.
- Wire Range: 4 AWG – 350 kcmil (Al/Cu).
- Optional Features: Shunt trip, auxiliary switch, undervoltage release, alarm switch.
The KH36250 delivers the reliability and precision required for high-current industrial circuit protection.
