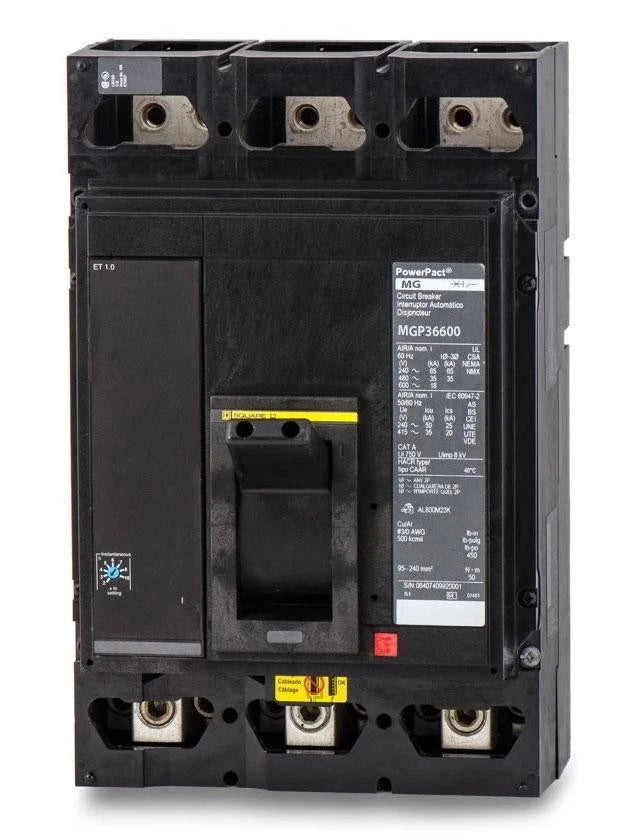

Square D MGP36600 PowerPact M-Frame 600A 3-Pole 600V Electronic Molded Case Circuit Breaker
- Regular price
- $6,699.00
- Sale price
- $6,699.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MGP36600
Description
The Square D MGP36600 is a heavy-duty, PowerPact M-frame circuit breaker designed to provide critical overcurrent and short-circuit protection in large-scale commercial electrical systems. This 600-amp, three-pole device utilizes an advanced electronic trip unit to continuously monitor electrical currents and safely interrupt power during severe fault conditions. By securing high-capacity distribution networks, the breaker prevents catastrophic equipment damage and maintains operational stability in industrial facilities.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D (Schneider Electric) |
| Category | Electrical Distribution |
| Part Number | MGP36600 |
| Subcategory | Circuit Breakers |
| Amperage Rating | 600 A |
| Voltage Rating | 600 VAC |
| Number of Poles | 3 |
| Frame Type | M-Frame |
| Trip Unit Type | Electronic |
| Interrupting Rating | 35 kA at 480 VAC |
| Mounting Style | Unit Mount |
| Phase Connection | ABC |
| Terminal Type | Lugs |
| Weight | 29.0 lbs |
Information About MGP36600
The MGP36600 is an integral safety component of the PowerPact M-Frame series, constructed with a resilient thermoset composite housing that safely contains high-energy arc flashes. It is equipped with a highly responsive electronic trip unit that delivers precise current sensing capabilities without the thermal susceptibility of traditional bimetallic breakers. Electrical technicians deploy this unit-mount breaker within main switchboards and heavy-duty distribution panels where a robust 35 kA interrupting capacity at 480 VAC is mandated. The architecture features standardized lug connections, facilitating secure physical integration directly into large-scale electrical busbar and cabling infrastructure.
Key Features:
● High Amperage Capacity: Safely manages continuous electrical loads up to 600 amps for large-scale industrial distribution and heavy machinery.
● Electronic Trip Unit: Integrates solid-state sensors to provide highly accurate overcurrent detection without ambient temperature interference.
● G-Class Interrupting Rating: Delivers a robust 35 kA interrupting capacity at 480 VAC to safely clear severe electrical faults instantly.
● Unit-Mount Configuration: Facilitates secure physical installation directly onto switchboard chassis and standardized panel assemblies.
● M-Frame Construction: Utilizes a heavy-duty, high-dielectric strength housing to withstand significant mechanical and thermal stress during tripping.
● Three-Pole Architecture: Engineered specifically to regulate and protect three-phase alternating current electrical infrastructure.
● Phase Isolation Barriers: Suppresses internal electrical arcing during a trip event to prevent dangerous phase-to-phase flashovers.
The MGP36600 delivers the reliability and precision required for secure power distribution and catastrophic fault prevention in heavy-duty commercial networks.
