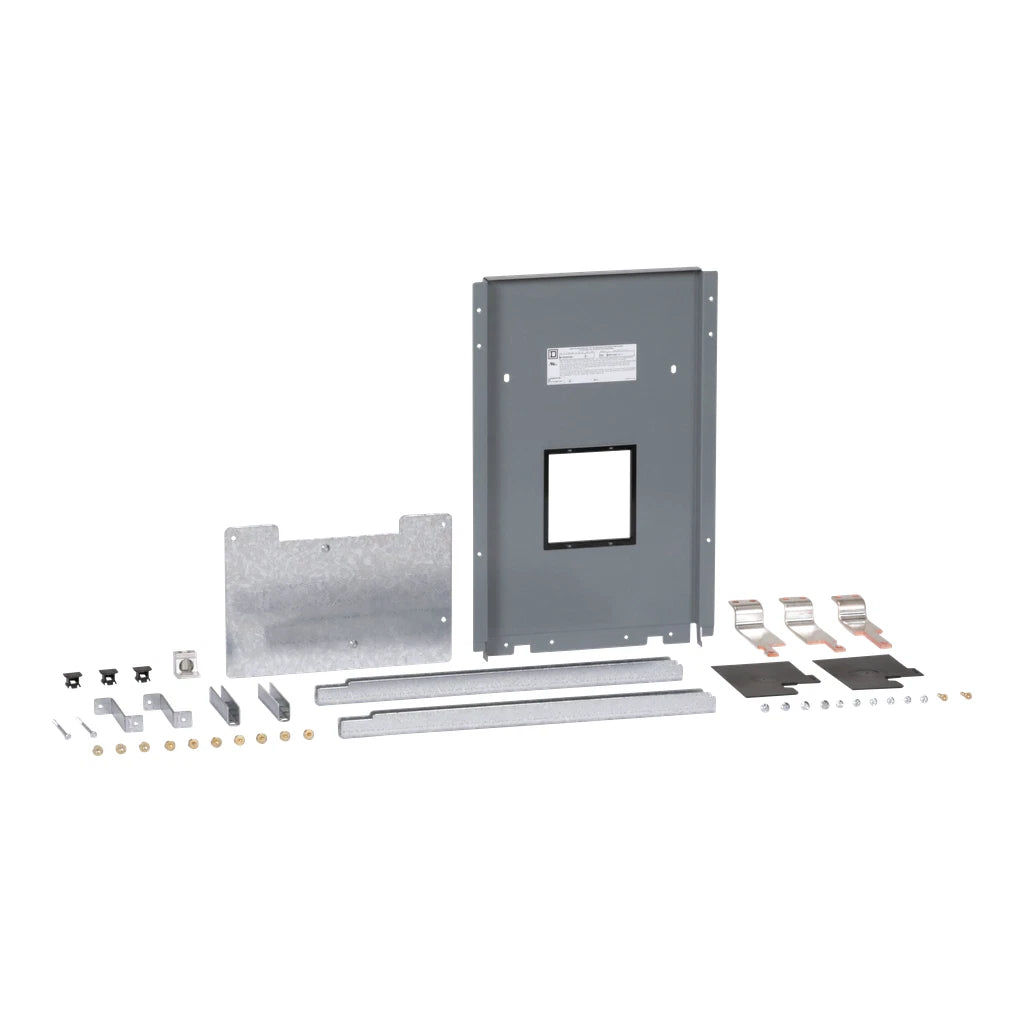

Square D NF250SFBH 250A H-Frame Panelboard Sub-Feed Lug Kit
- Regular price
- $1,394.00
- Sale price
- $1,394.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NF250SFBH
Description
The Square D NF250SFBH panelboard accessory is a 250A sub-feed breaker kit designed for use with H-frame circuit breaker systems in commercial and industrial electrical distribution applications. Engineered for reliable feeder integration, the kit includes mounting hardware, terminals, connectors, and protective components required for secure installation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Electrical Panel Accessories |
| Part Number | NF250SFBH |
| Subcategory | Sub-Feed Lug Kits |
| Product Type | Circuit Breaker Sub-Feed Lug Kit |
| Circuit Breaker Compatibility | H-Frame |
| Current Rating | 250A |
| Certification | cULus |
| Provided Equipment | Cover Plate, Mounting Plate, Support Brackets, Screw Set, Connectors, Rail Extensions, Rail Splices, Terminals, Lug, Terminal Shields |
| Tightening Torque | 24.8–30.09 lbf.in (2.8–3.4 N.m) |
| Package Height | 2.300 in |
| Package Width | 14.400 in |
| Package Length | 25.50 in |
| Weight | 11.00 lb |
Information About NF250SFBH
The NF250SFBH is a panelboard sub-feed lug kit manufactured by Square D for integration with H-frame circuit breaker configurations. Designed for 250A applications, the assembly includes support brackets, mounting plates, terminal hardware, rail extensions, and protective shields to simplify panelboard feeder installation. The kit is intended for use in commercial and industrial electrical distribution systems where additional downstream power feeds are required. Built to cULus certification standards, the accessory supports secure electrical termination and structured panelboard configuration management.
Key Features:
- 250A Sub-Feed Capacity: Designed for feeder distribution applications rated up to 250 amps.
- H-Frame Breaker Compatibility: Engineered for use with H-frame circuit breaker systems.
- Complete Installation Kit: Includes mounting hardware, terminals, connectors, and support accessories.
- Panelboard Expansion Support: Enables additional feeder integration within electrical distribution equipment.
- cULus Certified: Manufactured to comply with cULus safety and performance standards.
- Secure Terminal Connections: Provides dependable conductor termination and feeder stability.
- Rail Extension Components: Includes rail extensions and splices for structured installation support.
- Protective Shielding Included: Features terminal shields for enhanced electrical protection and safety.
The NF250SFBH delivers the reliability and precision required for panelboard feeder expansion and circuit breaker distribution applications.
